Z10 ZHAGA Socket Cable Version USA 0-10V Dimming Scheme Oad Regional Residential Lighting

Categories ZHAGA Socket
Brand Name: LongJoin
Model Number: JL-770L
Place of Origin: China
Price: negotiable
Packaging Details: Different packaging methods are adopted according to different modes of transport.
Payment Terms: Western Union,MoneyGram,T/T
Rated Voltage: 24VDC
Related Humidity: 96%
Wires: AWM 1015,18/20/22 AWG,105°C AWM 1007,18/20/22 AWG,80°C
IP: IP66
Certifications: RoHS,RU,CE,CB,UKCA,REACH
Real-world Scenarios: Next-Gen Smart Poles
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Z10 ZHAGA Socket Cable Version USA 0-10V Dimming Scheme Oad Regional Residential Lighting

Z10 ZHAGA Socket Cable Version USA 0-10V Dimming Scheme Oad Regional Residential Lighting
JL-770L Z10 Lock Socket Cable Version

Z10 standard JL-770L socket is designed for 0-10V dimming scheme, enabling the development of standardized equipment suitable for road lighting, regional lighting, or residential lighting applications.

Based on equipment arrangement, these devices can implement monitoring, communication, control, and other functions using 0-10V dimming technology.

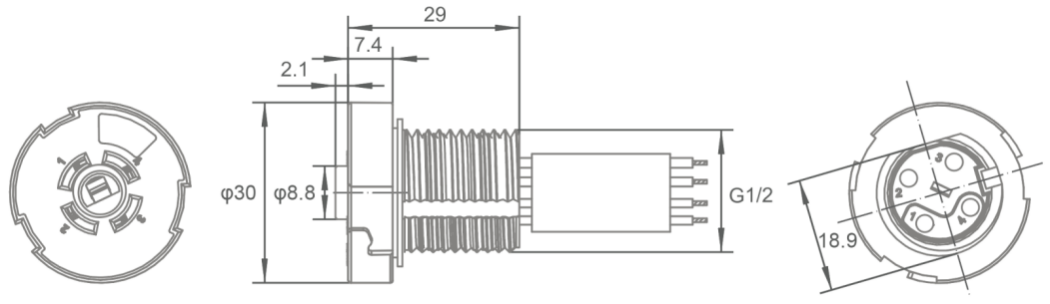

Product Dimensions
JL-770L Z10 Socket product dimensions diagram

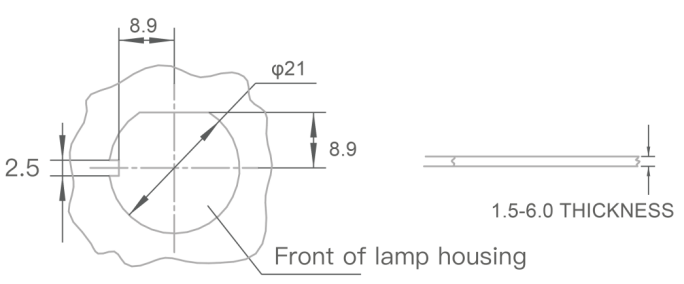

Drilling Plan
JL-770L Z10 Socket drilling plan diagram
Product Features
  • Cable configuration (red, yellow, purple, and black wires)
  • Compact size allowing greater flexibility in luminaire design
  • Advanced sealing to achieve IP66 rating with no mounting screws
  • Scalable solution compatible with Ø40mm photocell and Ø80mm LEX-M in central management systems using the same connection interface
  • Flexible mounting positions: upwards, downwards, and sideways facing
  • Integrated single gasket that seals to both luminaire and module, minimizing assembly time
Specifications
Model No.JL-770L
Rated Voltage24VDC
Power Consumption1.5A MAX
Relative Humidity96%
Ambient Temperature-40°C ~ +70°C
WiresAWM 1015, 18/20/22 AWG, 105°C AWM 1007, 18/20/22 AWG, 80°C
IP RatingIP66
CertificationsProduct certification badges

*Conductor specification: #20 conductor has UL certification

Frequently Asked Questions
Q1: What is a Z10 ZHAGA Socket Cable Version?
A: It is a combined interface socket compatible with both Z10 and ZHAGA standards, equipped with an external cable, designed for the U.S. market, and supports 0-10V dimming for lighting control.
Q2: What are the benefits of the cable version design?
A: The cable structure provides flexible wiring, longer connection distance, strong adaptability to different lamp structures, and convenient on-site installation and replacement.
Q3: What is the advantage of using 0-10V dimming scheme?
A: 0-10V is a stable, widely compatible, flicker-free dimming method, easy to deploy, and highly suitable for outdoor and residential lighting systems.
Q4: Why combine Z10 and ZHAGA socket standards?
A: It meets both U.S. standard Z10 interface habits and international ZHAGA modular specifications, improving compatibility and interchangeability of sensors and control modules.
Q5: In which scenarios is this socket mainly applied?
A: It is widely used in road lighting, regional public lighting, residential community lighting, courtyard lighting and other outdoor lighting projects in the U.S. market.
