4K60 Video Wall Controller with 6 HDMI Outputs and RS232 Control for Multi-Screen Display

4K60 Video Wall Controller with 6 HDMI Outputs and RS232 Control for Multi-Screen Display

4K60 Video Wall Controller with 6 HDMI Outputs and RS232 Control for Multi-Screen Display
4K60 Video Wall Controller with 6 HDMI Outputs and RS232 Control for Multi-Screen Display
Categories Video Wall Controller
Brand Name: Great Prosperity
Place of Origin: Guangdong, China
MOQ: 1
Price: Contact us
Model Number: BIT-VWC-406R
Certification: CE,HDMI,HDCP,RoHS,FCC
Payment Terms: T/T,PayPal
Supply Ability: 1000
Delivery Time: 5-8 days
Packaging Details: 37*24*11

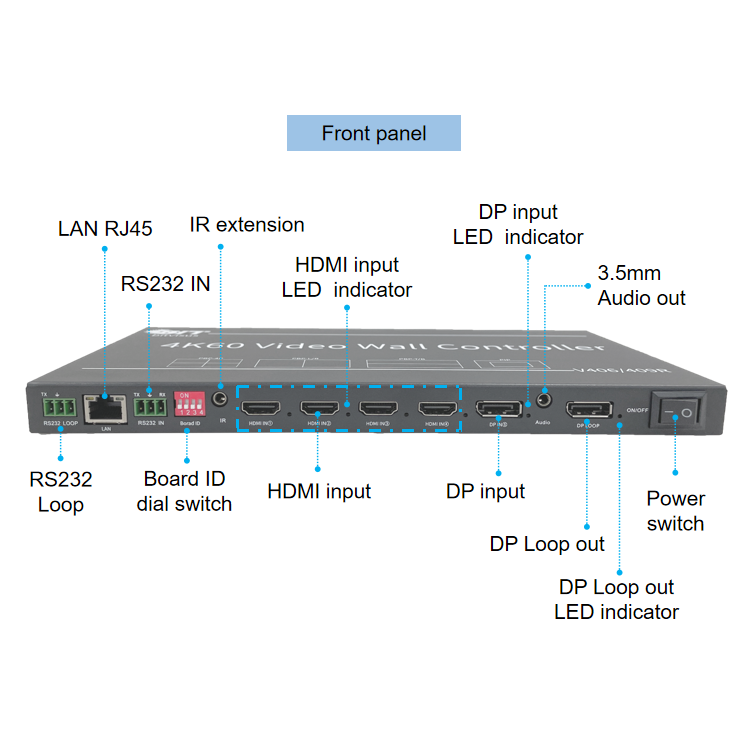

Input interface: 3 x HDMI1.4, 1 x HDMI2.0, 1 x DP1.2
Output interface: 6 x HDMI1.3 (≤ 15 m), 1 x DP1.2 loop out
Color depth: 24bit, RGB444
Audio interface: 3.5 mm
Control method: Infrared remote control, RS232, PC host computer
Stitching mode: Splicing mode within 6 screens
Power supply: DC 12V 2A
Size: 270mm x 122.5mm x 20.5mm
Input resolution: 3840x2160@60Hz
Output resolution: 1920x1080@60Hz
Power consumption: 12W
Operating temperature: 0℃-50℃
Max pixel FPS: 600MHz (input), 165MHz (output)
Material: Metal
HDMI output: HDMI 1.3 x 6
Contact Now
Company Info.
Shenzhen Bitvisus Technology Limited
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

4K60 Video Wall Controller with 6 HDMI Outputs and RS232 Control for Multi-Screen Display

Product Description
4K HDMI video wall controller switcher features

BIT-VWC-406R is an ultra HD Rotary Splicer by Shenzhen Bitvisus Technology Limited. Support 4 channels HDMI input (1 channel 4K@60Hz,3 channels 4K@30Hz), 1 channel DP input (4K@60Hz), 6 channels output HDMI (1080p@60Hz), 1 channel DP loop out.
Product name
BIT-VWC-406R
Control method
Remote control, RS232 serial port (can be looped out)
Input Max. Pixel FPS
600MHz
Factory default resolution
HDMI：3840*2160@60Hz
DP：3840*2160@60Hz
Input supports the highest resolution
3840*2160@60Hz
Operating temperature
0℃-50℃
DP signal
Display port 1.2*1
Power consumption
12W
HDMI signal
HDMI 2.0*1, HDMI 1.4 *3
Power supply
12V@2A AC-DC
Output Max. Pixel FPS
165MHz
Size
270mm * 122.5mm * 20.5mm
Output single screen support resolution
1920*1080@60Hz
Annex
One DP Cable
One 12V@2A AC-DC
One remote control

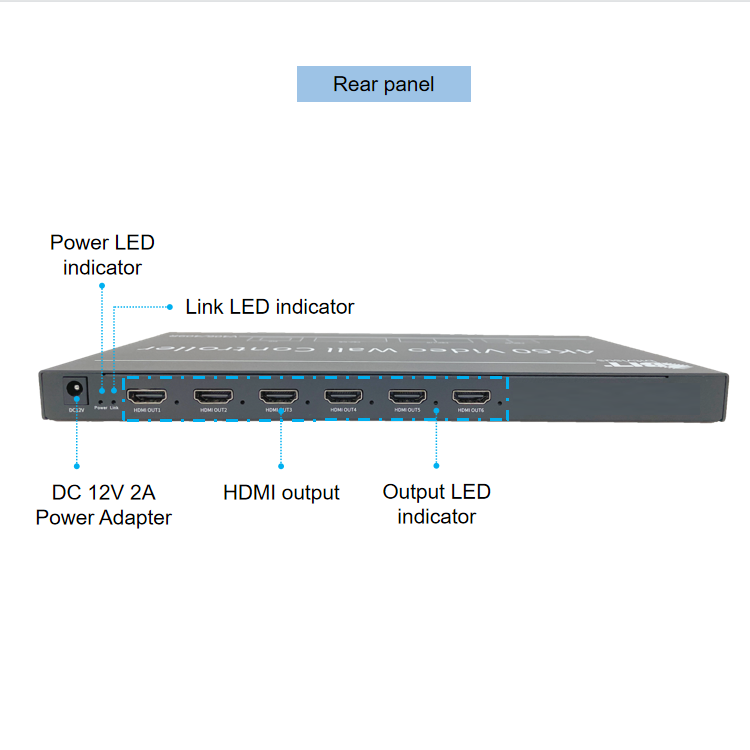

HDMI output interface
HDMI 1.3 * 6
Power Supply
12V@2A AC-DC
Audio output
3.5mm Headphone
Warranty
One year

Client Cases

Use 1 BIT-VWC-406R unit for 3*3: BIT-VWC-406R supports a single screen up to 1280*720 Customer requirements: the whole frequency can be played when the whole screen can be made to stitch the whole screen, and can support the first line rotation 180 degrees.
Support Multiple Switch Method

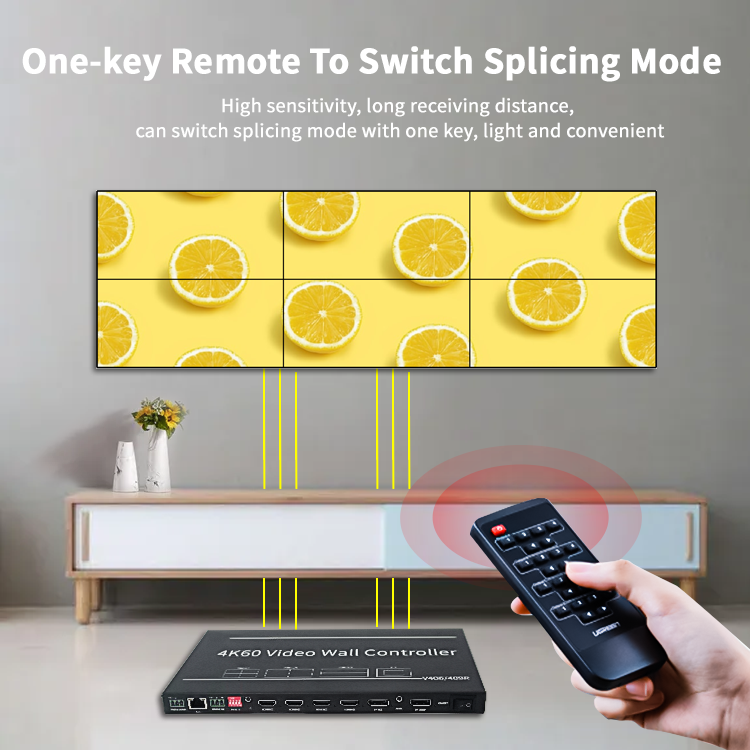

IR Control

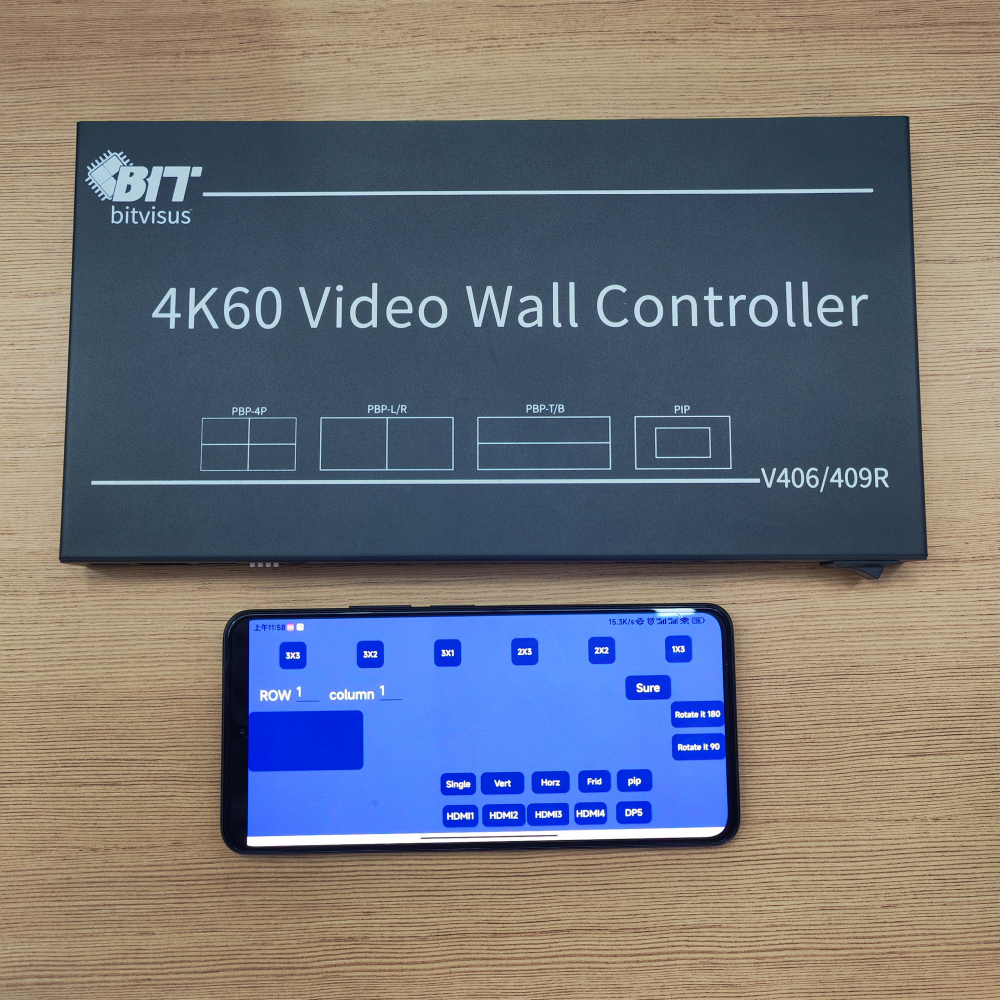

Software Control
RS232 Control

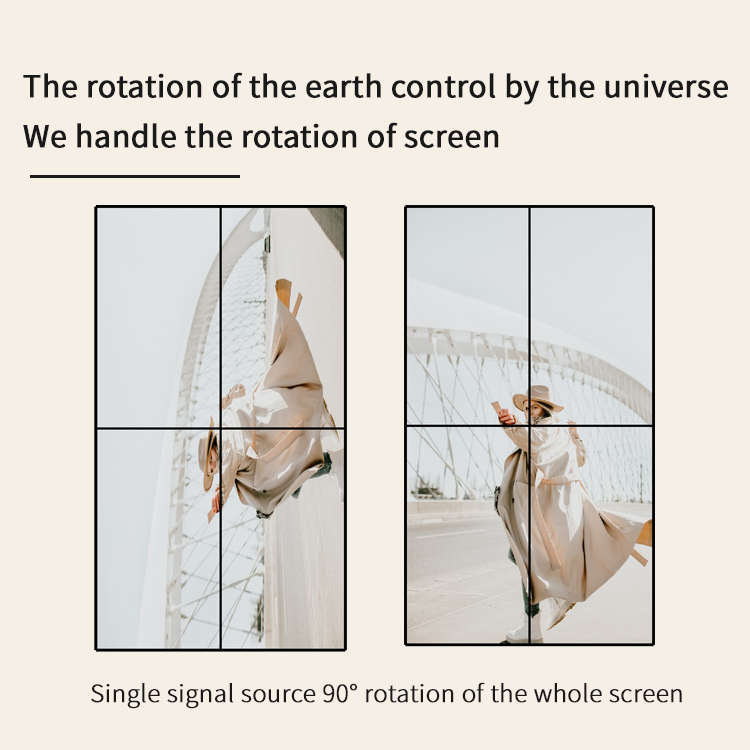

The rotation of the earth control by the universe
We handle the rotation of screen
Single signal source 90° rotation of the whole screen

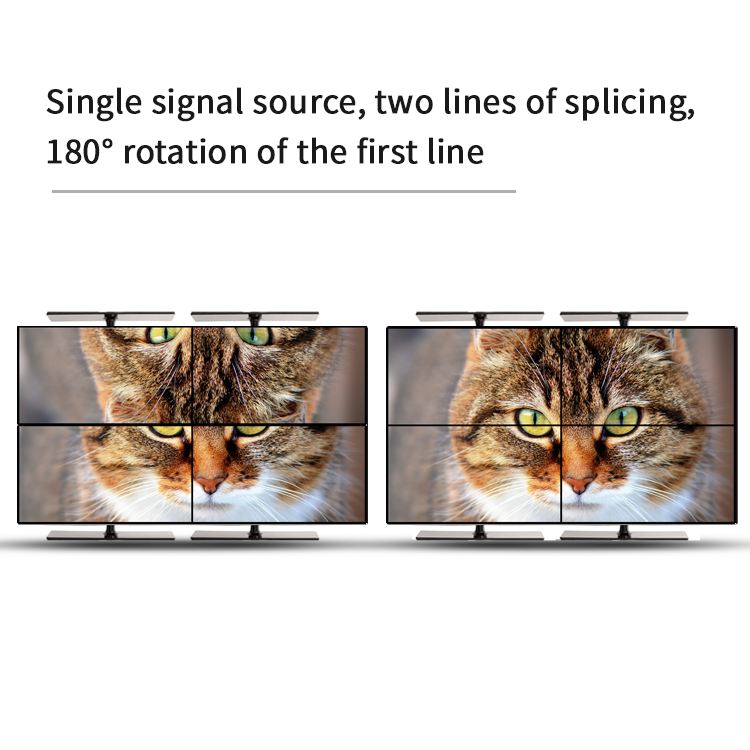

Single signal source，two screen of splicing
180° rotation of the first screen
Rich and variety display modes，don't let the screen limit your imagination
A single device can be cascaded and looped out to a maximum of 135 screens

Product features

● The input supports full screen rotation of 90 °(only supported in single-picture mode), and the output supports 180 ° rotation of the first line (only supported when the stitching mode is two lines).
● No stretching, no deformation, no need to compress the
input source, the picture is clear.
● Support single display mode (1x1).
● Support infrared Remote control, serial RS232 control, Software control.
● Low power consumption, energy saving and environmental protection. Conductive heat dissipation is used internally.
● without any external heat dissipation measures, and the reliability is extremely high.

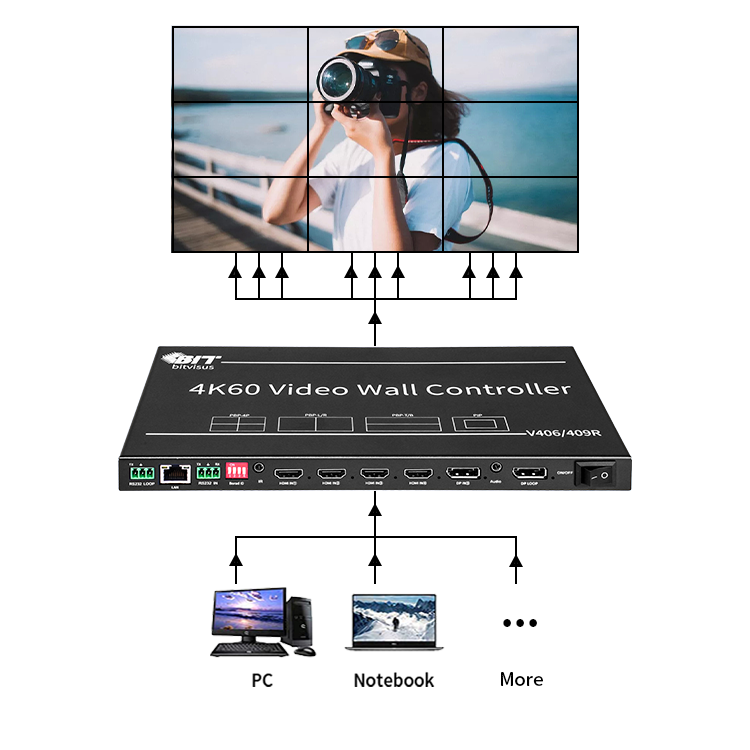

● Support Computers, Android boxs, game consoles and other devices as input source.
● Using 40nm high-end programmable FPGA chip, full hardware real-time processing architecture,
ultra-fast processing speed without delay.
Application Scenarios
Customer customized resolution EDID reference table
Support splicing Mode
Full screen input resolution
Full screen output resolution
Single screen resolution
1x2
3840x1080@30Hz
3840x1080@60HZ
1920x1080@60HZ
1x3
3840x720@30HZ
5760x1080@60HZ
1920x1080@60HZ
1x4
4096x576@30HZ
7680x1080@60HZ
1920x1080@60HZ
1x5
4080x459@30HZ
9600x1080@30HZ
1920x1080@60HZ
1x6
4032x378@30HZ
11520x1080@60HZ
1920x1080@60HZ
6x1
1184x3996@30HZ
1920x6480@60HZ
1920x1080@60HZ
5x1
1408x3960@30HZ
1920x5400@60HZ
1920x1080@60HZ
4x1
1776x3996@30HZ
1920x4320@60HZ
1920x1080@60HZ
3x1
1920x3240@30HZ
1920x3240@60HZ
1920x1080@60HZ
2x1
1920x2160@30HZ
1920x2160@60HZ
1920x1080@60HZ
2x2
3840x2160@30HZ
3840x2160@60HZ
1920x1080@60HZ
2x3
3840x1440@30HZ
5760x2160@60HZ
1920x1080@60HZ
3x2
2816x2376@30HZ
3840x3240@60HZ
1920x1080@60HZ
Real Reviews
Company Profile
Exhibition & Forum
FAQ
BIT-VWC-406R FAQ
Q1. Does it support RS232 control? A: support. Q2. What power supply specifications that can be offered? A: American, British, European, South African and Chinese specifications, etc. Q3. Both input and output support 4K? A: The 4th HDMI input port and 5th DP input port support 4K@60, output single port support 1080P@60H, the output supports the whole screen 4K60Hz. Q4. How far does the wiring distance support? A: The input supports HDMI up to 3 meters, and the output supports HDMI up to 10 meters. Q5. How many input sources can be supported display at the same time? A: It can support 4 input sources display on the video wall at the same time.
Bitvisus FAQ
Why Choose Bitvisus ？
1.We have our own warehouse, which can ensure us of shipping out orders within 48 hours after payment
(weekends and holidays excluded).
2. OEM/ODM offered for our customers.
3.We are one of leading Manufacturer in this field.
How to order ？
1. Pls send email or chat with us via TM, WHATS UP, SKYPE, and let us know your Requirements on order details.
2.We will reply you with proforma invoice based on your order request.
3.Kindly check the PI, and if everything is ok, the goods will be delivered to you asap after we got your payment.
Warranty & After-sale
1.Our products come with 12 months warranty and life-time service support.
2.You can return or exchange your items in any of the following Circumstances; Faulty items, Damaged items or wrong models.
Shipment & payment
1.T/T, Visa, PayPal, Western Union, L/C available.
2.DHL, UPS, EMS, FedEx, Air freight, Sea freight supported.
