| Categories | Razor Wire Machine |
|---|---|
| Brand Name: | APBWR |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1 UNIT |
| Payment Terms: | L/C,T/T |
| Delivery Time: | 14-21Days |
| Price: | $5000-50000 |
| Supply Ability: | 1000+ /year |
| Packaging Details: | Pallets or wooden crates as per customer's requirements. |

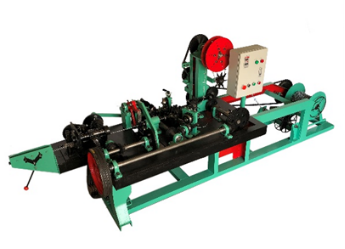

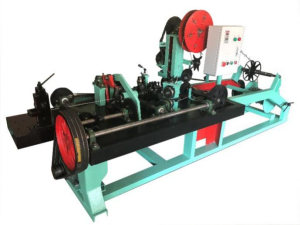

| Product Name: | Barbed Wire Machine |
| Keyword: | Auto Operate Double Strand Barbed Wire Machine |
| Color: | Request |
| Motor Power: | 2.2kw |
| Voltage: | 380V |
| Boundary dimension: | 3000*1100*1300 |
| Weight: | 750KG |
| Main wire diameter: | 1.6-3.0mm |
| Company Info. |
| Anping Weaver Wire Mesh Equipment Manufacturing Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
| CS-A Ordinary Double-Strand Tightening Machine | ||||
TypeA |
| |||
| ||||
Motor power(kw) | 3 | |||
Voltage(V) | 380 | |||
Boudary dimension(mm) | Main :2000*1200*1400 Auxiliary:1700*500*800 | |||
Weight(kg) | 1000 | |||
Main wire diameter(mm) | 1.6-3.0 | |||
Length of spicules(mm) | 1.6-3.0 | |||
Tensile strength of wire mesh(N/mm²) | 400—600 | |||
Distance between thorns(inch) | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) |
Output(m/h) | 740 | 990 | 1235 | 1485 |
Output(kg/h) | 120(For example, the main wire is 2.8mm in diameter and the barbed wire is 2.2mm in diameter.) | |||
TypeB | CS-B Single-Thread Machine | |||
| ||||
| ||||
Motor power (kw) | 2.2 | |||
Voltage(V) | 380 | |||
boundary dimention(mm) | 2700*1100*1300 | |||
Weight(kg) | 750 | |||
Stocking diameter(mm) | 1.3-3.2 | |||
Length of spicules(mm) | 1.3-3.2 | |||
Tensile strength of wire mesh(N/mm²) | 400—600 | |||
Spacing between thorns(inch) | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) |
Output(m/h) | 540 | 720 | 900 | 1080 |
Output(kg/h) | 60(For example, the main wire is 2.8mm in diameter and the barbed wire is 2.2mm in diameter.) | |||
TypeC | CS-C Double-Threaded Forward-Backward Wrench Machine | |
| ||
| ||
Motor power(kw) | 2.2 | |
Voltage(V) | 380 | |
Boundary dimension(mm) | 3000*1100*1300 | |
Weight (kg) | 750 | |
Stocking diameter(mm) | 1.3-3.0 | |
Length of spicules(mm) | 1.3-3.0 | |
Tensile strength of wire mesh(N/mm²) | 1100—1200(1.6 - 1.8 mm Ø) 800—900(1.8—2.6mmØ) 400—500(2.7—2.8mmØ) | |
Spacing between thorns(inch) | 4’(10cm) | 5’(12.5cm) |
Output(m/h) | 720 | 900 |
Output(kg/h) | 30(Main wire 1.6mm, barbed wire 1.6mm as an example) | |
Mechanical free-issue of consumable spare parts
| Pictures | Bearing | Quantity | |
Standard silk winding frame |
| 100KG | 4 |
| Feeding head |
| 2 | |
Shift fork |
| 2 | |
Feeding rod |
| 1 | |
Groove cutter |
| 2 | |
Counter |
| 1 |
|
