FTTH-2C Optical Cable Steel wire LSZH

Categories Fiber Optic Cable
Brand Name: DF/OEM/Nuetral
Model Number: TK-PC-48F-SC-OS2-50M
Certification: CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin: China, Shenzhen
MOQ: negotiable
Price: negotiable denpend on QTY
Payment Terms: Western Union, T/T, MoneyGram/Paypal
Supply Ability: 1000PCS/Day
Delivery Time: 5-9 working days depends on QTY
Packaging Details: Blister box+Carton
Product Name: FTTH-2C Optical Cable
Fiber count: 2
Optical fiber Diameter(±1µm): 125μm
Optical fiber Coating diameter(±5µm): 250μm
Strength member Diameter: 1.2mm(7*0.4mm Stranded galvanized steel wire)
Core reinforce: Steel wire
Supplementar: Aramid yarn
Sheath Sheath material: LSZH
Color: Black
Outside diameter(mm): 3.5*6.5
Cable weight (kg/km): 23
Operation Temperature: -20℃~70℃
Fiber Brand: Corning, YOFC, OFS, Draka
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

FTTH-2C Optical Cable Steel wire LSZH

Outdoor FTTH-2C Optical Cable Steel wire LSZH
FTTH Cable directly connected to their homes, their bandwidth, wavelength and transmission technology type are not restricted. The optical fiber unit id positioned in the center. A steel wire as the additional strength member is also applied ,then, the cable is completed with a black LSZH( low-smoke, halogen-free, flame retardant) sheath.
Product Applications
  • Good mechanical and enviromental characteristic;
  • Anti-UV charateristics meet the requirements of relevant standards;
  • The mechanical charateristics meet the requirements of relevant standards;
  • Soft ,flexiable ,easy to lay and splice,and with big capacity data transmission;
  • Meet various requirements of market and clients
Product Features
  • Adopt a tight sleeve optical fiber for easy stripping;
  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
  • The advantages of external protective materials such as corrosion resistance, waterproofing, ultraviolet protection, flame retardant, environmental protection, etc.
  • Meet various requirements of market and clients

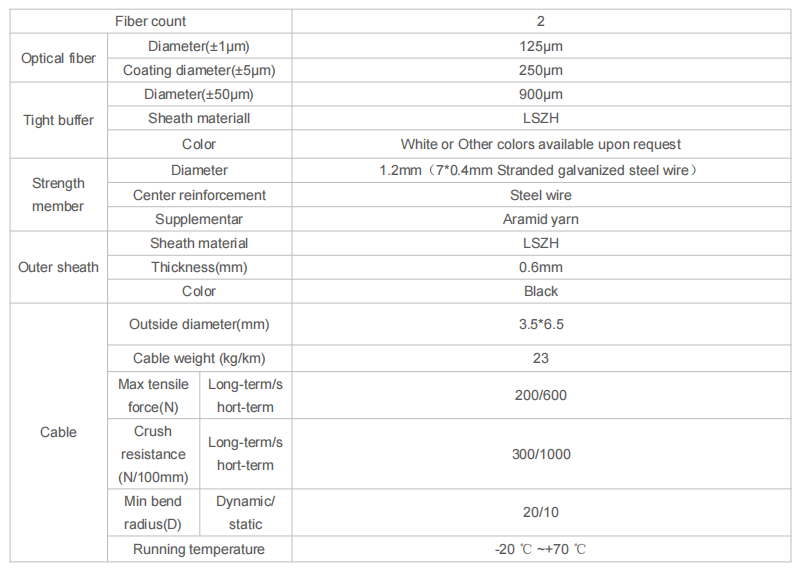

Optical Parameter and Properties
Product Structure
Other Requirements
  • Length of production optical cable: 2000M
  • Optical cable outer sheath printing specifications, such as: OPTICAL FIBER CABLE FTTH-2C 3.5X6.5 LSZH MM/YY 00000M
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time! TAKFLY Fiber Optic Pigtail Product
