Name: Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine
Brand: Fuchuan
Price: 1 USD

Home > Printing Machine >

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine

Categories	Double Twist Bunching Machine
Brand Name:	Fuchuan
Model Number:	FC-650B
Certification:	CE
Place of Origin:	China
MOQ:	1set
Price:	Negotiable
Payment Terms:	T/T,
Supply Ability:	200SETS/MONTH
Delivery Time:	30days
Packaging Details:	simply packed
Bunching capacity:	2 to 19 wires
Weight:	1000~3000kg
Type:	Double Twist Bunching Machine
Machinetype:	Twisting Machine
Material:	Copper, Aluminum
Single Core Wire:	0.8mm-3.0mm
Power:	7.5kw
Control Type:	motor control
Application:	Wire Bunching and Twisting
Controlsystem:	PLC Control with Touch Screen
Motortype:	AC Servo Motor
Capacity:	High Capacity
Single Wire Dia.:	0.15-1.04

Contact Now

Add to Cart

Company Info.

Kunshan Fuchuan Electrical and Mechanical Co.,ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Hot Sale 650 Automatic Electric Wire Cable Bunching Stranding Twisting Making Machine

Product Description

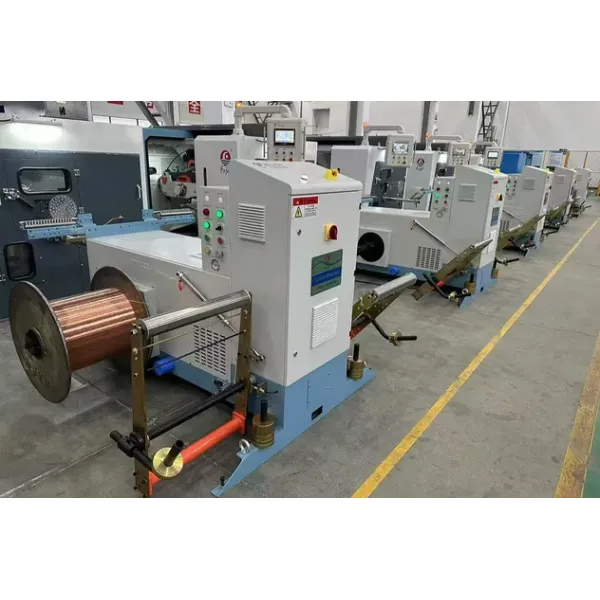

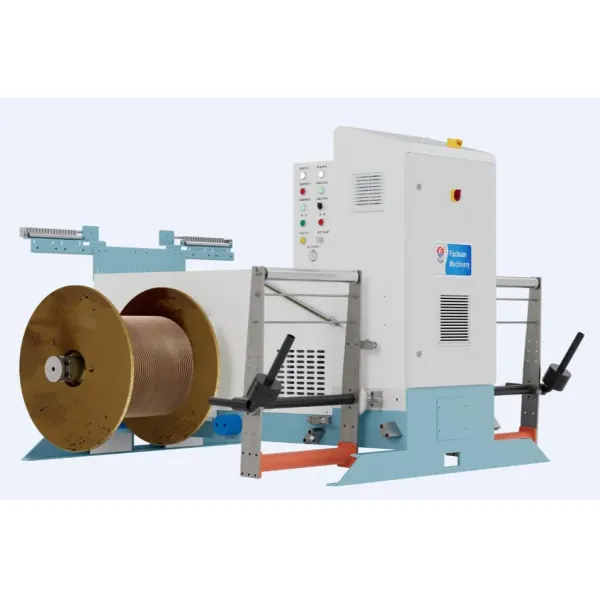

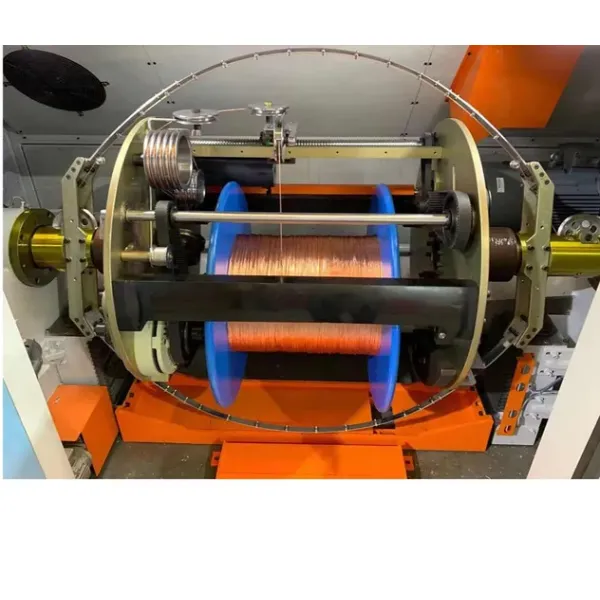

Normal Wire High Speed Bunching Machine and Double Twist Bunching Machine

Our high-performance bunching machine is engineered for durability, efficiency in cable & wire producing projects. Designed with advanced technology and robust materials, this bunching machine ensures high speed, smooth operation. It is suitable for stranding conductors such as bare copper wire, tinned wire, silver-plated wire, and enameled wire with seven or more strands, and core wire double twist.

Specification

Features

1. Ethernet port is reserved for IoT access, which can display the speed, stranding details, line speed, equipment maintenance, etc.

2. PLC control+Magnetic powder clutch, perfectly ensure the constant tension from empty to full spool.

3. With bearing type polished rod traversing, traversing width and lay length is adjustable.

4. Suitable for stranding of extremely fine conductors (alloy wire, tin-plated wire, silver-plated wire, enameled wire, etc. with seven or more strands) in aerospace, medical devices, mobile phones, laptops, etc.

Technical Specifications

(Custom configurations available upon request.)

Model	FC-500B	FC-650B	FC-650B pro	FC-800B	FC-651D
Wire dia. (mm)	Φ0.08-0.45	Φ0.15-1.04	Φ0.20-1.70	Φ0.20-1.70	Φ0.16-1.04
Cross section (mm2 )	0.05-2.5	0.35-6.0	1.0-16.0	1.0-16.0	0.4-6.0
Core wire dia. (mm)	Φ0.5-1.5	Φ0.8-3.0	Φ1.5-4.0	Φ1.5-4.0	N/A
Overall Diameter of Stranded Core	Φ1.0-3.0	Φ1.6-6.0	Φ3.0-8.0	Φ3.0-8.0	N/A
Pitch (mm)	6.3-52.3	11.6-100	20-160	23-160	10-100
Spool size (mm)	Φ400-500	Φ500-630	Φ500-630	Φ630-800	Φ500-630
Max speed (rpm)	3000	2000	1600	1600	2000
Stranding direction	S/Z	S/Z	S/Z	S/Z	S/Z
Main motor power	5.5KW	7.5KW	11KW	15KW	7.5KW
Tension control	PLC+Magnetic powder clutch
Protection	Automatic brake on wire break by electromagnetic brake

Drawings & Dimensions

Detailed CAD drawings and dimensional diagrams are available for download here or upon inquiry. Our engineering team can provide tailored designs to meet specific project requirements.

After Sales Service

Standard Warranty: 24 months.
Extended Warranty: Optional coverage up to 36 months.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation/maintenance training.

Company Profile

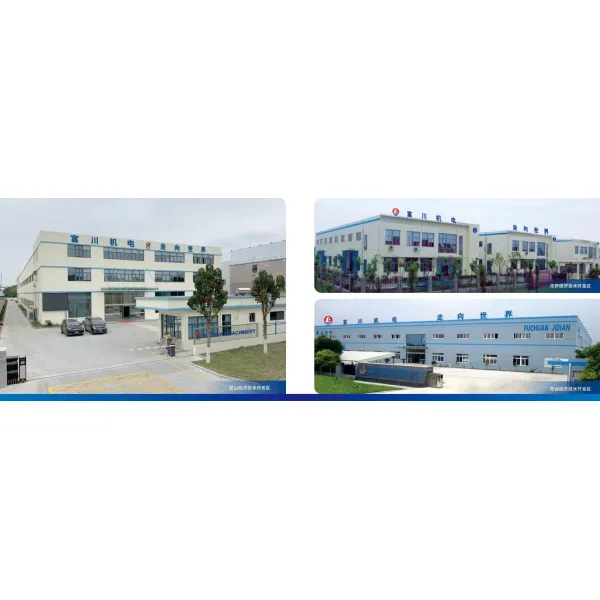

Kunshan Fuchuan Electrical & Mechanical Co., Ltd.

Kunshan Fuchuan Electrical & Mechanical Co., Ltd. is a leading Chinese manufacturer of cable & wire machinery with over 20 years of expertise. Certified with ISO 9001, CE, and GOST, we export to 100+ countries, offering reliable machinery backed by R&D innovation and strict quality control.

Why Choose Us?

Other Products

OEM/ODM capabilities
Competitive pricing & bulk discounts
Fast shipping & customs clearance support
Turnkey project solutions

Stranding machine

Back-twist bunching machine
Signle twist bunching machine

Torsion-free cable-laying machine

Pay-off machine

Extruding machine

Rewinding machine

Certifications

Fuchuan has obtained dozens of certifications and certificates, and hundreds of patents.

With ISO9001

FAQ

Q: What's the lead time for orders?
A: Standard models ship in 15–30 days; customized units require 60–90 days.

Q: Do you provide after-sales service overseas?
A: Yes, we provide online service and if the customer needed, we can send our engineer to customer's site.

Q: Can I request a customized machine?
A: Absolutely! We accept OEM and ODM.

Q: What documents do you provide for export?
A: Full export package (Commercial Invoice, Packing List, Bill of Lading, COC, etc.).

Q: How do I place an order?
A: Contact us via email/phone for a quote, then confirm with a PO.
