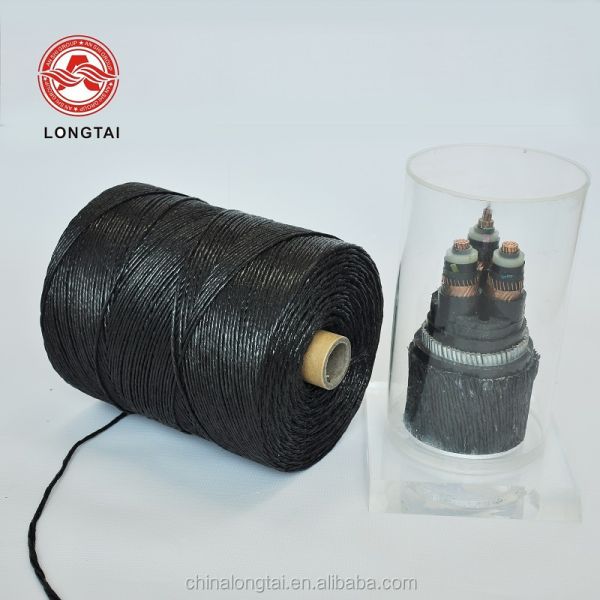

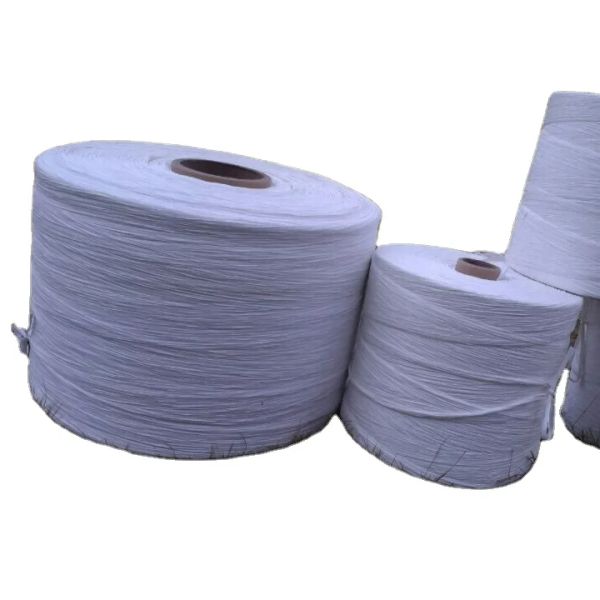

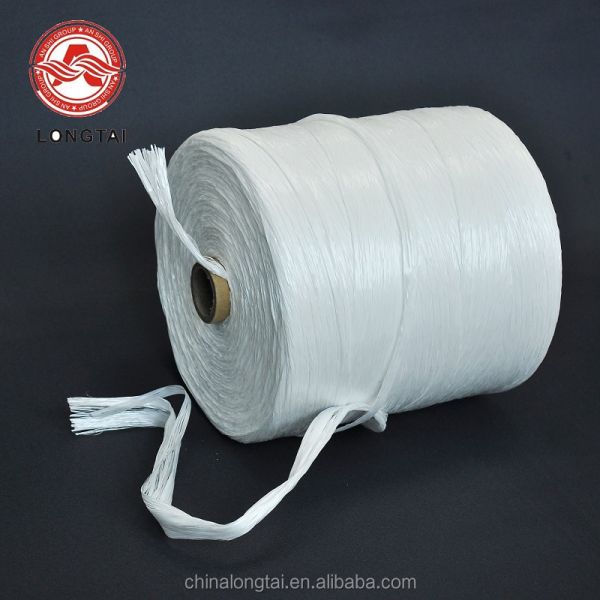

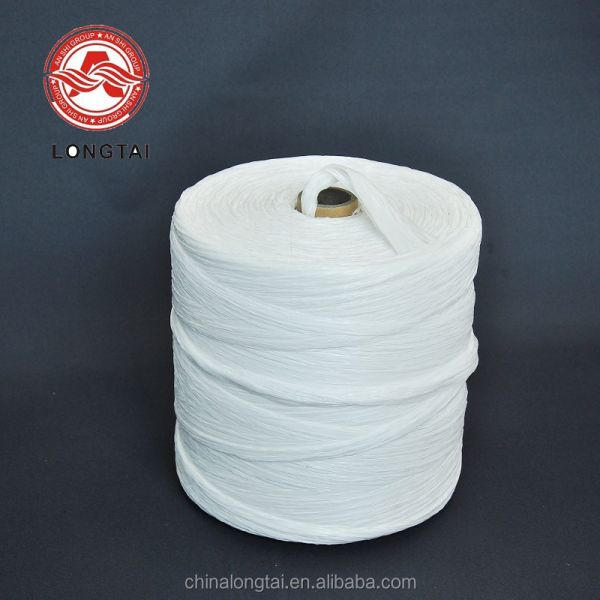

China Best pp Filler Yarn for Wire Cable Filling

al-pet tape/pp foamed tape/pp filler cable material

1. 100% PP filler yarn

Linear Density	12000D	18000D	22000D	28000D	33000D	48000D	60000D	70000D	90000D
(weight)g/m	1.33+0.13 -0.13	2+0.2 -0.2	2.44+0.22 -0.22	3.11+0.31 -0.31	3.67+0.37 - 0.37	5.33+0.53 -0.53	6.67+0.67 -0.67	7.77+0.77 -0.77	10+1.0 -1.0
Diameter (mm)	1.5	2	2.3	2.5	2.7	3.2	3.8	4.5	5
Breaking Strength (kg) equal or more	24	36	44	56	66	96	120	140	180
(%) Breaking Elongation equal or more	10	10	10	10	10	10	10	10	10
Hot Shrinkage rate (%)	3	3	3	3	3	3	3	3	3

2.cheap cable pp filler yarn with mixed caco3 :

1-----5 PLY,2-----50MM,4-----8 TPM

this kinds of pp cable filler yarn price is the cheapest

Advantage: Cheap price, suitable for large cable.

Item
Linear Density	D	+/-10%	2------50mm Denier:20000D---800KD
Breaking Strength	g/D	0.2---0.6
Breaking Elongation	%	20
Hot Shrinkage rate	%	6	100°C*1min.
Tube size	mm	1 ID: 90, H:255 2. ID:38,H:220 3. ID:50,H:270 4. ID:75, H:440
Packing	6----50KG/ROLL

3. pp twist wire cable pp filler yarn,20---80TPM,1----8MM

4.FR wire cable pp filler , LOI >29

Our advantage:

A. The best price at good quality
B. Excellent service and prompt delivery
C. Effective and attractive packaging

wire cable pp filler yarn

100% pp , pp filler Specificatioms
Item	Unit	standard	Remark
Fineness	D	specification±8%	3000D-300000D
Breaking	g/d	>2
tenacity
Tensibility	%	<20
shrinkage	%	<6	120*30min
in hot air
Appearance	Natural Color or White,color
	obvious stations

In a wide range of denier from 3000D to 300KD,Widely used in wire and cable.These are sold in shrink-wrapped coreless rolls,rolled on paper cores and capable of working with continuing throughout their length.

pp+caco3 wire cable pp filler Specificatioms
Item	Unit	standard	Remark
pp filler Fineness	D	specification±8%	3000D-300000D
pp filler Breaking	g/d	>0.3,>1g/d
tenacity
Tensibility	%	<20
shrinkage	%	<10	120*30min
in hot air
Appearance	Natural Color or White,No
	obvious stations

5.high tenacity polyester yarn and polyester thread

polyester sewing thread Spec.	sewing thread weight (g/spool)	sewing thread Length (Y/spool)
840D/3 (0#)	90	300----5000
630D/3 (5#)	90	380----80000
500D/3 (10#)	90	550---9000
250D/4 (20#)	90	800-----12000
250D/3 (30#)	90	1100---20000
250D/2 (40#)	90	1600----25000
150D/3 (60#)	90	1600------30000
120D/3 (80#)	90	2100-----300000

6. aramid yarn:200D,400D,1000D,1500D,3000D

kelvar aramid yarn

aramid yarn is ahigh performance material,it comnines the characteristics of high strength and light weight. under the condition of equal weight,it is 5 times the strength of steel wire,2.5 times fiberglass.

ARAMID YARN PROPERTY

aramid yarn Denier (D)	aramid yarn Break Strength (kg)	Klongation At Break (%)	aramid yarn Modulus (g/D)
1000	20	3.5	24.0
1500	32	3.8	24.0
400	9.5	3.3	24.0
20S/2	3	3.0	15.0

7. al-pet ,pp foamed tape

...

Product Tags:


*From:	Your email address is incorrect!
*To:	Jiangxi Longtai New Material Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Cable Filler Material
Place of Origin:	China, Jiangxi, China
Model Number:	3000D---700KD
MOQ:	100
Material:	100% Polypropylene or + 20---70% caco3
Diameter:	0.5----30mm
Yarn type:	fibrillated split yarn
Breaking strength:	>0.3 or 1.0 or 2.0 raw white,and flam retardant
Twist:	untwist or twist
Packing weight:	2.5---30kg/roll
Linear Density:	12000D, 18000D, 22000D, 28000D, 33000D, 48000D, 60000D, 70000D, 90000D
Weight per meter:	1.33+0.13 -0.13 to 10+1.0 -1.0 g/m
Breaking Strength:	24 to 180 kg
Breaking Elongation:	10%
Hot Shrinkage rate:	3%
Denier range:	3000D-300000D
Tensibility:	<20%
Shrinkage in hot air:	<6% at 120°C*30min
Tube size:	ID: 38-90mm, H: 220-440mm
