Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment

Electric Vehicle EV Charging Gun Plug-in/Plug-out Force Test Equipment

Equipment Overview

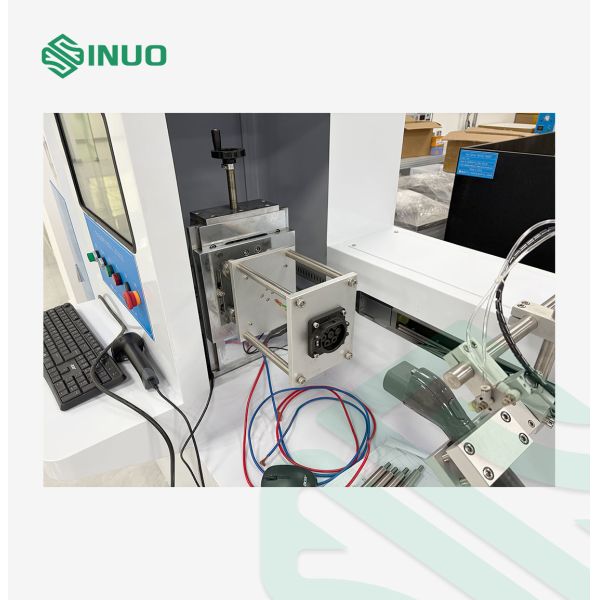

The Charging Gun Insertion & Withdrawal Force Tester is a high-precision tool specifically engineered for evaluating the plug-in and pull-out forces of EV charging connectors. Built for manufacturers who demand accuracy, stability, and efficiency, this system ensures every charging gun meets strict mechanical performance and safety requirements before entering the market.

Powered by a high-precision ball screw and advanced stepper motor drive, the tester delivers exceptionally smooth and consistent linear motion. With a Class-0.5 accuracy load cell and a fast 1000 Hz sampling rate, it captures even the slightest force variations with outstanding reliability.

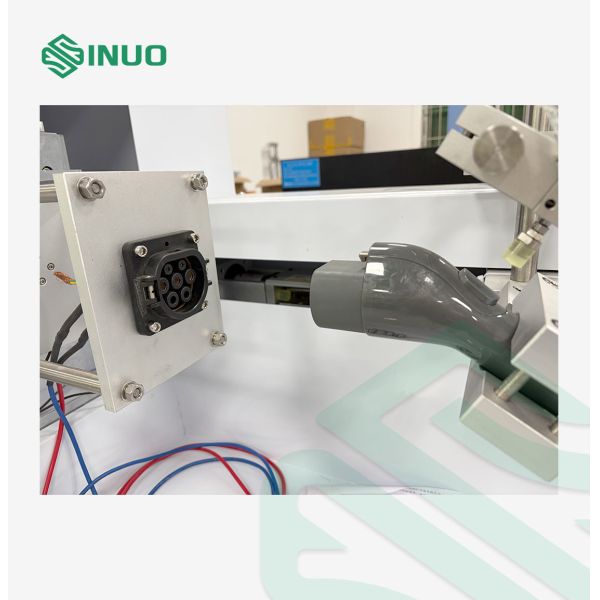

Designed for real-world production environments, the system supports fully customized fixtures for different EV charging gun models. It also integrates barcode scanning for automated test initiation and result tracking—significantly improving testing efficiency and aiding in complete traceability.

Whether used for incoming inspection, R&D verification, or end-of-line quality control, this tester offers the precision, stability, and automation needed for large-scale EV charging connector manufacturing.

Technical Parameters

Sinuo Testing Equipment Co., Limited established in 2019, but Sinuo has rich experience in manufacturing test euipment, test system and offering overall laboratory construction of electronic and electrical products. Sinuo's main products include electrical vehicle test equipment, battery testing equipment,  electromagnetic compatibility (EMC) test system, environmental testing equipment, fire retardant test equipment, dust-proof waterproof testing equipment and electrical appliances testing equipment. Our products covering electrical vehicle, electric power, communication, electrical appliances and electronic devices industries.

Sinuo has a professional technical research and development team, which is proficient in various international standards such AS IEC, ISO, EN, VDE, BS, AS, ASTM, GB and industry standards such AS MBN LV124, VW-80000. We master physical mechanics, heat, electricity, fluid and other theoretical knowledge in the application of equipment. And continue to focus on industry standard equipment performance optimization, operation simplification and equipment stability and reliability improvement.

Sinuo has two factories in Guangzhou and Dongguan, and cooperates with many research institutions and schools. Our R&D and production capacity are in the forefront. We have authorized agents in South Korea, the United States, South Africa, Egypt, Pakistan, the Philippines and other places, we serve customers BV, CSA, Intertek, SGS, TUV and other internationally renowned testing and certification institutions, local government quality inspection departments and production factories.
