Customizable 42mm Size 300mm TR8 Long Length Shaft NEMA17 Linear Hybrid Stepper Motor with 4mm Lead

Customized 42mm size 300mm TR8 long length shaft NEMA17 linear hybrid stepper motor

This is NEMA17 42mm size hybrid stepper motor with TR8 lead screw, and lead is 4mm.

We have multiple lead screw with different diameter and lead.

Customers can choose suitable lead screw parameter based on your own project requirement.

Also we provide customization service on lead screw’s length design and length.

For this current design, shaft’s length is about 280 mm.

If customer wants to customize lead screw shaft for over 300mm, we are able to do it.

Feel free to contact us if you have new projects requiring hybrid stepper motors with long length lead screw. We provide professional customization service.

Typical applications:

* Medical Equipment

* Linear Robotic Control

* Precision Calibration

* High Precision Valve

* Other Precise Position Movement

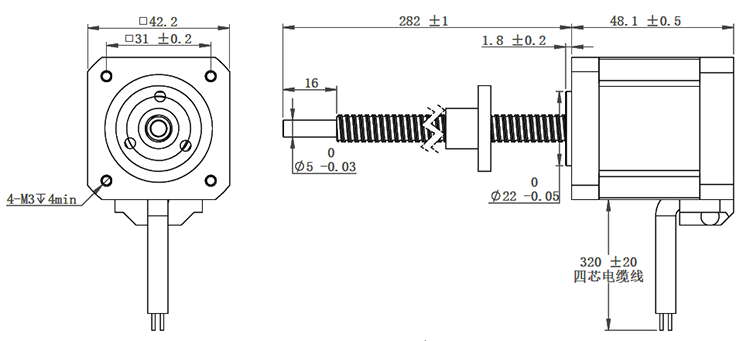

Design Layout (Unit:mm)

Parameter sheet:

Competitive Advantage

• High quality and the best price.

• Fast deliver,storage company and rich inventory

• Near Shanghai port, the traffic is very convenient.

Product Detail Presentation

CHANGZHOU VIC-TECH MOTOR TECHOLOGY CO., LTD
Changzhou Vic-Tech Motor Techology Co., Ltd has been specializing in producing micro motors and accessories since 2011.Our main products:Micro stepper motor,geared motor,underwater thruster and motor drivers and controllers.

We have a R & D team with 20 years of experience in motor development, providing customers with design and development custom services. By leveraging our honesty, dependability and quality, Vic-Tech Motor aims to continue as a pioneer in the sales overseas by seeking global partners.
