| Categories | Bronze Bearing Bushing |
|---|---|
| Brand Name: | PVB |
| Model Number: | ZR-092 |
| Certification: | ISO9001;IATF 16949 |
| Place of Origin: | China |
| MOQ: | 50 |
| Payment Terms: | L/C, D/A, D/P, T/T, D/A, L/C, D/P, T/T |
| Supply Ability: | 600,000PCS/month |
| Delivery Time: | 15-25 days |
| Packaging Details: | cartons+wooden pallets |
| Description: | Wrapped Bronze Bushing Perforated |
| Material: | CuSn8P, CuSn8, Custom Tin Bronze |
| Specification: | 35*39*50 |
| Application: | Zepro 21931TL/33520TL |
| Lubricating: | Oil or grease |
| Weight: | 0.084 kg |
| Other OEM NO.: | 3008100H, 3008101H, 3008102H, 3008104H, 3008105H, 3008106H, 3008108H, 3008109H |
| Company Info. |
| Jiaxing Joyreap Precision Machinery Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

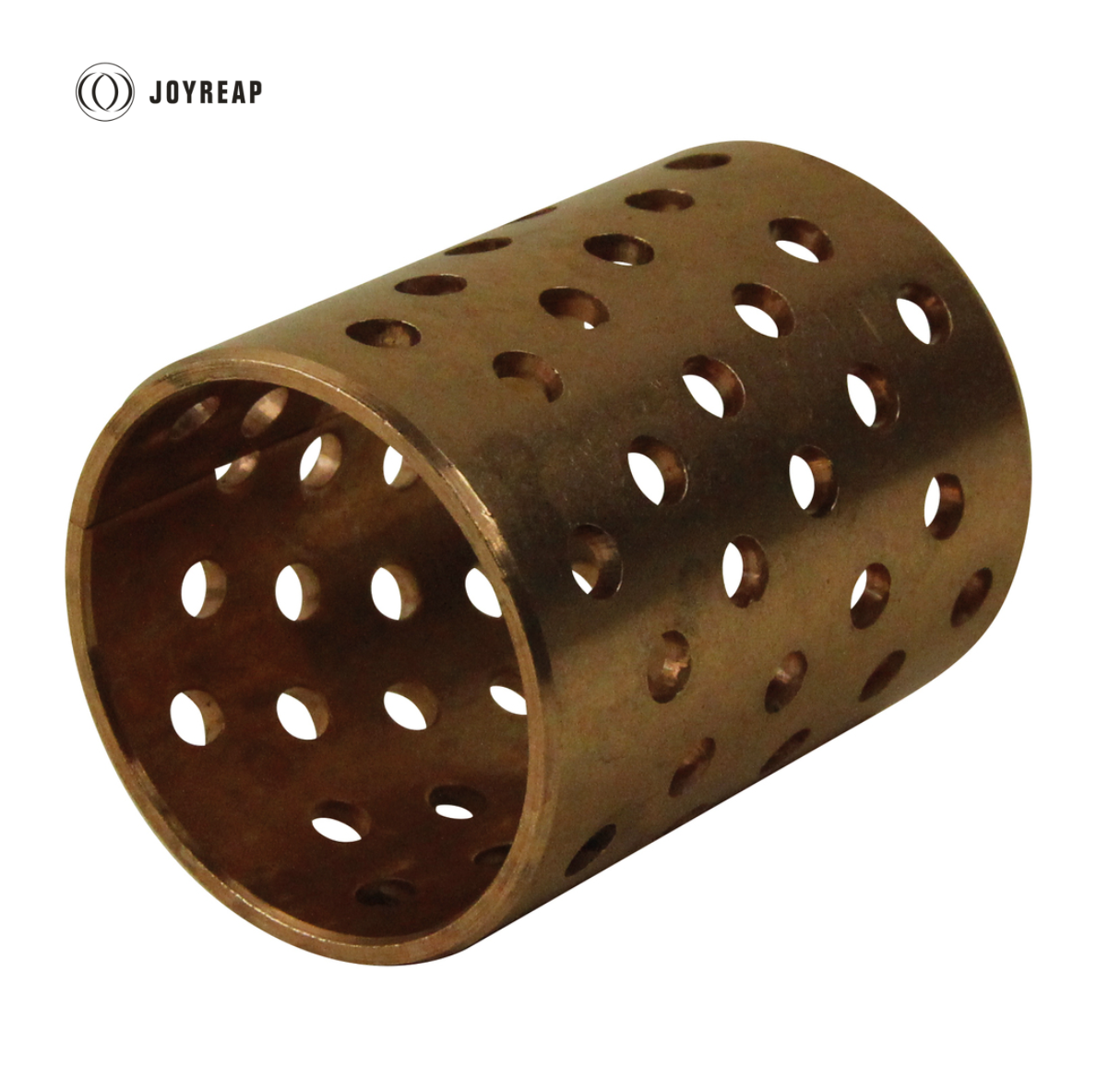

Wrapped Bronze Bushing Perforated CuSn8P Tin Bronze Bushing
ZR-092 Bronze bushings are Suitable for Zepro 21931TL/33520TL.It's a kind of bush wrapped by bronze strip. It is of high load capacity and long life. Compared with tradtional cast bronze bush, it is more cheap and more compact. Wrapped bronze bush is widely used in hoisting machines, construction machines, automobiles, trucks, machine tools,mineral equipments and etc.
Material Structure
Material: CuSn8P0.3 (DIN ISO 4382-2:1991)
| ype | Cu% | Sn% | P% |
| ZR-098 Bronze Bushing | 91.3 | 8.5 | 0.2 |
Materail chemical composition refer to the standard of DIN17662 ISO 4382-2: 1991; CW453K.The actual composition proportion is allowed to up or down in certain range based on standard
Characteristics
Operation Performance
| ZR-092 Bronze bushings | Performance |
| Dry Operation | Poor |
| Lubricated Operation | Good |
| Greased Operation | Good |
| Machinable | Consult with Applications Engineer |
| RoHS Compliant | Compliant |
OEM NO.
3008100H, 3008101H, 3008102H, 3008104H, 3008105H, 3008106H, 3008108H, 3008109H
Application
ZR-092 wrapped bronze bushing is widely used in Forest- and constructional machinery, agricultural machinery, cranes, forklifts, hoisting equipment etc.
Technical Data Of Material
| Max. Load | Static | 120N/mm² | Elongation | 40% |
| Dynamic | 40N/mm² | Operation Temperature range | -100℃~+200℃ | |
| Max. Speed (lubricated) | 2m/s | Friction coefficient | 0.08~0.25 | |
| Max. PV | 2.8N/mm²*m/s | Thermal conductivity | 58W(m*K)-1 | |
| Tensile Strength | 450N/mm² | Coefficient of thermal expansion | 18.5*10-6*K-1 | |
| Alloy Hardness | HB 110-150 | |||
Mounting Suggestion
Housing ØH7
Bushing inner-Ø after mountingH9
Shaft tolerance f7
Housing: Mounting bevel min. 1.5 mm x 15-45°
Shaft Material: Steel, hardened or untempered, surface roughness ≤ Rz 4-6
Shaft: Mounting bevel 5 mm x 15°, edges rounded
The application of an adequate force fitting mandrel is advisable. Grease lubrication of the outer surface may
be necessary when mounting.
Stick-in: Adhesive should not contact the sliding surface
|
