| Categories | Wire Rope Mesh |
|---|---|
| Brand Name: | HUIHAO KASITE |
| Model Number: | HH-RM |
| Certification: | ISO9001-2015 |
| Place of Origin: | CHINA |
| MOQ: | 1 M2 of rope mesh |
| Price: | USD14-USD28 per square metes for rope mesh |
| Payment Terms: | T/T |
| Supply Ability: | 6000 m2 rope mesh per 30 days |
| Delivery Time: | 8 work days in common |
| Packaging Details: | carton/ pallet/ wooden case for rope mesh |
| Name: | Inter woven rope mesh |
| Application: | Safety Barries |
| Opening angle: | 90 degree |
| Material: | stainless steel 304/ 316 |
| Main feature: | strong and flexible |
| Frame system: | support customized |
| Company Info. |
| Anping County Huihao Wire Mesh Manufacture Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
The standard rope mesh holes of SS cable inter-woven rope mesh is a diamond shape with 90 degrees top angle. The main parameter's for production are the cable diameter, mesh size(center distance), and the width and length of the rope mesh panels. For the irregular shape of mesh, we will need a drawing to produce the rope mesh.
| Item No.s | Cable Diameter | Mesh Opening Size | ||
| inch | mm | inch | mm | |
| hh-3212W | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 |
| hh-3210W | 1/8 | 3.2 | 4 x 4 | 102 x 102 |
| hh-3290W | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 |
| hh-3276W | 1/8 | 3.2 | 3 x 3 | 76 x 76 |
| hh-3250W | 1/8 | 3.2 | 2 x 2 | 51 x 51 |
| hh-2410W | 3/32 | 2.4 | 4 x 4 | 102 x 102 |
| hh-2490W | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 |
| hh-2476W | 3/32 | 2.4 | 3 x 3 | 76 x 76 |
| hh-2460W | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 |
| hh-2450W | 3/32 | 2.4 | 2 x 2 | 51 x 51 |
| hh-2076W | 5/64 | 2.0 | 3 x 3 | 76 x 76 |
| hh-2060W | 5/64 | 2.0 | 2.4 x 2.4 | 60 x 60 |
| hh-2050W | 5/64 | 2.0 | 2 x 2 | 51 x 51 |
| hh-2038W | 5/64 | 2.0 | 1-1/2 x 1-1/2 | 38 x 38 |
| hh-1676W | 1/16 | 1.6 | 3 x 3 | 76 x 76 |
| hh-1650W | 1/16 | 1.6 | 2 x 2 | 51 x 51 |
| hh-1638W | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 |
| hh-1630W | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 |
| hh-1625W | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 |
| hh-1238W | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 |
| hh-1230W | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 |
| hh-1225W | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 |
| hh-1220W | 3/64 | 1.2 | 4/5 X 4/5 | 20 x 20 |
Constructed entirely from stainless steel 304/316L material, it offers exceptional weather resistance. Customizable options include rope structure, wire diameter, and plate thickness to accommodate any load-bearing requirements.
Dimensions and colors can be fully customized to meet any design concept requirements.

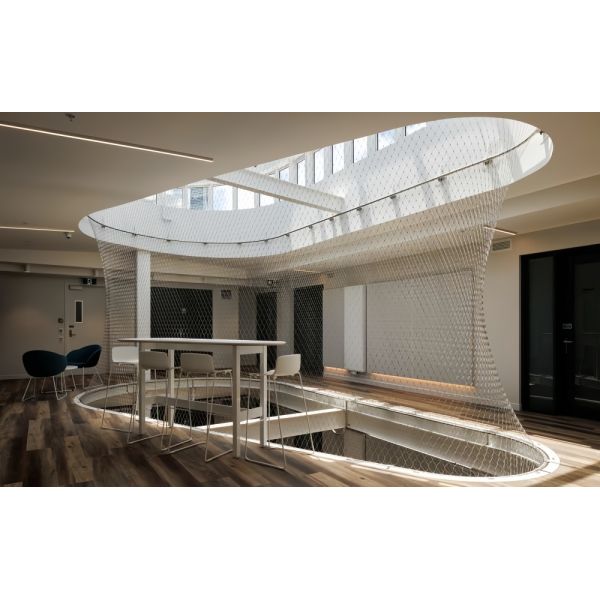

The combination of ropes and metal panels creates a three-dimensional layered effect, rope mesh suitable for building facades, interior partitions, landscape decoration, etc. Compared to other materials, stainless steel has a higher fire resistance rating, making it suitable for a wider range of applications.
rope mesh maintains an open spatial feel while also serving as a screen or railing to balance ventilation and privacy needs.
|
