WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
Categories Gantry Shear
Certification: ISO
MOQ: 1
Price: 53000
Max Cutting Force: 5000kn
Blade Length: 1400/1600mm
Production Rate: 6-9t/H
Power: 90kw
Shearing Hydro-Cylinder: YG450/280
Hydro-Cylinder Quantity: 2
Nominal Thrust: 4000Knx2
Push Hydro-Cylinder: YG320/220
Push Thrust: 2000Kn
Hydraulic Pressure: <22Mpa
Cutting Dimensions: 1600/420mm
Shearing Times: 2-4 Times/Min
Operating Mode: Mechanical Loading, PLC Control
Power Specification: 415V/3P 50Hz
Main Machine Power: 220Kw
Contact Now
Company Info.
JiangSu DaLongKai Technology Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine

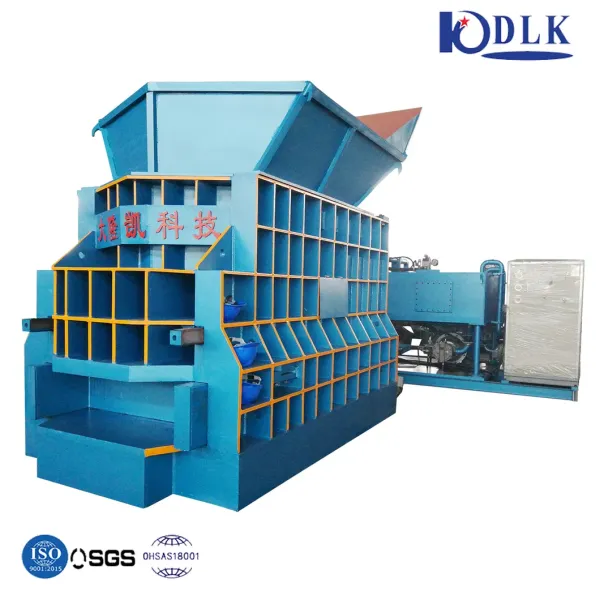

WS-500 Horizontal Metal Container Shear
Applications:
Scrap shear is used for economical scrap processing. This machine has easy operation
and flexible transportation with a roll on/roll off system. Various models are available.
HPM series of horizontal balers work with manual belting.

Features:
1.Horizontal structure: feeding can be manual or automatic with conveyor.
2.PLC control and push-button operation make it safe and reliable.
3.High output.
No.
Parameter Name And Content
Remark
1Shearing Hydro-Cylinder
Model		YG450/280
Quantity		2

Nominal
Thrust		4000Knx2
Stroke
2Push Hydro-Cylinder
Model		YG320/220
Quantity		1

Nominal
Thrust		2000Kn
Stroke
3Hydraulic System Working Pressure<22Mpa
4/Cutting Length/ Height 1600/420mm
5 Shearing Times
2-4 Times/Min 		Empty load  Load operation
6 Operating ModeMechanical Loading Materials, Push-Button &Plc  Control  (With The Remote Control)
7Power Specification415V/3P  50Hz (According to your requirement)
8Main Machine Power220Kw (not including system of cooling, heating and filtering)
9 Oil Tank Size4000X2000X800  (6000L)
10
Motor
Model		Y2-250M-4
Quantity		4

Rated  Speed		1470 Rpm
Rated Power		55 Kw
11
Pump
Model		A4V250
Quantity		4

Nominal
Displacement		  250ml/r
Rated Pressure		31.5Mpa

Other Models For Container Shear
ModelMax Cutting Force(KN)Blade Length(mm)Shear Height(mm)Production Rate(t/h)Power(KW)
WS-63063001400/1600300/4208-15110
WS-80080001600420/50012-18220
WS-1000100001600/2100420/50015-25360
Ws-500 Automatic Hydraulic Metal Shear Machine

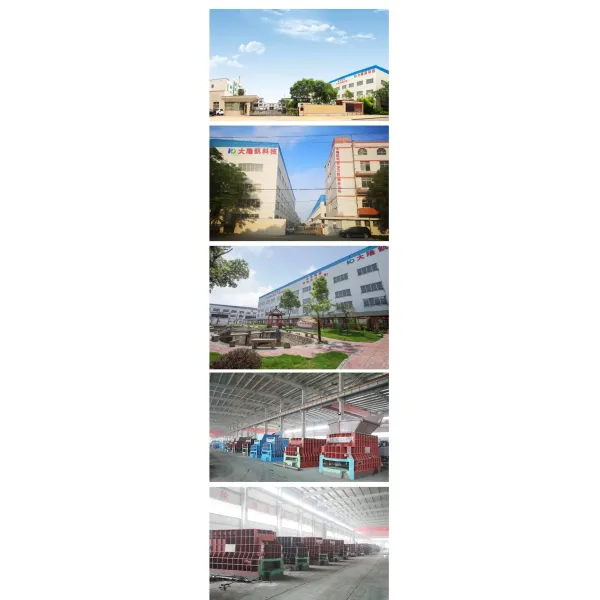

Who are we?
Jiangsu Dalongkai Technology Co., Ltd. is engaged in the manufacture of scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines and a complete array of testing devices, we manufacture all kinds of hydraulic scrap balers, scrap shears, such as container shears, hydraulic metal balers, garbage compactors, briquetting presses, sheet metal shears, other non-standard equipment. We export these products to clients in Russia, India, South Africa, Southeast Asia, etc.
Our machines are mainly suitable for scrapyards, steel mills, scrap recycling processing industry, and nonferrous & ferrous smelting industry.
Ws-500 Automatic Hydraulic Metal Shear Machine
Finished Products

Ws-500 Automatic Hydraulic Metal Shear Machine



Package

Ws-500 Automatic Hydraulic Metal Shear Machine
FAQ
Q1: How can i get the after-service?
A: We provide  one year guarantee and lifelong maintenance.
     We will send you the spare parts by free if the problems caused by us.
     If it is the men-made problems,we also send the spare parts,however it is charged.
     Any problem, you can call us directly.

Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
     Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
     Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
      Hotel booking service is available .

Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 20 years, export proportion 50~60%.

Q4:How can I trust your company?
A: With 20-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment.
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.

Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
