Suitable for Isuzu 4HG1/4HE1/4HK1Diferential half axle stud 8973598030 8 97359803 0

Suitable for Isuzu 4HG1/4HE1/4HK1Diferential half axle stud 8973598030 8 97359803 0

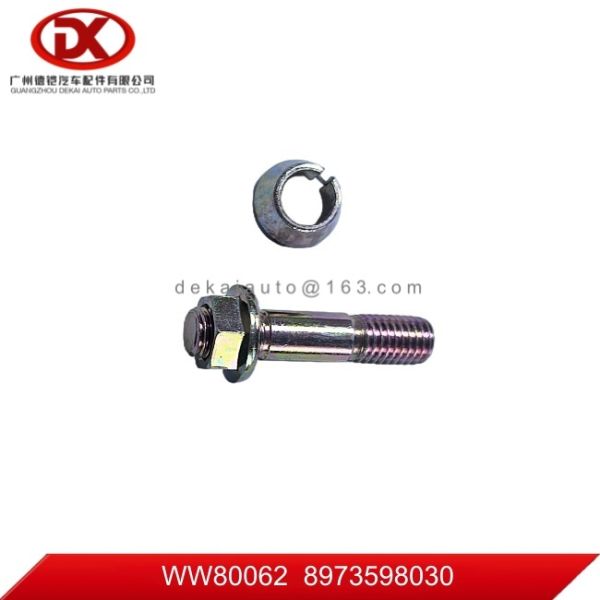

WW80062 8973598030 8 97359803 0 Diferential half axle stud

More Parts:

Function of differential half shaft bolts

I.: Rigid Connection for Torque Transmission (Power Transmission Bridge)

1.Torque output by the differential is first transmitted to the half-shaft. The end of the half-shaft (via a flange or spline fit) attaches to the wheel hub, and the half-shaft stud passes through the mounting holes of both components, secured with a nut and lock washer to form a gap-free rigid connection.

2.Torque is transferred to the hub through the shear force and tensile force of the stud, ultimately driving the wheel to rotate and propel the vehicle (equivalent to the "final fastening bridge for power transmission").

3.Key Requirement: The stud must be made of high-strength material (typically 8.8-grade or 10.9-grade high-strength alloy) to prevent shear, deformation, or fracture due to excessive torque during power transmission.

II. Positioning and Fixing to Ensure Transmission Precision

1.Positioning Function: The diameter of the stud is precisely matched to the mounting holes of the half-shaft flange and wheel hub. After installation, it forces the half-shaft and hub to maintain a concentric axis (avoiding eccentricity), ensuring uniform force distribution on gear teeth and bearings during power transmission.

2.Fixing Function: The preload generated by tightening the nut tightly adheres the half-shaft flange to the hub, eliminating gaps. This prevents relative displacement during driving (especially during acceleration, braking, or turning), avoiding transmission impact and component wear.

III. Bearing Composite Loads for Complex Driving Scenarios

1.Torque Load: Rotational torque during power transmission exerts shear force on the stud (a force attempting to shear the stud);

2. Axial Load: Thrust/tension during vehicle startup and braking, as well as axial movement of the wheel, exert tensile force on the stud (a force attempting to pull the stud out);

3. Radial Load: Centrifugal force when turning and impact force on bumpy roads are transmitted to the stud through the hub, generating radial pressure;

4. Anti-Loosening Requirement: To withstand frequent load changes, the stud is usually paired with a lock nut (with nylon insert or cotter pin) or lock washer to prevent loosening during driving. Loose studs can cause hub wobble, leading to severe consequences such as wheel vibration, abnormal noise, or even wheel detachment.

Auto parts suitable for Japanese Trucks : CYZ51K 6WF1 / FVR34 6HK1 / FSR33 6HH1 / NPR75 4HK1 / NLR85 4JJ1 / NPR71 4HG1 / NPR66 4HF1 / QKR55 4JB1 / NKR55 4JB1 / DMAX / HINO 700/500 / 300 E13C /J08/J05 / N04C etc.

Guangzhou DeKai Auto parts Co.LTD Is located in GuangZhou China, the distribution center of Auto parts, we specialized in ISUZU Truck spare parts, Including Engine systems, Exhaust systems, Cooling & Heating system, Pneumatic system, Chassis System, Braking systems, clutch parts, Transmission parts，Electronics Parts, Body parts and etc.
After many years efforts, Our products have got highly recognized among customers all over the world. At the same time, Our Own brand “ MGTEK“ ONUKA” “HALT” have won the favor of the consumer
we always adhere to the “Quality and Honesty ‘in order to survive, customer’s success is our success. We sincerely believe that we will be your faithful partner in China.
