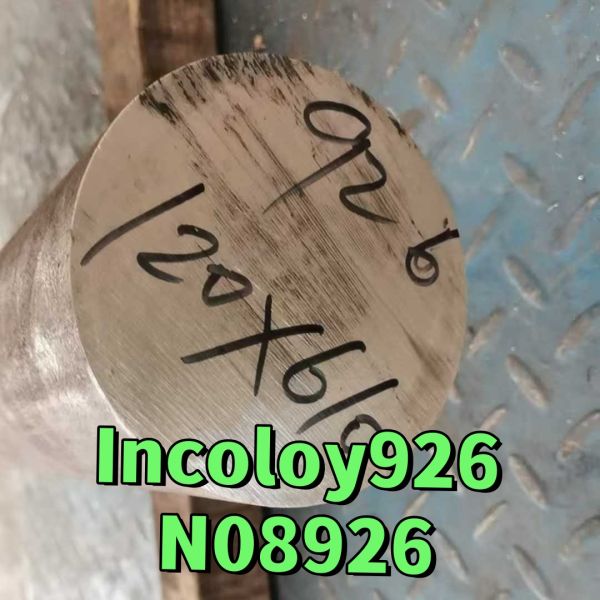

UNS N08926 Incoloy 926 Alloy Steel Bar Corrosion Resistant 1.4529
Stainless Steel Round Bar 120mm
INCOLOY 926 is an austenitic molybdenum stainless steel that
displays superior corrosion resistance to numerous aggressive
media. The mixture of molybdenum and nitrogen inhibits pitting and
crevice corrosion, while copper boosts sulfuric acid tolerance and
nitrogen increases yield and tensile strengths.
Standard:ASTM B625,ASTM A240,ASTM B673,ASTM B674,ASTM B677
Product size can be customized according to customer needs.
Main alloy steel chemical composition:
| Chemical Composition(%) |
| Grade | Ni | Fe | Cr | Si | Mo | Mn | C | Cu |
| Inconel625 | UNS N06625 | W.Nr.2.4856 | 58 | 5 | 23 | 0.5 | 10 | 0.5 | 0.1 | |
| Inconel600 | UNS N06600 | W.Nr. 2.4816 | 72 | 6.00-10.0 | 14.00-17.0 | 0.5 | | 1 | 0.15 | 0.5 |
| Inconel 718 | UNS NO771 | W.Nr.2.4668 | 50-55 | Balance | 17 -21 | 0.35 | 2.8-3.3 | 0.35 | 0.08 | 0.15 |
| Incoloy 800H | UNS N08810 | W.Nr.1.4958 | 30.0-35.0 | 39.5 | 19.0-23.0 | 1 | | 1.5 | 0.05~0.10 | |
| Incoloy825 | UNS N08825 | W.Nr. 2.4858 | 38-46 | 22 | 19.5-23.5 | | 2.5-3.5 | 1 | 0.05 | 1.5-3 |
| Incoloy926 | UNS N08926 | W.Nr. 1.4529 | 24-26 | Balance | 19-21 | 0.5 | 6~7 | 2 | 0.02 | 0.5-1.5 |
| Incoloy925 | UNS N09925 | | 42-46 | 22 | 19.5-22.5 | 0.5 | 2.5-3.5 | 1 | 0.03 | 1.5-3 |
| Monel 400 | UNS N04400 | W.Nr. 2.4360 | 63 | 2.5 | | 0.5 | | 2 | 0.3 | 28-34 |
| Monel K500 | UNS N05500 | W.Nr. 2.4375 | 63 | 2 | | 0.5 | | 1.5 | 0.25 | 27-33 |
Other attributes
| Type | Welded |
| Steel Grade | Incoloy 926 |
| Tolerance | ±1% |
| Surface Finish | BA |
| Invoicing | by actual weight |
| Place of Origin | WUXI , China |
| Delivery Time | within 7 days |
| Processing Service | Cutting |


1.4529, X1NiCrMoCuN25-20-7 - specification and application
1.4529 grade is high alloyed stainless steel with an austenitic
structure, which can be classified as nickel alloys (according to
American standards).
Delivered in the supersaturated state exhibits resistance to
intercrystalline, pitting, and stress corrosion, salt, sea water,
chloride, sulfuric acid, phosphoric acid and other aggressive
chemicals in high concentrations in liquid and gaseous form.
Materials of 1.4529 grade, except high chemical resistance, can
work at elevated temperatures while maintaining adequate mechanical
properties.
Ignoring the high content of nickel and chromium, the standard also
specifies a relatively large amount of Molybdenum and Nitrogen,
which is particularly worthwhile when selecting grade from the
related group of high alloy steels.
Significantly higher percentages of Nitrogen and Molybdenum
contribute to limiting the creation of intermetallic phases, as
well as improving the impact resistance.
Steel is used mainly in the chemical, paper, cryogenic, aerospace,
and power industries. The main end products are heat exchangers,
chemical tanks, pumps, screws, aircraft components, bushings,
shafts, water desalination and flue gas desulphurisation equipment,
valves and even radiator components.
INCOLOY 926 high temperature alloy steel round bar
Steel properties at individual working temperatures
| Properties | Operating temperature |
|---|
| 100℃ | 200℃ | 300℃ | 400℃ | 500℃ |
|---|
| Yield point, Rp0,2 | MPa | > 230 | >190 | >170 | >160 | - |
| Linear Expansion Factor, α | * 10-6 K-1 | 15,8 | 16,1 | 16,5 | 16,9 | 17,3 |
| Modulus of elasticity, E | GPa | 190 | 182 | 174 | 166 | 158 |
