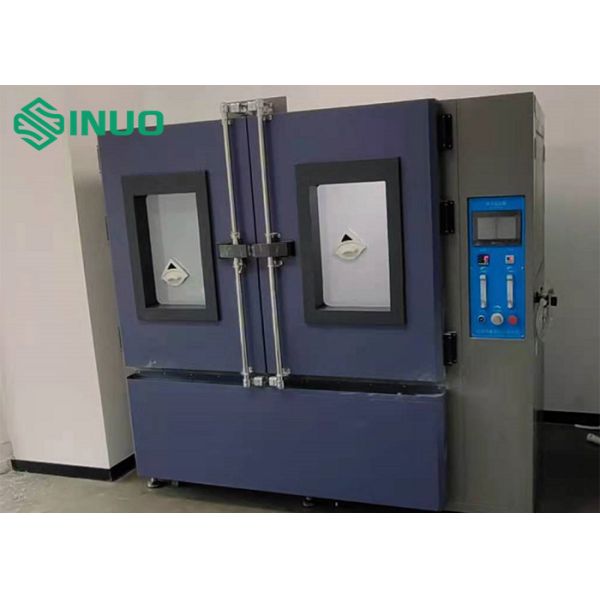

2m³ Dust Test Chamber IP5X & IP6X For Dry Sand Or Circulating Dust Environments Test
Product Overview:
The 2m³ Dust Test Chamber is designed in accordance with IEC 60529:2013, GB/T 4208-2017 (IP Code), and GB/T 2423.37-2006 (Test L: Dust Test). It is used to evaluate the dustproof protection (IP5X/IP6X), reliability, and operational performance of household appliances, luminaires, electrical and electronic products, and electromechanical devices when exposed to dry sand or circulating dust environments.
This chamber provides a controlled dust-laden atmosphere to determine whether the product can operate safely, resist dust ingress, and maintain storage and functional stability.
Key Features:
Pneumatic vibration system, infinitely adjustable amplitude
Variable-speed fan with frequency converter for dust circulation
Independent adjustable vacuum pressure & flow rate
Digital temperature & humidity display, visible on touchscreen
Easy dust replacement via bottom funnel with ball valve
Air filtration assembly for pressure equalization
Supports sample preheating function (e.g., luminaires can be powered on to reach stable condition before dust testing)
Full-width unobstructed door opening (2000 × 1000 mm) for easy loading of large samples
Technical Parameters:
| Item | Specification |
|---|---|
| Internal Dimensions (W×D×H) | 2000 × 1000 × 1000 mm |
| Test Dust | Dry talcum powder passing through 75 µm sieve, wire diameter 50 µm |
| Dust Concentration | 2–4 kg/m³ |
| Airflow Speed | < 2 m/s |
| Vacuum Pressure Differential | 0 to -10 kPa adjustable, with pressure gauge |
| Vacuum Flow Rate | 60–6000 mL/min adjustable |
| Chamber Heating Temperature | Ambient +10°C to +50°C, reduces humidity; touchscreen control |
| Vibration System | Pneumatic vibrator, amplitude infinitely adjustable |
| Air Circulation | High-power turbine fan, speed adjustable via inverter |
| Viewing Window | Sealed glass window with dust wiper |
| Shelves | Double-layer stainless-steel grid shelves |
| Vacuum System | Vacuum pump, flow meter, negative pressure gauge, regulator, filters |
| Inner Chamber Material | Stainless steel |
| Outer Chamber Material | Cold-rolled steel with oven-baked coating |
| Sample Power Supply | Built-in dustproof AC outlet; power on/off controlled by chamber |
| Resolution | Temperature: 0.1°C; Time: 1 s |
| Door Type | Double doors, opening size 2000 × 1000 mm |
| Control Interface | Touchscreen with programmable parameters |
Programmable Test Settings:
| Function | Setting Range |
|---|---|
| Test Duration | 0–999 h : 59 m : 59.9 s |
| Dust Blowing ON Time | 0–999 h : 59 m : 59.9 s |
| Dust Blowing OFF Time | 0–999 h : 59 m : 59.9 s |
| Chamber Vibration ON Time | 0–999 h : 59 m : 59.9 s |
| Chamber Vibration OFF Time | 0–999 h : 59 m : 59.9 s |
| Vacuum ON Time | 0–999 h : 59 m : 59.9 s |
| Vacuum OFF Time | 0–999 h : 59 m : 59.9 s |
| Sample Power ON | 0–999 h : 59 m : 59.9 s |
| Sample Power OFF | 0–999 h : 59 m : 59.9 s |
| Sample Preheating | 0–999 h : 59 m : 59.9 s |
| Fan Running Frequency | 30–50 Hz adjustable |
Chamber Structure:
Twin conical funnels with dust collection and blowing ports
High-pressure turbine fan circulates dust from bottom to chamber top
Internal dust falls vertically and is re-collected by vibration system
Two observation windows with dust scraper
LED interior lighting
φ100 mm test port
Sample loading capacity: up to 100 kg
Power & Air Requirements:
Chamber Power: AC 380V, 50Hz, 5 kW
Sample Power: AC 220V, 50Hz, 10 A
Compressed Air: Φ8 mm air inlet
|
