65.11101-7356 106675-466F Fuel Injection Pump DOOSAN Excavator Spare Parts For MEGA 300-V

Categories Excavator Engine Parts
Brand Name: OEM
Model Number: 65.11101-7356 106675-466F
Place of Origin: China
MOQ: 1 PCS
Price: 745 USD / pcs
Payment Terms: T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability: 100-2000
Delivery Time: 3-7 working days
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Category: Engine Parts
Part number: 65.11101-7356 106675-466F
Product name: Fuel Injection Pump
Machine number: MEGA 300-V SOLAR 300LC-V
Application: Excavator
Lead time: 1-3 days for delivery
Packing: Standard Export Carton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

65.11101-7356 106675-466F Fuel Injection Pump DOOSAN Excavator Spare Parts For MEGA 300-V

  • 65.11101-7356 106675-466F Fuel Injection Pump DOOSAN Excavator Spare Parts For MEGA 300-V


  • Specifiion

CategoryEngine Parts
NameFuel Injection Pump
Parts No65.11101-7356 106675-466F
Machine NumberMEGA 300-V SOLAR 300LC-V
Lead time1-3 DAYS
QualityBrand new, OEM quality
MOQ1 PCS
Means of transportBy sea/air, DHL FEDEX UPS TNT
PackingAs request or standard packing

  • Key functions & working principle
Working Principle1. Fuel Intake: Low-pressure fuel from the fuel tank (supplied by a lift pump) enters the injection pump’s housing, filling the space around the plunger/barrel assembly.
2. Pressure Generation: The engine’s camshaft drives the pump’s camshaft, pushing the plunger upward. This compresses the fuel in the plunger chamber, raising pressure to 180–220 MPa.
3. Fuel Metering: The plunger’s helical groove controls the amount of fuel delivered – rotating the plunger (via the governor) adjusts the fuel volume for different engine loads/speeds.
4. Injection Timing: The delivery valve opens at peak pressure, sending metered fuel through high-pressure lines to the engine’s fuel injectors, which spray fuel into the combustion chambers.
5. Governor Regulation: As engine speed changes, the centrifugal flyweights in the governor adjust the plunger position to maintain consistent speed (e.g., reduce fuel delivery at high speed to prevent overspeeding).
Core Functions1. High-Pressure Fuel Delivery: Supplies atomized diesel fuel to engine cylinders at the correct pressure for efficient combustion
2. Fuel Metering: Precisely controls fuel volume per cylinder to match engine load (idle, partial load, full load) – optimizes power and fuel efficiency
3. Injection Timing Control: Ensures fuel is injected at the optimal piston position (top dead center) to maximize power and minimize emissions (NOx, particulate matter)
4. Speed Regulation: Prevents engine overspeeding (via governor) and maintains stable idle – protects engine components from damage

  • Compatible models

EXCAVATORS MEGA 300-V SOLAR 300LC-V Doosan


  • More other pump applied to DOOSAN heavey machine
401-00252B PUMP;MAIN
Doosan
65.11101-7356A PUMP;INJECTION
Doosan
401-00326 PUMP INSTALLATION
Doosan
02601660 PUMP;GEAR
Doosan
400914-00337 PUMP,MAIN
Doosan
401-00233B PUMP
Doosan
MX511863 PUMP ASS'Y
Doosan
K1026895 PUMP;LUBRICATING OIL
Doosan
401-00080A PUMP;TRIPLE VANE
Doosan
401-00354A PUMP;TRIPLE
Doosan
2401-1220 PUMP ASS'Y
Doosan
401-00366 PUMP ASS'Y
Doosan

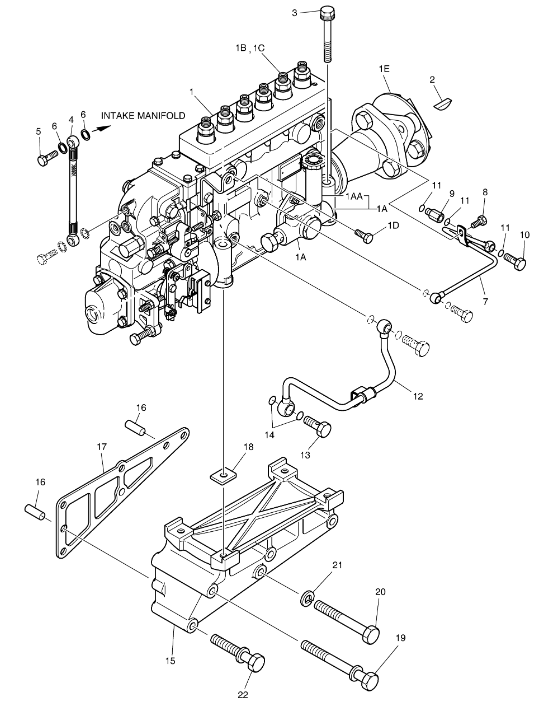

  • Directory listing
Pos.Part NoQtyParts nameComments
165.11101-7356[1]PUMP;INJECTION65.11101-7356A
165.11101-7356A[1]PUMP;INJECTION65.11101-7356B
165.11101-7356B[1]PUMP;INJECTION400912-00062
1400912-00062[1]
1065.98150-0027[1]SCREW;HOLLOW
1106.56180-0714[3]RING;SEAL
1265.05701-5358[1]OIL RETURN PIPE ASS`Y(I/P)
1365.90420-0012A[1]SCREW;HOLLOW M16X2
1406.56190-0708[2]RING;SEAL
1565.11401-0046A[1]BRACKET
1606.22022-1112[2]PIN;DOWEL
1765.11405-0001[1]SHIM T=0.10
1765.11405-0002[1]SHIM T=0.15
1765.11405-0003[1]SHIM T=0.20
1765.11405-0004[1]SHIM T=0.50
1865.11405-0009[4]SHIM 0.10mm
1865.11405-0010[4]SHIM 0.30mm
1906.01913-3234[3]BOLT ASS`Y M10X130
1A.105207-154A[1]
1AA.400908-00004[1]. HAND PRIMING PUMP
1B.134153-1420[6]
1C.134110-1420[6]VALVE;DELIVERY
1D.131424-4420[1]VALVE;OVER FLOW
1E.105663-074B[1]COUPLING
206.29141-0215[1]KEY;WOODRUFF
2006.01013-9226[1]BOLT;HEX. M10X1.5X110
2106.16731-2108[1]WASHER;SPRING
2206.01913-3229[1]BOLT ASS`Y M10X90
306.01923-3228[4]BOLT ASS'Y M10X85
465.08301-6010A[1]HOSE;AIR
565.98150-0053B[1]SCREW;HOLLOW
606.56180-0716[2]. RING;SEAL
765.05701-5356[1]PIPE;OIL DELIVERY(I/P)
806.01913-2910[1]. BOLT;HEX. M6X12
965.98130-0029[1]ADAPTER


  • We could supply the following spare parts

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.


2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.


3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.


4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.


5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.


6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.


  • Packing and Shipping

Packing Details :


inner packing : plastic film for wrapping


external packing : wooden


Shipping :


within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.


1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,


2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.


3. By Sea: Delivery from the Huangpu port .
