| Categories | Pneumatic Air Cylinder |
|---|---|
| Brand Name: | NBSANMINSE |
| Model Number: | 10A-5 |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 10PCS |
| Price: | Negotiation |
| Payment Terms: | L/C,T/T |
| Supply Ability: | 10000PCS |
| Delivery Time: | 5-30days |
| Packaging Details: | Box |
| Proof Pressure: | 15(bar) |
| Working Medium: | Air, Dry Air |
| Lubrication: | Not Required |
| Cushion Stroke: | 20(mm) |
| Material: | Aluminum |
| Shock Resistance: | 30G |
| Company Info. |
| Ningbo Sanmin Import And Export Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Standard Type
Type with Switch
Type with Valve
Type with Valve and Switch
| Item | Description |
| ①Cylinder Model | |
| ②Installation Form:See the diagram on the next page | |
| ③Cylinder Bore:See the table below | |
| ④Cylinder Stroke:See the table below | |
| ⑤Switch Mode | |
| Code | Name |
| J | FD-21R |
| H | FD-19RV |
| L | FD-43RV |
| ⑥Number of Switches | |
| ⑦Valve Operation Mode | |
| Single Solenoid | Double Solenoid |
| A: Energized Push Type | D: Self-holding Type |
| C: 3-Position Closed Center Type | |
| B: Energized Pull Type | E: 3-Position Exhaust Center Type |
| P: 3-Position Pressure Center Type | |
| ⑧Valve Operating Voltage | 5:AC 220V 50HZ 8:DC 24V |
| ⑨Connection Form | See the diagram on the next page |
| Remarks | FD-19RV is for φ32~φ125 FD-43RV is for φ160~φ200 |
II. Graphical Symbols and Appearance
Standard Type
Type with Switch
Valve-Equipped Type - Push Type when Energized
Valve-Equipped Type - 3-Position Closed Center Type
Type with Valve
Valve-Equipped Type - Pull Type when Energized
Valve-Equipped Type - 3-Position Exhaust Center Type
Type with Valve and Switch
Valve-Equipped Type - Self-holding Type
Valve-Equipped Type - 3-Position Pressure Center Type
1.The main components are made of aluminum alloy, so it is light in weight.
The cylinder wall undergoes hard anodic oxidation, making it particularly wear-resistant and ensuring a long service life.
2.The installation dimensions comply with ISO (International Organization for Standardization).
3.It adopts oil-free lubrication (oil-lubrication is also available),
avoiding oil-gas contamination and eliminating the need for an oil mist lubricator.
4.It has a wide variety of types and specifications.
Combination cylinders with switches and valves are available,
which saves piping time and makes maintenance and operation easy
| Parameter | 10A-5 (Standard Type) 10A-5R (Type with Switch) | 10A-5V (Type with Valve) 10A-5K (Type with Valve and Switch) | |||||||||||||||||
| Cylinder Bore D (mm) | Φ32 | ①40φ50 | Φ63 | Φ80 | Φ100 | Φ125 | Φ160 | Φ200 | Φ250 | Φ32 | Φ40 | Φ50 | Φ63 | Φ80 | Φ100 | Φ125 | Φ160 | Φ200 | |
| Maximum Stroke S (mm) | 500 | 800 | 1000 | 1500 | 500 | 800 | 1000 | 1500 | |||||||||||
| Operating Pressure Range (bar) | 0.5～10 | 1.5～8 | |||||||||||||||||
| Proof Pressure (bar) | 15 | 12 | |||||||||||||||||
| Operating Speed Range (mm/sec) | 50～700 | 50～500 | |||||||||||||||||
| Operating Temperature Range (℃) | -25～+80(under non-freezing conditions) | -25～+80(under non-freezing conditions) | |||||||||||||||||
| Working Medium | Air, Dry Air | ||||||||||||||||||
| Lubrication | Not Required (Oil Lubrication Optional) | ||||||||||||||||||
| Cushion | Adjustable Cushion on Both Sides | ||||||||||||||||||
| Cushion Stroke (mm) | 20 | 25 | 28 | 30 | 20 | 25 | 28 | ||||||||||||
| Installation | Cylinder Model | 10A-5R | 10A-5V | 10A-5K | |||||||||||||||
| Minimum Stroke (mm) - TC Mounting | ①32~φ125 | 125 | 75 | 125 | |||||||||||||||
| ①160~Φ200 | 120 | 165 | 165 | ||||||||||||||||
| Minimum Stroke (mm) - Other Mounting | Φ32~φ125 | 30 | 50 | 50 | |||||||||||||||
| ①160~Φ200 | 110 | 165 | 165 | ||||||||||||||||

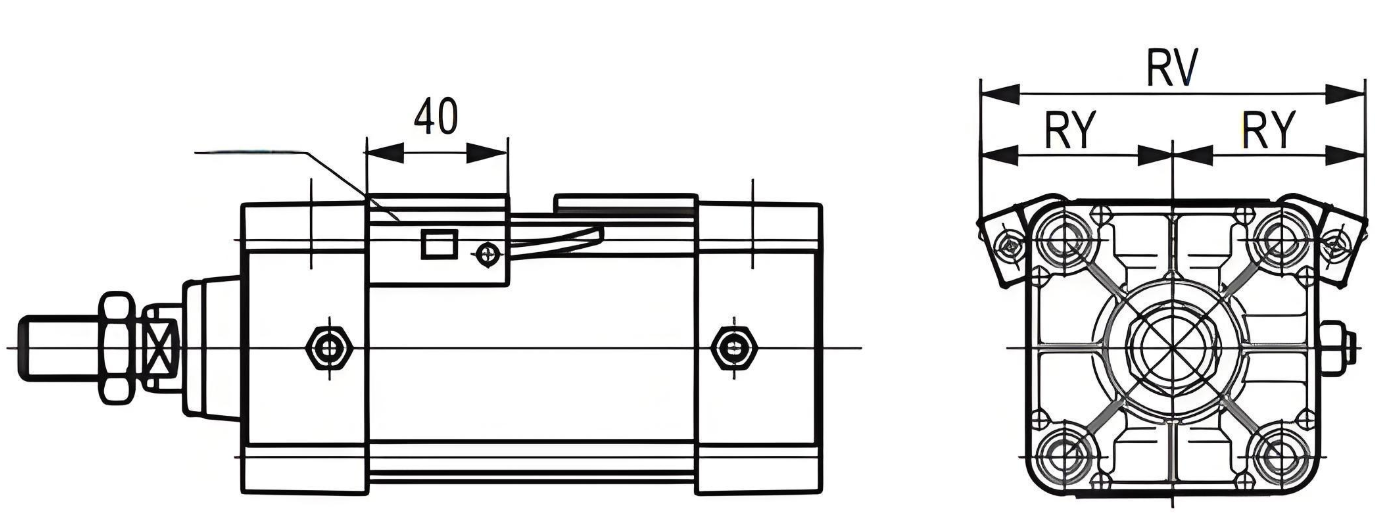

1.When installing a switch at the middle position of a cylinder of the type with switch,
the maximum speed of the cylinder should be within 300mm/sec,
so that the response speed of loads such as relays can match, and the operation is in good condition.
2.The switch must be used with a load; otherwise, direct connection to any power supply will cause it to burn out.
3.When the minimum stroke of a cylinder of the type with switch is less than the specified value in the above table,
an imported switch can be installed. Please add the words “(Imported Switch)” after the model when placing an order, and the price will be extra.
2. Main Technical Parameters of Valve
| Mark | A | B | D | C | E | P | |||||
| Type | Single Solenoid | Double Solenoid | |||||||||
| 2-Position | 3-Position | ||||||||||
| Push Type when Energized | Pull Type when Energized | Self-holding Type | Closed Center Type | Exhaust Center Type | Pressure Center Type | ||||||
| Rated Voltage | AC 220V 50HZ | ||||||||||
| DC 24V | |||||||||||
| Allowable Voltage Fluctuation | ±10% | ||||||||||
| Bore of Cylinder with Valve (mm) | Φ32,①40,φ50,Φ63,Φ80,Φ100,Φ125 | φ160,Φ200,Φ250 | |||||||||
| Inrush Current | AC220V | 45mA | 100mA | ||||||||
| Holding Current | AC220V | 34mA | 75mA | ||||||||
| DC24V | 295mA | 300mA | |||||||||
| Power Consumption | AC220V | 7.5VA | 16.5VA | ||||||||
| DC24V | 7W | 7.2W | |||||||||
| Insulation Class | B | ||||||||||
| Working Medium | Air, Dry Air | ||||||||||
| Lubrication | Not Required (Oil Lubrication Optional) | ||||||||||
| Operating Pressure Range | 1.5～8bar | ||||||||||
| Proof Pressure | 12 bar | ||||||||||
3. Main Technical Parameters of Switch
| Mark | J | H | L | ||||||||
| Model (with 1.5m Flexible Cable) | FD-21R | (Φ32～125)FD-19RV | (φ160～200)FD-43RV | ||||||||
| Operating Voltage Range | 5~240V DC/AC | 5~240V DC/AC | |||||||||
| Operating Current Range | 100mA(max) | 1000mA | |||||||||
| Maximum Contact Capacity | 10W(max) | 50W(max) | |||||||||
| Leakage Current | 0 | 0 | |||||||||
| Indicator Light | Red LED | Yellow LED | |||||||||
| Operation Time | |||||||||||
| Release Time | |||||||||||
| Shock Resistance | 30G | 30G | |||||||||
| Operating Temperature Range | -10 ～ +70℃ (under non-freezing conditions) | ||||||||||
| Storage Temperature Range | -20 ～ +80℃ (under non-freezing conditions) | ||||||||||
| Applicable Load | Sequencers, Mini Relays, Subminiature Relays | Mini Relays, General Relays, Mini Solenoid Coils, Indicator Lights and Sequencers | |||||||||

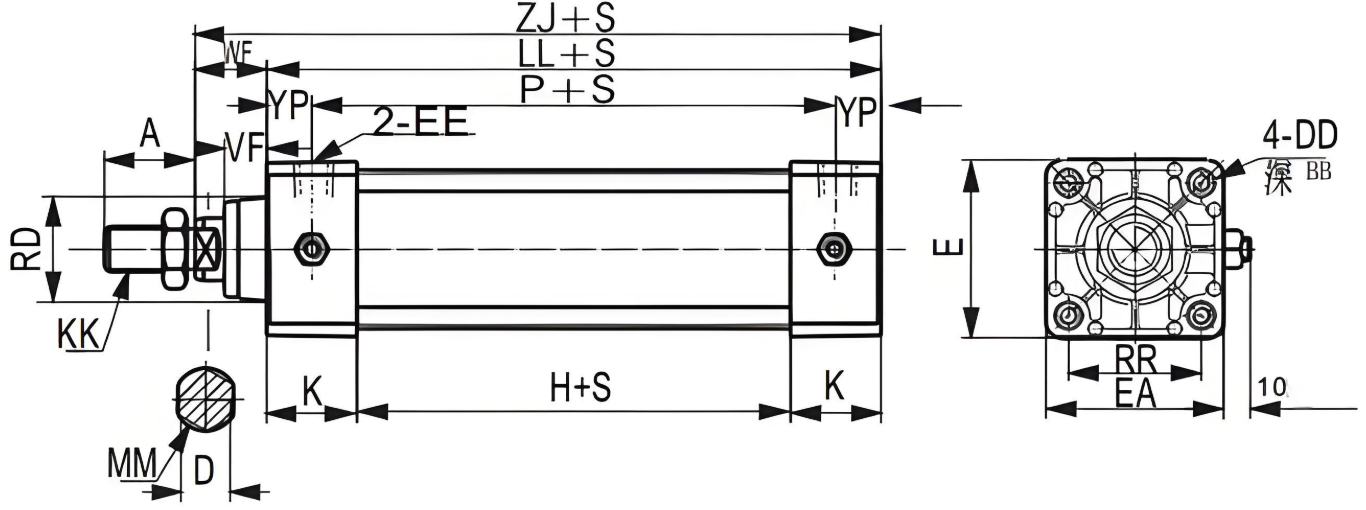

1.SD (Basic Type)

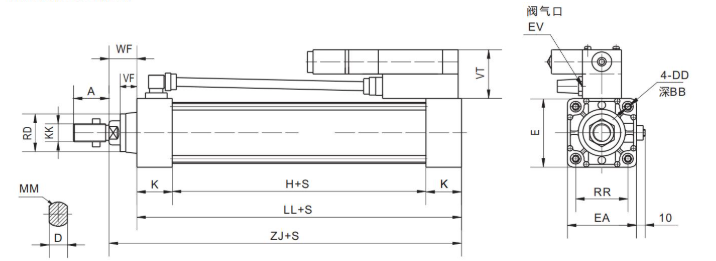

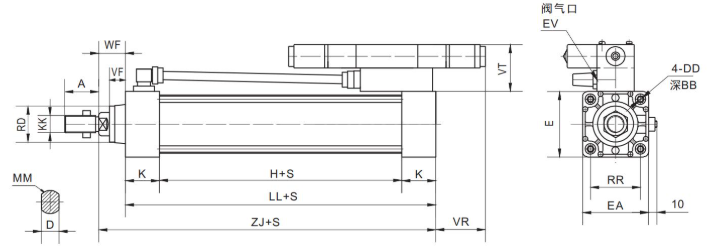

10A-5V (Type with Valve)
1.When the Φ160 cylinder is in TC or TCC mounting, VT=180.

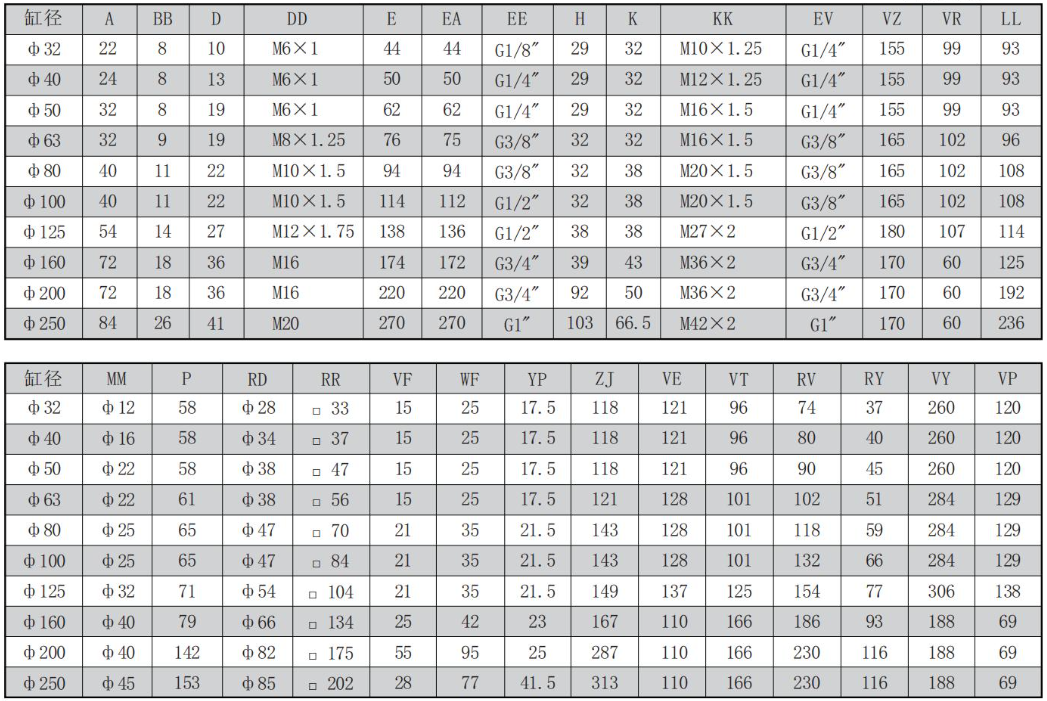

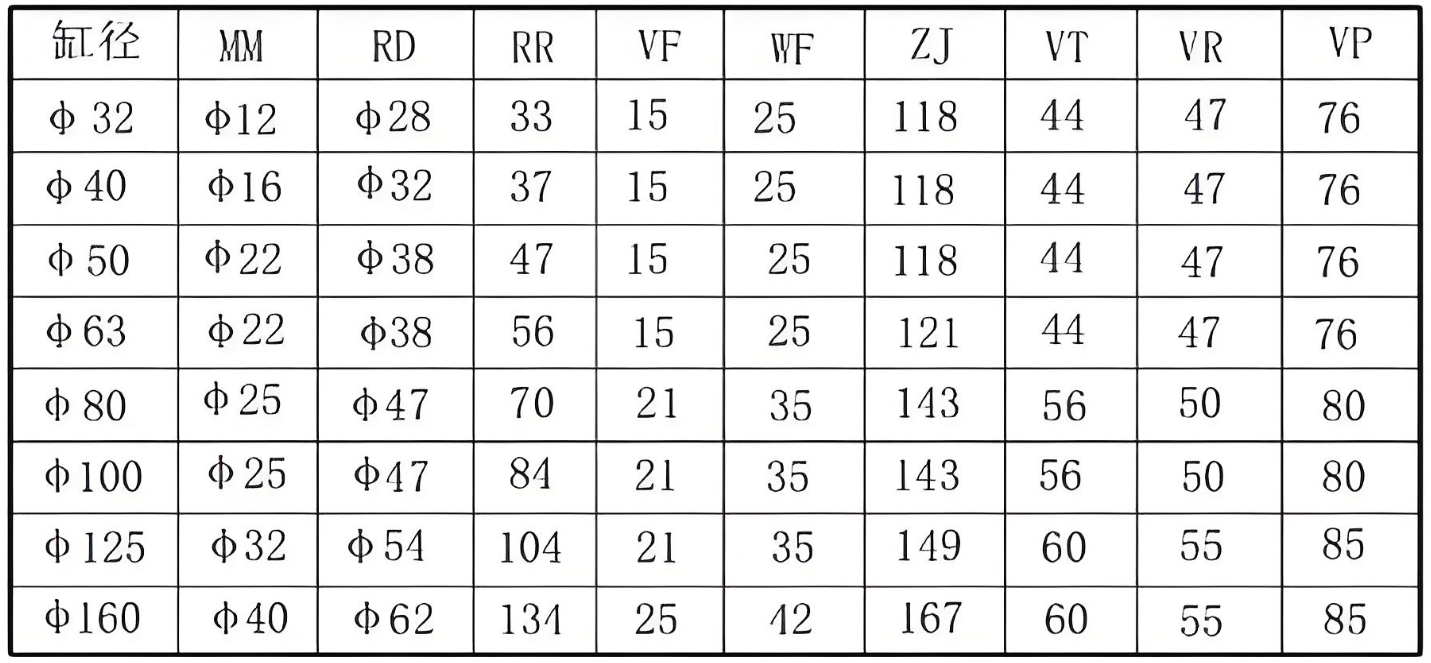

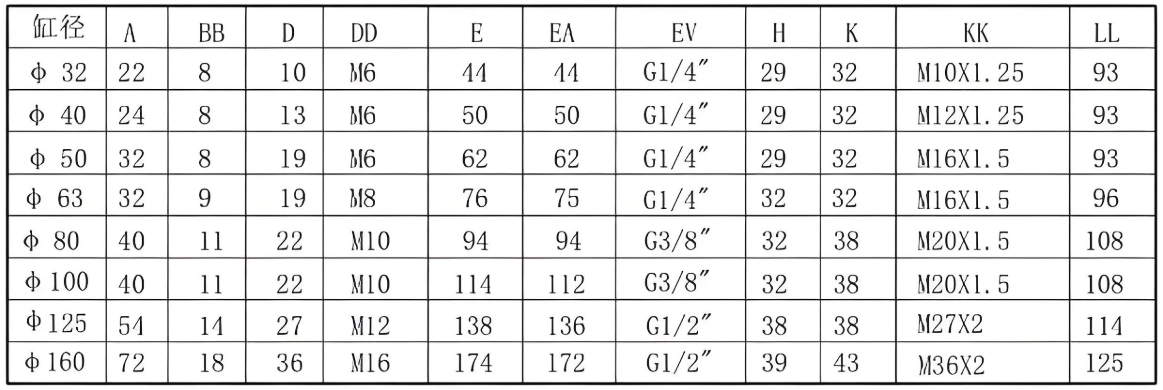

2.The installation dimensions of the cylinder can be calculated by referring to this table and the accessory dimensions of the 10A-5 series cylinders.
LA (Horizontal Foot Mount)
LB (Axial Foot Mount)
FA (Front Flange Mount)
FB (Rear Flange Mount)
CA, CC (Single Lug Mount)
CB (Double Lug Mount)
TC (Center Trunnion Mount)
CBB (Double Lug Pedestal Mount)
TCC (Trunnion Pedestal Mount)

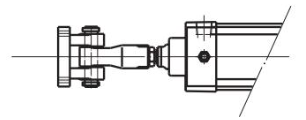

VI. Connection Forms
Rod End Fork Type (RT-Y)
Rod End Rod Socket Type (RT-CB)

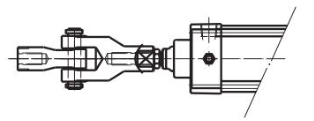

Rod End Fork Rod Type (RY-T)
Single Lug Fork Type (HCA-Y)
Single Lug Socket Type (HCA-CB)
Rod End Fork Socket Type (RY-CA)
Double Lug Rod Type (HCB-T)
Double Lug Socket Type (HCB-CA)

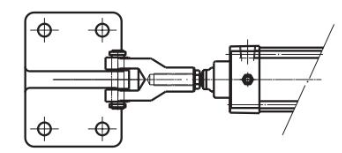

Rod End Fork Socket Type (RY-CBB)
1.For relevant dimensions, please refer to the dimension table of accessories for the 10A-5 series cylinders.
2.The intermediate trunnion of TC (Center Trunnion Type) can be installed at any position on the cylinder barrel between the inner end faces of the front and rear end caps.
VII. Accessory Dimension Table

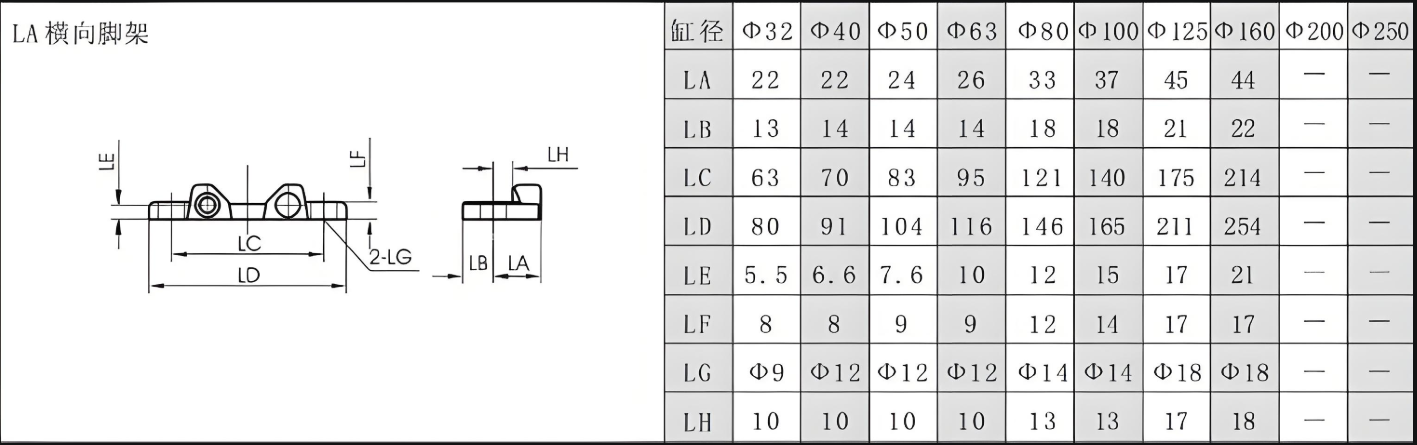

LA Horizontal Foot Bracket:

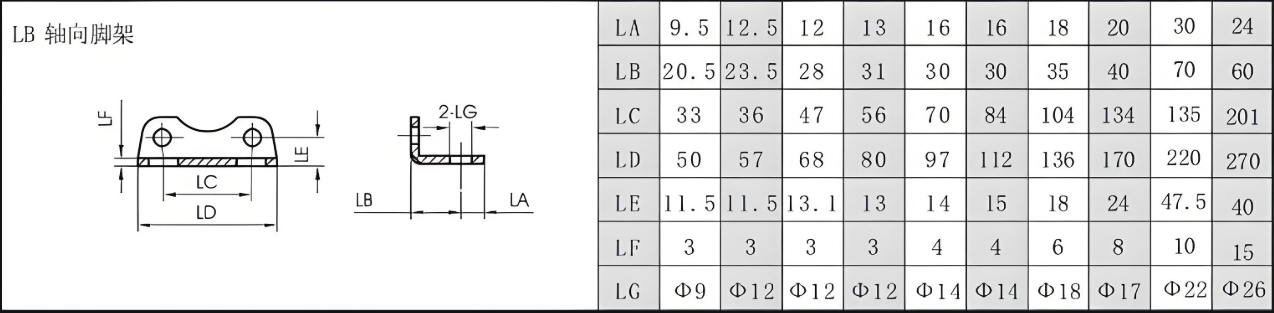

LB Axial Foot Bracket:

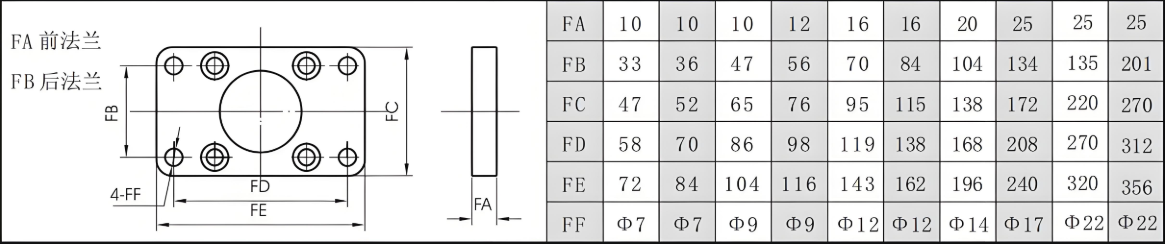

FA Front Flange, FB Rear Flange:

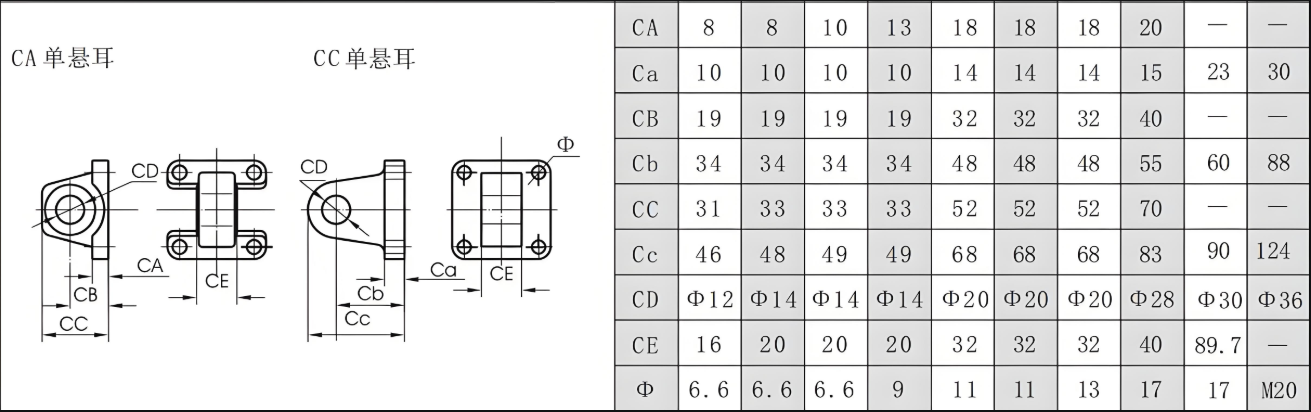

CA Single Lug, CC Single Lug:

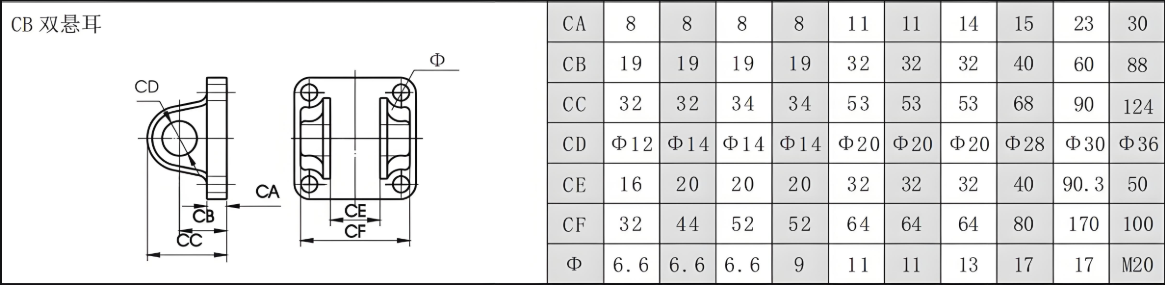

CB Double Lug:

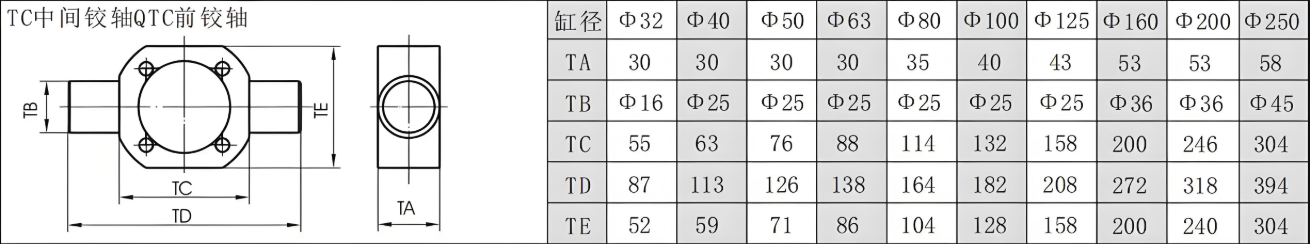

TC Center Trunnion QTCI Front Trunnion:

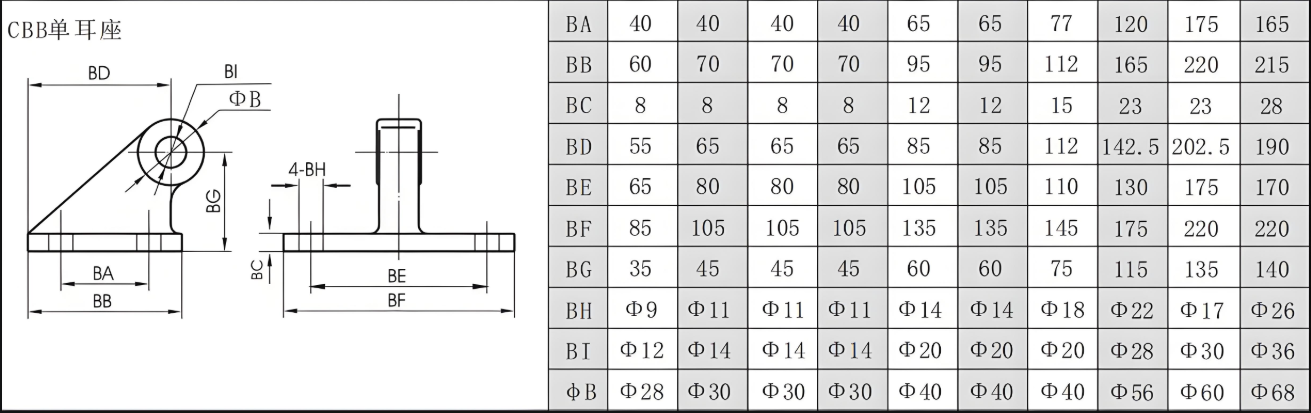

CBB Single Lug Pedestal:

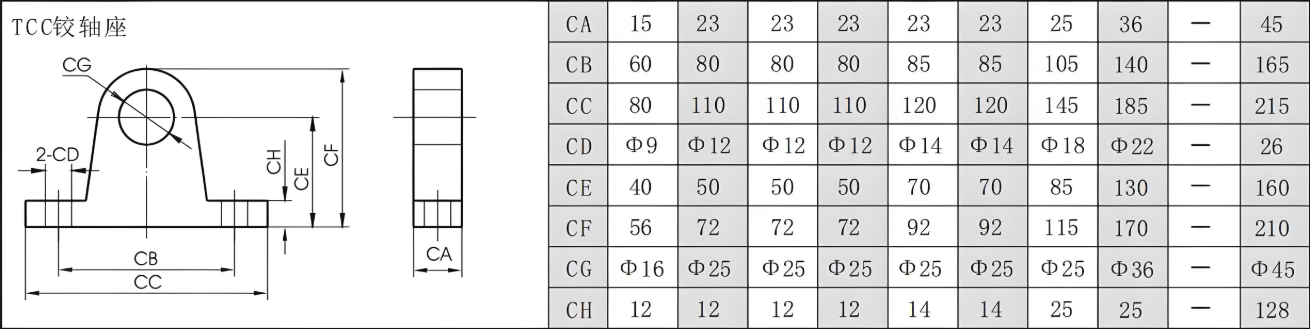

TCC Trunnion Pedestal:
T Single Lug Connecting Rod,Y Fork-shaped Connecting Rod with Pin,
S Spherical Single Lug Connecting Rod,F Universal Joint Connecting Rod
1.In this cylinder series, the valve is installed in a lay - flat manner.
The coil is not easily damaged during transportation and installation, and it occupies less space.
2.The main components of this cylinder series are made of aluminum alloy, so it is lightweight.
The cylinder barrel undergoes hard anodic oxidation, making it particularly wear - resistant and having a long service life.
3.The mounting dimensions of this cylinder series comply with ISO (International Standard Organization) standards.
4.This cylinder series is oil - free lubricated (oil lubrication is also optional), avoiding oil - air contamination and allowing the lubricator to be omitted.
5.The mounting accessories of this cylinder series are the same as those of the 10A - 2 cylinder.
II. Graphical Symbols:
Valve-Equipped Type - Push Type when Energized
Valve-Equipped Type - Pull Type when Energized
Valve-Equipped Type - Self-holding Type
3-Position Closed Center Type
3-Position Exhaust Center Type
3-Position Pressure Center Type
Valve-Equipped & Switch-Equipped Type - Push Type when Energized

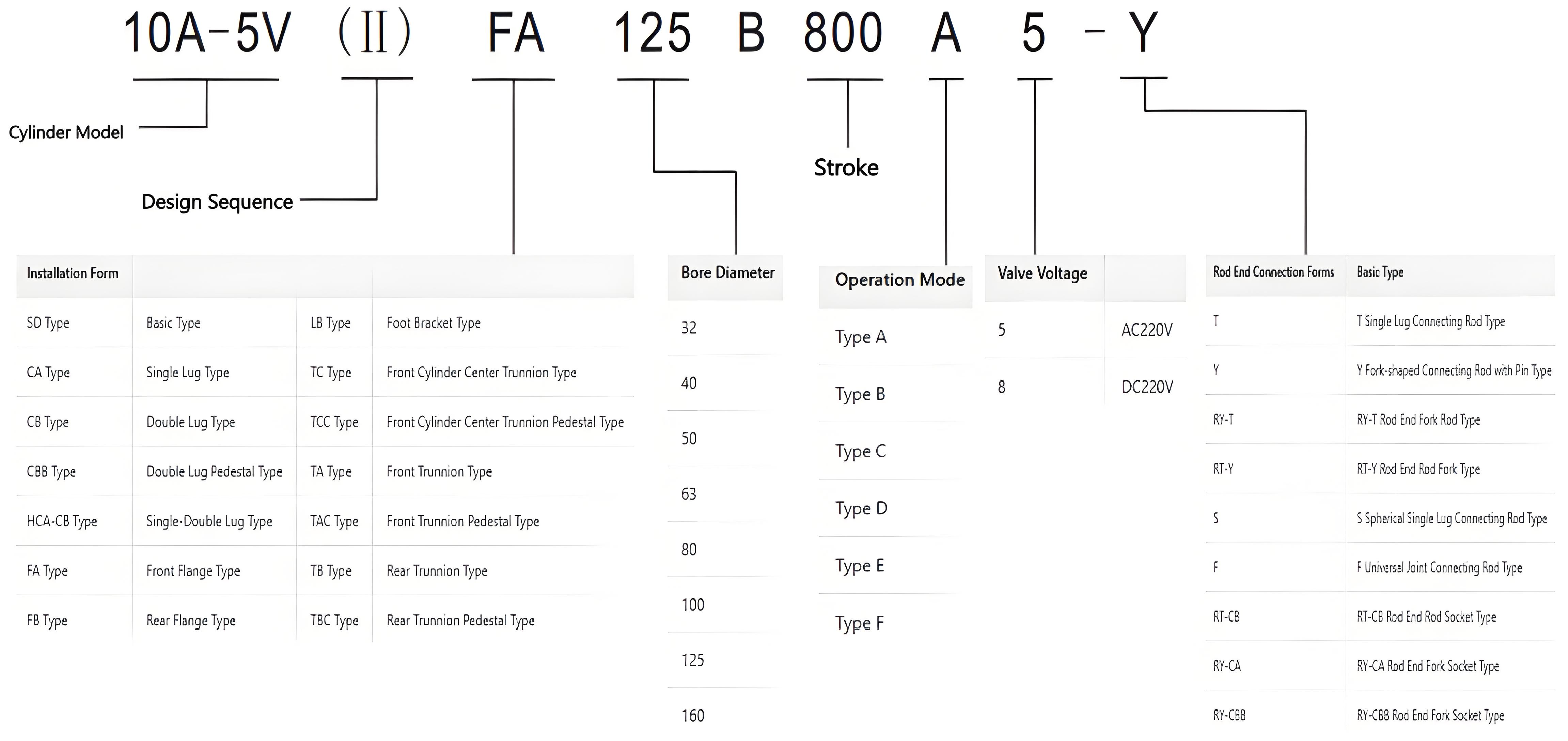

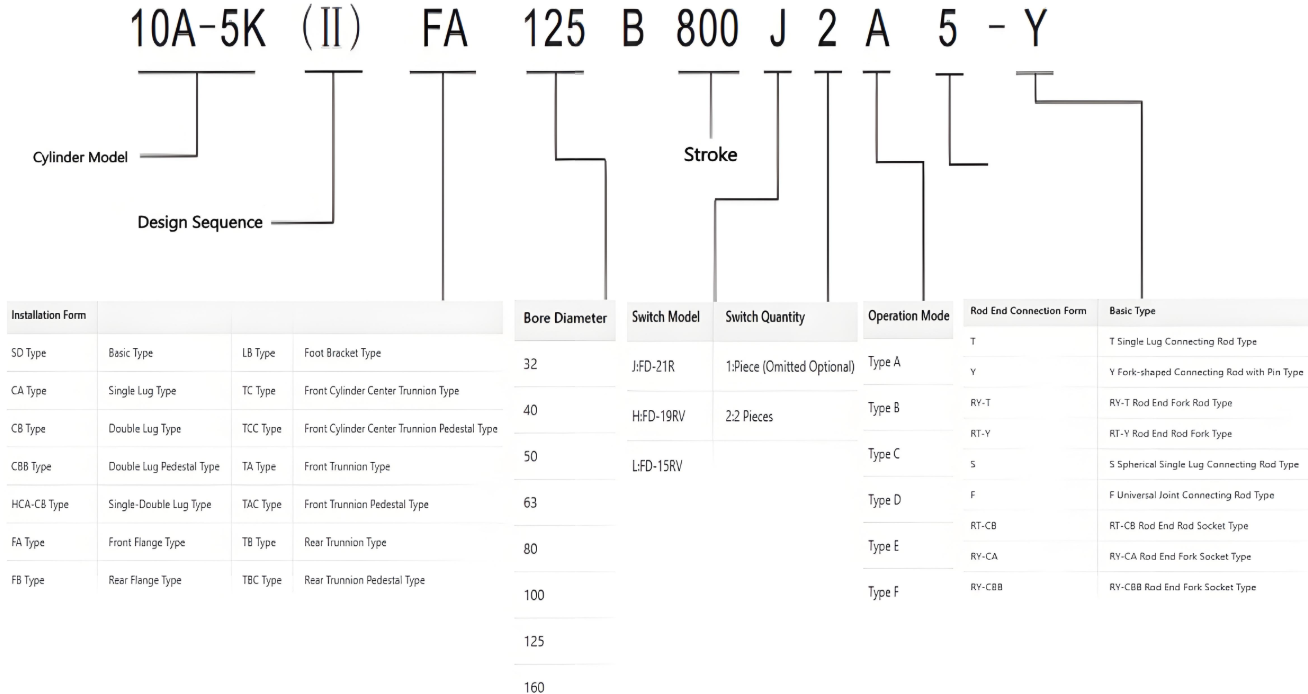

III. Model Representation Method:
Valve-Equipped Type
FA:
| Installation Form | |||
| SD Type | Basic Type | LB Type | Foot Bracket Type |
| CA Type | Single Lug Type | TC Type | Front Cylinder Center Trunnion Type |
| CB Type | Double Lug Type | TCC Type | Front Cylinder Center Trunnion Pedestal Type |
| CBB Type | Double Lug Pedestal Type | TA Type | Front Trunnion Type |
| HCA-CB Type | Single-DoubleLug Type | TACType | Front Trunnion Pedestal Type |
| FA Type | Front Flange Type | TB Type | Rear Trunnion Type |
| FB Type | Rear Flange Type | TBC Type | Rear Trunnion Pedestal Type |
125: A: 5:
| Bore Diameter | Operation Mode | Valve Voltage | |||
| 32 | Type A | 5 | AC220V | ||
| 40 | Type B | 8 | DC220V | ||
| 63 | Type C | ||||
| 80 | Type D | ||||
| 100 | Type E | ||||
| 125 | TypeF | ||||
| 160 | |||||
Y:
| Rod End Connection Forms | Basic Type |
| TSingle LugCcnnecting Rlad Type | |
| Y | Y Fork-shaped Connecting Rod with Pin Type |
| RY-T | RY-T Rod End Fork Rod Type |
| RT-Y | RT-Y Rad End Rod Fork Type |
| 5 | SSpherical Single Lug Connecing RadType |
| F | FUninersl Joint Connecting Rod Type |
| RT-CB | RT-CB Rod End Rod Socket Type |
| RY-CA | RY-CA Rod End Fork Socket Type |
| RY-CBB | RY-CBB Rod End Fork Soket Type |
Valve-Equipped & Switch-Equipped Type
FA:
| Installation Form | |||
| SD Type | Basic Type | LB Type | Foot Bracket Type |
| CA Type | Single Lug Type | TC Type | Front Cylinder Center Trunnion Type |
| CB Type | Double Lug Type | TCC Type | Front Cylinder Center Trunnion Pedestal Type |
| CBB Type | Double Lug Pedestal Type | TA Type | Front Trunnion Type |
| HCA-CB Type | Single-DoubleLug Type | TACType | Front Trunnion Pedestal Type |
| FA Type | Front Flange Type | TB Type | Rear Trunnion Type |
| FB Type | Rear Flange Type | TBC Type | Rear Trunnion Pedestal Type |
1.Main Technical Parameters of the Cylinde
| Cylinder Type 10A-5V(Ⅱ)10A-5V(Ⅱ) | ||||||||
| Cylinder Bore Diameter (mm) | φ32 | φ40 | φ50 | φ63 | φ80 | φ100 | φ125 | φ160 |
| Maximum Stroke (mm) | 500 | 800 | 1000 | |||||
| Operating Pressure Range (bar) | 2-8 | |||||||
| Proof Pressure (bar) | 12 | |||||||
| Operating Speed Range (mm/sec) | 50-500 | |||||||
| Operating Temperature Range (℃) | -25~+80 (under non-freezing conditions) | |||||||
| Working Medium | Clean, dry, lubricated compressed air | |||||||
| Lubrication | Not required (Lubrication optional) | |||||||
| Cushion | Adjustable cushion on both sides | |||||||
| Cushion Stroke (mm) | 20 | 25 | 28 | |||||
When the cylinder stroke exceeds the maximum length in the above table, it can also be produced. However, for reliable operation, the internal structure should be designed separately depending on the nature of the load. In this case, the cylinder length constant will increase accordingly.
| Symbol | A | B | C | D | E | F | |
| Valve Type | Single Solenoid Control | Double Solenoid Control | |||||
| 2/2 Valve | 3/3 Valve | ||||||
| Push Type when Energized | Pull Type when Energized | Self-holding Type | Closed Center Type | Exhaust Center Type | Pressure Center Type | ||
| Rated Voltage | AC220V 50Hz | ||||||
| DC24V | |||||||
| Allowable Voltage Fluctuation | ±10% | ||||||
| Bore Diameter of Valve-Equipped Cylinder (mm) | φ32 φ40 φ50 φ63 φ80 φ100 φ125 φ160 | ||||||
| Starting Current | AC220V | 45mA | |||||
| DC24V | 350mA | ||||||
| Holding Current | AC220V | 34mA | |||||
| DC24V | 295mA | ||||||
| Power Consumption | AC220V | 7.5VA | |||||
| DC24V | 7W | ||||||
| Insulation Class | B | ||||||
| Working Medium | Clean, dry, lubricated compressed air | ||||||
| Lubrication | Not required (Lubrication optional) | ||||||
| Operating Pressure Range | 2--8(bar) | ||||||
| Proof Pressure (bar) | 12bar | ||||||
| Symbol | J | H | L | ||||
| Model (with 1m Cable) | FD-21R | (φ32--125)FD-19RV | (φ160--200)FD-43RV | ||||
| Operating Voltage Range | 5--240V DC/AC | 5--240V DC/AC | |||||
| Operating Current Range | 100mA(max) | 1000mA(max) | |||||
| Maximum Contact Capacity | 10W(max) | 50W(max) | |||||
| Leakage Current | 0 | 0 | |||||
| Residual Pressure Drop | 2.5V Max@100mA DC | 1.8V Max@1000mA DC | |||||
| Indicator Light | Red LED | Yellow LED | |||||
| Operation Time | ≤1msec | ≤1msec | |||||
| Recovery Time | ≤1msec | ≤1msec | |||||
| Shock Resistance | 30G 30G | ||||||
| Operating Temperature Range | -10--+70℃ (under non-freezing conditions) | ||||||
| Storage Temperature Range | -20--+80℃ (under non-freezing conditions) | ||||||
| Applicable Load | Programmable Logic Controller (PLC), Small Relay, Low-power Solenoid Valve | ||||||
| Protection Class | IP67 | ||||||

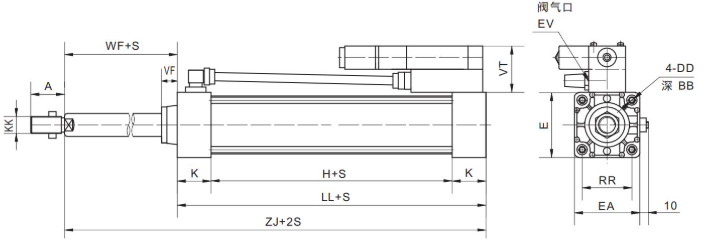

V. Outline and Installation Dimensions:
Valve-Equipped Type - Push Type when Energized
Valve-Equipped Type - Pull Type when Energized
Valve-Equipped Type - Self-holding Type
Valve-Equipped Type with 3/3 Valve
|
OSP-P High speed mechanical rodless cylinder with guide rail high speed slider
SC Series Standard Pneumatic Air Cylinder Double Acting Series Adjustable Cushion
DNC VDMA / ISO6431 Pneumatic Air Cylinder Double Acting Cylinder Standard
QGaB QGbB Piston rod diameter is larger than the standard size with good rigidity and can bear large loads
QGY Compact Air Cylinder heavy type Direct installation
QGY-M Compact Air Cylinder Heavy Type Bore 20-125
QGA QGB Big Bore Air Cylinder 32 to 400 with Cushion and CA CB TC Flange
10A-5ST adjustable air cylinder Heavy type long service life
10Y-2 ISO Mini Air Cylinder Extremely Wear-resistant long service life
10Y-1 mini Stainless steel air cylinder with valve and switch design 10bar
