Fiber Optic, Pre-Terminated Outlet Kit (PTO)

Fiber Optic, Pre-Terminated Outlet Kit (PTO)

Fiber Optic, Pre-Terminated Outlet Kit (PTO)
Fiber Optic, Pre-Terminated Outlet Kit (PTO)
Categories Fiber Optic Termination Box
Brand Name: DF/OEM/Nuetral
Model Number: TK-PC-48F-SC-OS2-50M
Certification: CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin: China, Shenzhen
MOQ: negotiable
Price: negotiable denpend on QTY
Payment Terms: Western Union, T/T, MoneyGram/Paypal
Supply Ability: 1000PCS/Day
Delivery Time: 5-9 working days depends on QTY
Packaging Details: Blister box+Carton
Product Name: Fiber Optic, Pre-Terminated Outlet Kit (PTO)
Fiber Type: G657A2
Mode field diameter: 1310/1550
Cladding diameter: 125.0±0.7
Coating diameter: 242 ± 7
Attenuation Coefficient: <=0.35
Proof stress level: ≥100
Optical Fiber Fiber count: 1/2/4Natural color/Red Blue Green Yellow
Subunit Material: LSZH
Strength Member Material: Aramid yarn
Fiber Brand: Corning, YOFC, OFS, Draka
Contact Now
Company Info.
TAKFLY COMMUNICATIONS CO., LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Fiber Optic, Pre-Terminated Outlet Kit (PTO)

Fiber Optic, Pre-Terminated Outlet Kit (PTO)

Description

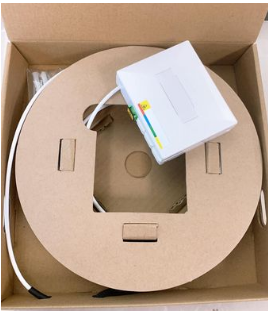

The Pre-Terminated Outlet kit (PTO) is a product configured for speed and ease of installation in Fiber to the Home (FTTH) and Fiber to the Business (FTTB) deployments. The PTO consists of a low-profile fiber optic outlet box loaded with adapters and a pre-terminated length of cable,conveniently packaged with a cable spool inside a protective carton.


With the PTO, installing the last drop cable and fiber optic outlet in a FTTx deployment is a very simple and fast process. The installer simply removes the spool-loaded cable from the carton and attaches the pre-terminated outlet to the wall. The PTO outlet is mounted to the wall using screws, without opening the outlet and disturbing the fiber terminations inside. Alternatively, the PTO can be snapped onto a standard DIN rail.


PTO installation does not require any special tools or skills, and eliminates the need for termination or splicing in the outlet. The result is a decrease in the time, cost and failure rate of installations per customer.

Product Features​
  • SC or LC connectors and shuttered adaptors
  • Available in UPC and APC end face finish
  • Singlemode G657A2 fiber, others o request
  • Fast tool less installation
  • 4mm indoor LSZH cable, others on request
  • Different cable lengths
  • 1, 2 or 4 fibers
  • Wide temperature range
  • RoHS compliant
  • Optical cable to meet CPR Dca compliant
Product Specifications
ItemUnitSpecification
G. 657A2
Mode field diameter1310nmmm8.6 ± 0.4
1550nmmm9.6 ± 0.5
Cladding diametermm125.0 ± 0.7
Cladding non-circularity%£0.8
Core concentricity errormm£0.5
Coating diametermm242 ± 7
Coating/cladding concentricity errormm£12
Cable cut-off wavelengthnm£ 1260
Attenuation Coefficient1310nmdB/km£0.35
1550nmdB/km£0.21
Macro-bend loss (1 turn, 10mm radius)1550nmdB/km£0.75
1625nmdB/km£1.5
Proof stress levelkpsi≥100

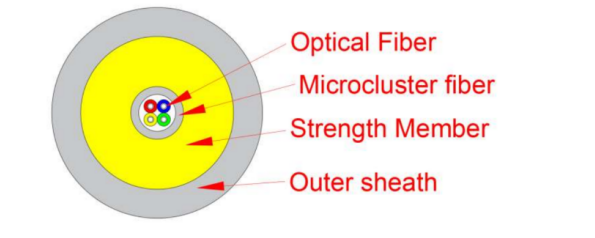

Cable Structure
ItemsDescriptions
Optical FiberFiber count124
ColorNatural colorRed Blue Green Yellow

Subunit


ColorRedRed /BlueRed
MaterialLSZH
Diameter1.0mm Micro cluster fiber1.1mm Micro cluster fiber
Strength MemberMaterialAramid yarn
SheathMaterialLSZH Anti-UV
ColorWhite
Diameter4.0±0.2mm
Product Pictures
Mechanical and Environmental Characteristics
ItemsDescriptions
Tensile Strengthshort-term200N
long-term100N
Crush Resistanceshort-term400N/100mm
long-term200N/100mm
Bending RadiusDynamic≥20D
Static≥10D
Temperature Range-20℃-+70℃

Technical data for Outlet

DescriptionValue
Dimensions (H x W x D)83 x 100 x 30 mm
Adaptor typeSC simplex, shuttered
Fiber capacity4 fiber
Connector IL0.30 dB
Connector RL60 dB (APC), 50 dB (UPC)
Why Choose TAKFLY
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experience
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
FAQ
Q1: How can I get your catalogue and price list?
A1: Please let us know your email or contacts from website directly for our catalogue and price list
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container load of mixed goods
Q3: How much will the shipping charges be?
A3: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to make an appointment
Q5: What if there is quality problem when we get the goods?
A5: If there is quality problem when you un-package the goods, you can take pictures for our reference, our QC department will check the problem and give best solutions to you, Furthermore we will also take action to improve the quality in future
Q6: What is your terms of packing?
A6: Generally, we pack our goods in blister box and cartons, and can also accept customize packing by customers
Q7: What is your terms of payment?
A7: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance
Q8: What is your terms of delivery?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, it will take 5-7 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order
Q10: Can you produce according to the samples?
A10: Yes, we can produce by your samples or technical drawings
If you're interested in our products or have any doubt, feel free to contact me at any time!
