This series of displays features high-definition industrial A+
grade LCD panels, delivering detailed image quality and uniform
brightness. Combined with 3D digital noise reduction technology, it
effectively reduces visual noise and interference, ensuring image
stability and color purity for a more authentic and clear visual
experience. It is particularly suitable for high-stability display
scenarios such as industrial monitoring, control rooms, and factory
information dashboards.
In terms of touch performance, it achieves a 5ms ultra-fast
response time and offers 35 million touch cycles, supporting
high-frequency operation without drift. A single calibration
ensures long-term stable use.
With strong anti-interference capability and excellent
high-temperature resistance, it operates reliably in environments
with high dust, strong electromagnetic interference, and extreme
temperature/humidity conditions, making it a truly industrial-grade
display solution.
The housing is constructed using a cold-rolled metal unibody
process, which not only enhances the structural hardness and
pressure resistance of the entire unit but also improves heat
dissipation efficiency and corrosion resistance. Whether in
high-temperature workshops or oily/dusty industrial environments,
it ensures stable and safe equipment operation.
Additionally, the industrial resistive touch display supports
external VGA extended display, featuring synchronous dual display
or independent display functions to meet multi-tasking
requirements. With lag-free performance, it provides a smooth
experience for real-time monitoring and data visualization in
industrial settings.

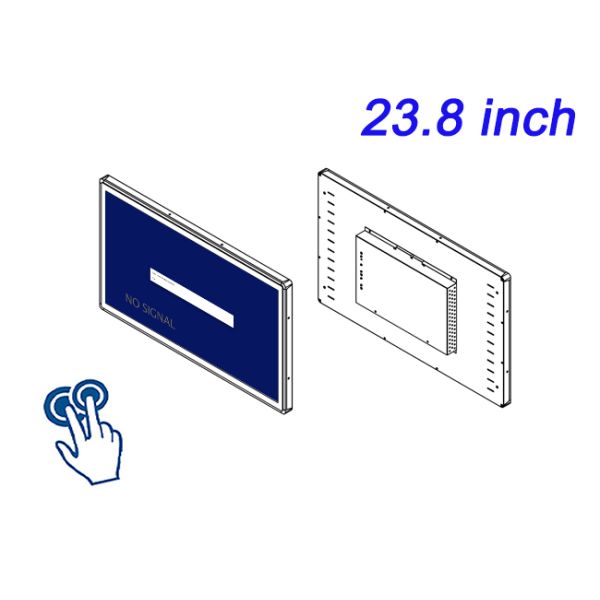

| LCD Panel Parameters | Screen Size | 23.8 Inch |
| Display Area | 528.2 mm.(Height) X 297.6(Width)mm. |
| Aspect Ratio | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 |
| Display Color | 16.7m , 99% sRGB |
| Brightness | 250cd/m² |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) |
| Response Time | 14Ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
| PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor |
| Touch Points | 10 Points |
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof |
| Glass 3 mm. Optical mount to reduce parallax |
| Glass Transmission | >85% (Higher light transmission depends on glass coating
technology For example AR/AG) >85% |
| Response Speed | < 6ms |
| Touch Accuracy | More than 90% of the touch area ±2 mm |
| Touch Method | Inch Stylus |
| Output Format | Coordinate Output |
| Click Time | Unlimited |
| Smallest Touch Size | 5 mm |
| Long-lasting Durability | Yes, Available |
| Touch Interface | USB |
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH |
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH |
Audio Parameters
(External Speaker Option) | Audio system | Stereo |
| Speaker size | ≈ 99 x 45 x 20 mm |
| Impedance | 8 Ohm |
| Power | 2 x 5 Watt |
| Loudness | > 80 Decibel |
| Interface | 4-pin connector |
| Onboard Interface | HDMI Input | 1 |
| VGA Input | 1 |
| DVI Input | 1 |
| USB Type B or any desired USB Type | 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 45 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |
| Accessories | Power Cord Length | 1.5m |
| HDMI Cable Length | 2m |
| USB-A to USB-B Cable Length | 1.5m |
| Stereo Speaker Size with Connector | 99*45*20mm |
| Stereo Speaker Length | 1.5m |

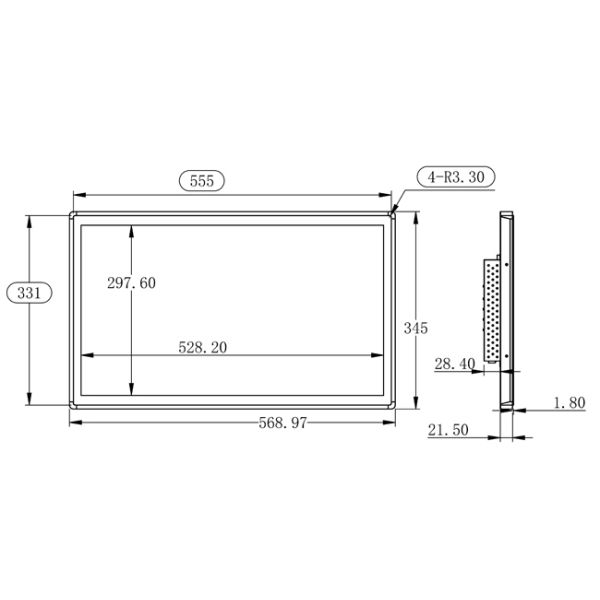

| Package Size | Device Dimensions | 568.97 X 345 X 51.7mm |
| Net Weight | 8 Kilogram |
| Package Size | 62.7 X 40.4 X 10.5Centimeter |
| Gross Package Weight per Unit | 9 Kilogram |
Thanks to its high durability, excellent touch performance, and
outstanding visual effects, this display is widely used in
industrial control systems, self-service terminals, human-machine
interfaces, intelligent equipment, and special-purpose devices,
serving as a robust tool for industrial informatization
construction.
