The device features a fully aluminum alloy unibody rear shell,
offering high hardness, compression resistance, and corrosion
resistance, effectively protecting the equipment from damage under
extreme conditions such as heavy pressure, vibration, and oil
contamination.
The embedded installation design ensures a tight fit between the
device and the terminal panel, not only enhancing neatness and
aesthetics but also improving overall sealing to effectively
prevent dust and moisture infiltration.
The panel complies with the IP65 flat industrial-grade protection
standard, providing water, dust, oil, and static electricity
resistance. Even in harsh environments with high dust,
electromagnetic interference, extreme temperatures, or oil fumes,
it maintains stable operation.
The fanless design relies on the aluminum alloy rear cover heat
conduction and dissipation system for silent cooling, effectively
extending the lifespan of the motherboard and internal components,
and ensuring 24/7 uninterrupted stable operation.
In terms of display, it is equipped with a 350 cd/m²
high-brightness and 3000:1 high-contrast industrial LCD screen,
ensuring clear readability even under strong light conditions and
delivering more realistic detail representation. The touch
operation is sensitive and precise, supporting multi-touch to meet
efficient operational needs.
Regarding system compatibility, the Fully Enclosed Computer
Resistance Display supports multiple operating systems, such as
Windows, Linux, Ubuntu 12.04, and 14.04, and can widely adapt to
various industrial configuration software and applications,
significantly enhancing system scalability and project
implementation efficiency.

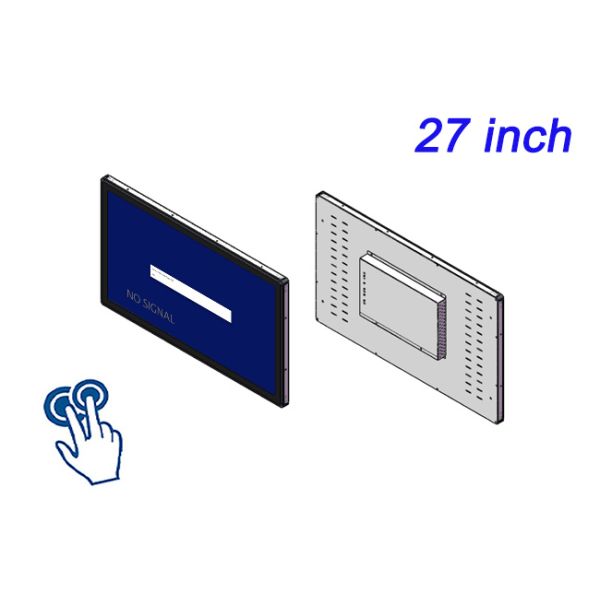

| LCD Panel Parameters | Screen Size | 27 Inch |
| Display Area | 597.6 mm (Height) X 336.15 mm (Width) |
| Aspect Ratio | 16 : 9 | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 | 3840 X 2160 |
| Display Color | 16.7m , 99% sRGB | 1.07B , 95% DCI-P3 |
| Brightness | 300cd/m² | 400cd/m² |
| Contrast Ratio | 1000 : 1 | 1000 :1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) | 89°/89°/89°/89°(Type)(CR≥10) |
| Response Time | 14ms | 14ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
| PCAP Touchscreen Panel Parameters | Touch Pattern | Capacitive Touchscreen Capacitive Projected |
| Touch Points | 10 Points |
| Cover Glass | Morse Glass Size 7 Physically reinforced to prevent explosion |
| Glass 3 mm. Optical mount to reduce parallax |
| Glass Transmission | >85% (Higher light transmission depends on glass coating
technology For example AR/AG) >85% |
| Response Speed | < 6ms |
| Touch Accuracy | More than 90% of the touch area ±2 mm |
| Touch Method | Inch Stylus |
| Output Format | Coordinate Output |
| Click Time | Unlimited |
| Smallest Touch Size | 5 mm |
| Long-lasting Durability | Yes, Available |
| Touch Interface | USB |
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH |
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH |
Audio Parameters
(External Speaker Option) | Audio system | Stereo |
| Speaker size | ≈ 99 x 45 x 20 mm |
| Impedance | 8 Ohm |
| Power | 2 x 5 Watt |
| Loudness | > 80 Decibel |
| Interface | 4-pin connector |
| Onboard Interface | HDMI Input | 1 |
| VGA Input | 1 |
| DVI Input | 1 |
| USB Type B or any desired USB Type | 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 45 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |
| Accessories | Power Cord Length | 1.5m |
| HDMI Cable Length | 2m |
| USB-A to USB-B Cable Length | 1.5m |
| Stereo Speaker Size with Connector | 99*45*20 mm |
| Stereo Speaker Length | 1.5m |
| Package Size | Device Dimensions | 652 X 392 X 51.7 mm. |
| Net Weight | 10 Kilogram |
| Package Size | 72.3 X 47 X 12Centimeter |
| Gross Package Weight per Unit | 11 Kilogram |
Whether in high-temperature and high-humidity factory workshops,
oily food production lines, or environments with frequent
electromagnetic interference like server rooms, the Fully Enclosed
Computer Resistance Display consistently proves to be a reliable
guarantee in intelligent industrial terminals with its robust
performance, stringent protection, and dependable operation.
