| Categories | Hightop Mini Excavator |
|---|---|
| Brand Name: | Hightop |
| Model Number: | HT35 |
| Certification: | CE,EPA,ISO,TUV |
| Place of Origin: | China |
| MOQ: | 1 set |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 100 set per month |
| Delivery Time: | 5-14 work days |
| Packaging Details: | Wooden case |

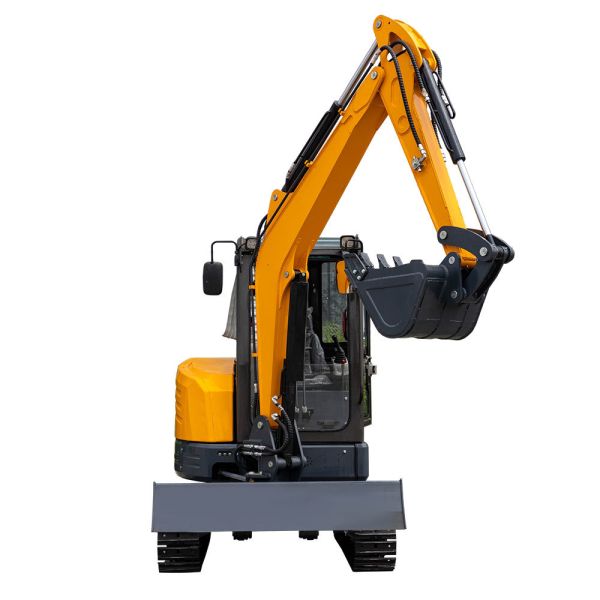

| Product Name: | HT35 Mini Excavator |
| Total length/transportation length(A): | 5029mm |
| Total width(B): | 1720mm |
| Upper width(D): | 1554mm |
| Total height (shed roof/cab roof)(C): | 2580mm |
| Company Info. |
| Shandong Hightop Group |
| Verified Supplier |
| View Contact Details |
| Product List |
Detail description
1.The cab of 3.5 tons compact excavator adopts one-piece steel structure design with safe and reliable structure, equipped with cold and warm air-conditioning, and in order to further improve the comfort, the space is increased to the maximum under the same level of cab space standard.
2.Hightop 3.5T mini excavator's working device has the function of yawing, which can be operated in combination with upper slewing, and the working device has a new optimized design to strengthen the yawing body, and the life expectancy is greatly improved.
3.HT 3.5 tons of excavator with new debugging hydraulic system, walking compound action operation is more smooth, slope heavy duty slewing capacity greatly improved.
4.Accessories
By replacing different working devices, adapt to different construction needs.
One Machine, multi-usage.Quick and easy replacement of accessories.

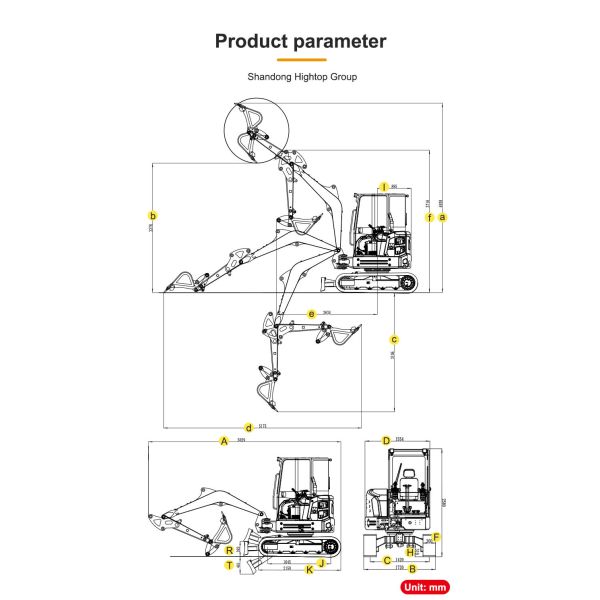

Parameter
Machine size | |
Total length/transportation length(A) | 5029mm |
Total width(B) | 1720mm |
Upper width(D) | 1554mm |
Total height (shed roof/cab roof)(C) | 2580mm |
Standard track shoe width(F) | 300mm |
Minimum ground clearance(H) | 319mm |
Tail turnina radius(l) | 885mm |
Track ground length(J) | 1645mm |
Track length(K) | 2150mm |
Bulldozer Ground height(R) | 393mm |
Bulldozer digging depth(T) | 461mm |
Operating range | |
Maximum digging height (a) | 4938mm |
Maximum unloading height(b) | 3376mm |
Maximum digging depth(c) | 3106mm |
Maximum digging distance(d) | 5175mm |
Minimum radius of turn(e) | 2634mm |
Max. Height @ Min. Rotation Radius(f) | 3716mm |
Performance parameter | |
Operating weight (kG) | 3500kg |
SuCKetcaoaCw | 0.12m³ |
Rated power | 18.5KW/2200rpm |
Turning speed | 9r/min |
Climbing ability | 58% |
Bucket digging force | 30.4KN |
Bucket rod digging force | 18.2KN |
Main parts | |

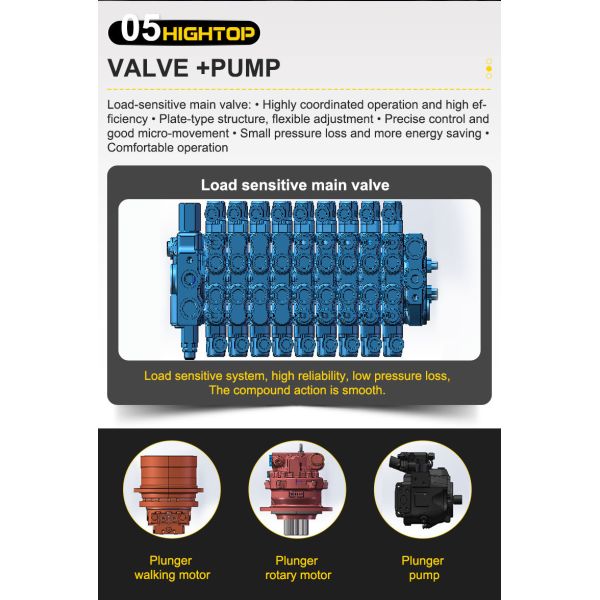

Engine :Kubota D1703 | Valve pressure:24MP |
Flow sharing main valve :HVSE-09-09-P270-BE212 | Pump displacement:40cc |
Swash plate axial plunger variable pump :HP5V45/AV10RB2S2MGA-L1/1-HT1 | Travel speed :4.2/2.4km/h |
Travel motor :Variable plunger motor | Enqine oil capacity :5.1L |
Fuel tank :Capacity 50L | Valve svstem flow :79.2L/min |
Cooling system :Capacity 5.05L | Pump Max.speed :3250r/min |
Hydraulic oil tank :Capacity 55L | |


















|
