Articulated Chassis Wechai WD10G240E201 Skidder H360

Categories Forestry Machinery
Brand Name: HORNQUIP
Model Number: H360
Certification: CE
Place of Origin: China
Rated power: 178kw
Operating Weight: 19,700 kg
Tyre: 23.5-25
Chassis: articulated
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

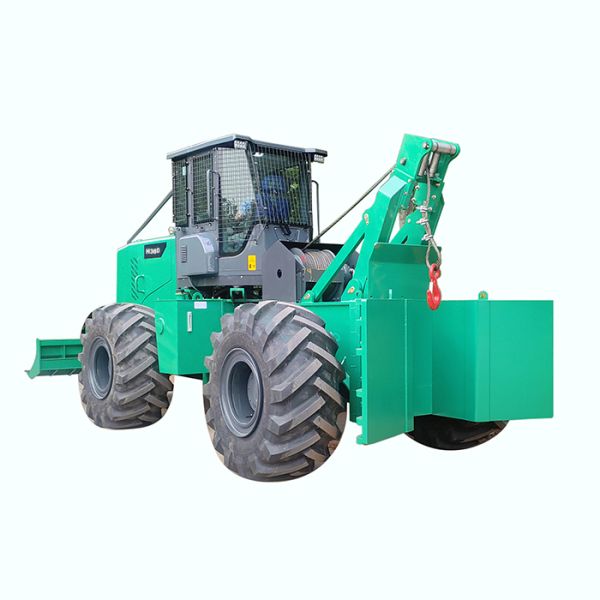

Articulated Chassis Wechai WD10G240E201 Skidder H360

Skidder H360

SKIDDER MODELH360
Operation mass19700 Kg
Engine ModelWechai WD10G240E201
Rated power178KW/2200rpm
Displacement10L
Gear4 (F) 4 (R)
Travel speed
(Km/h)
Gear I (F/R)6/6
Gear II (F/R)11/11
Gear III (F/R)22/22
Gear IV (F/R)34/34
Articulated angle38°
Tire23.5-25
Swing angle of front axle±12°
Winch drive typeHydraulic motor drive
Maximum traction force of wire cable204KN
Maximum speed of wire cable10m/min
Drum capacity (diameter mm xlength m)Φ22mmX33m
Winch drum diameter (cable type)273mm
The width of Winding drum230mm
The height of lifting pushing plate1381mm
The Depth of the cutting board456mm
Turning radius (outside tire)6370mm
Machine length7840mm
Machine width (tire outside)3220mm
Machine Height (cab)3550mm
Tire radius760mm
Height of the ground to the top of track guide2700mm
Wheel base3680mm
Wheel – tread2622mm
