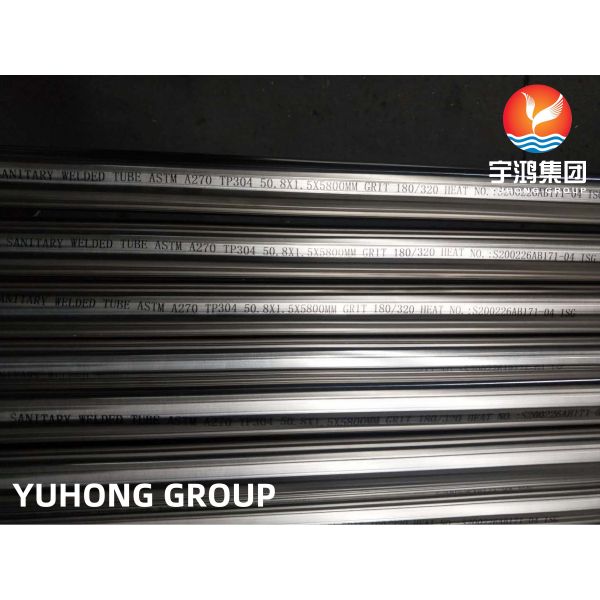

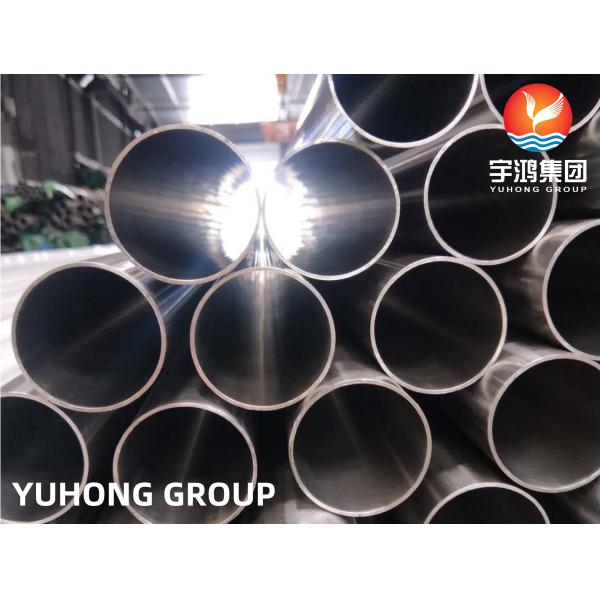

ASTM A270 TP304 Sanitary Bright Annealed Stainless Steel Welded Pipe

ASTM A270 TP304 Sanitary Bright Annealed Stainless Steel Welded Pipe

ASTM A270 TP304 refers to a stainless steel welded pipe widely used in sanitary applications, specifically designed to meet the stringent requirements of industries such as food processing, pharmaceuticals, and chemical production. Below is an introduction to its key features and applications:

1. Basic Specification:

• Standard: ASTM A270
• Grade: TP304 (Type 304 Stainless Steel)
• Type: Welded Pipe
• Surface Finish: Typically polished to meet sanitary requirements (e.g., 180 grit or higher).

2. Material Composition:

• Main Alloy: Type 304 stainless steel, which is an austenitic, non-magnetic alloy.
• Key Elements:
  • Chromium (Cr): 18–20%, providing excellent corrosion resistance.
  • Nickel (Ni): 8–10.5%, enhancing toughness and ductility.
  • Iron (Fe): Balance.
  • Other Elements: Small amounts of manganese, silicon, and carbon.

3. Key Features:

• Corrosion Resistance:

  • High resistance to oxidation, acids, and most corrosive environments.
  • Suitable for both indoor and outdoor applications, as well as exposure to chemicals.

• Sanitary Design:

  • The pipe is manufactured with smooth inner and outer surfaces, reducing the risk of bacterial growth and ensuring easy cleaning.

• Strength and Durability:

  • Type 304 stainless steel ensures high tensile strength and excellent mechanical properties, even at elevated temperatures.

• Weld Integrity:

  • The welding process is carefully controlled to maintain quality, ensuring a uniform and durable seam.

• Versatility:

  • Available in various diameters and wall thicknesses to suit different applications.

4. Applications:

• Food and Beverage Industry:
  • Pipes are used in the transport of liquids such as milk, juice, beer, and other consumable products.
• Pharmaceuticals:
  • Ideal for the production and transportation of purified water and other critical fluids.
• Chemical Industry:
  • Suitable for handling mildly corrosive chemicals.
• Other Industries:
  • Used in breweries, cosmetics manufacturing, and biotechnology.

5. Compliance and Testing:

• Pipes under ASTM A270 are subject to strict testing, including:
  • Dimensional Check: Ensuring compliance with the standard requirements.
  • Hydrostatic Testing: Verifying the strength and leak-proof nature of the pipe.
  • Surface Finish Inspection: Ensuring smoothness and lack of defects.
  • Corrosion Resistance Testing: Proving its suitability for sanitary applications.

6. Advantages of TP304 for ASTM A270 Pipes:

• Excellent weldability and machinability.
• Hygienic and easy-to-clean.
• Long service life due to superior resistance to corrosion and wear.
• Cost-effective compared to higher grades like TP316.
