| Categories | Fiber Optic Cable And Accessories |
|---|---|

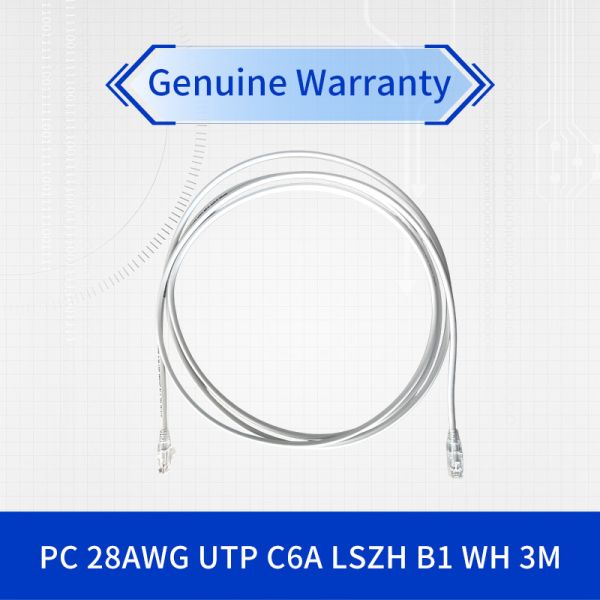

| Model Number: | PC-C6AU-LSB1-WH-3M |
| ANSI/TIA Class: | 6A |
| Cable type: | U/UTP (Unshielded) |
| Type of conductor: | Hard wire |
| Interface, connector A: | RJ45 Plug |
| Interface characteristics: | Standard |
| connector A interface: | RJ45 Plug |
| length: | 2M |
| Brand Name: | Commscope |
| MOQ: | 1Pcs |
| Price: | Negotiate |
| Packaging Details: | Box |
| Delivery Time: | Based on inventory |
| Payment Terms: | T/T |
| Supply Ability: | Supply by project/batch |
| Company Info. |
| Hong Kong Starsurge Group Co., Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
High-Density Connectivity Solution for Demanding Network Environments
Engineered for superior performance in space-constrained installations, this Category 6A networking cable combines advanced transmission capabilities with a compact 28AWG design. The U/UTP construction and LSZH jacket material provide reliable, safe connectivity for modern enterprise networks and data center applications.
28AWG slim profile reduces cable bulk by 25-30% compared to standard Cat6A cables, enabling higher port density and improved airflow management.
LSZH jacket meets stringent B1 flammability rating (GB/T 31247), minimizing smoke and toxic emission in fire scenarios.
This networking cord utilizes precision-engineered 28AWG stranded copper conductors arranged in four balanced twisted pairs. The U/UTP (Unshielded Twisted Pair) design incorporates precise twist ratios and high-quality dielectric materials to maintain signal integrity while minimizing crosstalk and electromagnetic interference.
The cable employs advanced return loss optimization and impedance stability techniques to support 10GBASE-T transmission at 500 MHz bandwidth. The balanced transmission line design ensures consistent performance across all four pairs, while the optimized pair geometry minimizes alien crosstalk in high-density installations.
| Category | Specification | Details |
|---|---|---|
| Electrical Performance | Transmission Standard | ANSI/TIA-568.2-D Cat6A, ISO/IEC 11801 Class Ea |
| Physical Construction | Conductor Size | 28AWG Stranded Copper |
| Cable Diameter | 5.2 mm | |
| Connector System | Interface Type | RJ45 (8P8C) T568B |
| Durability Rating | 750+ Insertion Cycles | |
| Environmental | Operating Temperature | -10°C to +60°C |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
This 28AWG networking cord provides identical electrical performance to bulkier 23AWG alternatives while offering significantly improved cable management capabilities. The reduced diameter allows for higher density installations without compromising transmission quality.
Unlike standard PVC-jacketed cables, the LSZH construction eliminates halogenated materials that can produce corrosive and toxic gases during combustion, providing critical safety advantages in enclosed spaces and public facilities.
The 750+ insertion cycle rating exceeds typical industry standards, ensuring long-term reliability in environments requiring frequent reconfiguration, such as data centers and laboratory settings.
CommScope provides comprehensive technical support for this high-performance networking cable, including installation guidance, performance validation, and compatibility verification. Our global support network ensures rapid response to technical inquiries and deployment challenges.
This high-quality Cat6A networking cable delivers full 10 Gigabit Ethernet performance up to 30 meters, making it ideal for typical data center and enterprise patching applications where shorter runs predominate.
Yes, this network patch cord is engineered to support IEEE 802.3bt Type 4 PoE++ applications, delivering up to 90W of power while maintaining optimal data transmission characteristics within its specified length range.
This Cat6A U/UTP cable complies with ANSI/TIA-568.2-D, ISO/IEC 11801 Class Ea, and meets GB/T 31247 flammability requirements. It also satisfies RoHS environmental standards for hazardous substance restrictions.
|
