| Categories | LED Handrail Lights |
|---|---|
| Brand Name: | COMI Lighting |
| Model Number: | 08M1618 |
| Certification: | CE,RoHS |
| Place of Origin: | China |
| MOQ: | 50pcs |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 200,000pcs/month |
| Delivery Time: | 10-20days |
| Packaging Details: | 1piece/box, 200pcs/cartons |
| Product Name: | M26 LED Recessed Handrail lighting fixtures |
| Power: | 1.5W |
| Input type: | cosntat current 500mA 3VDC, or Constant voltage 24VDC |
| Materials: | 316 stainless steel |
| IP Rate: | IP67 |
| Installation way: | Recessed |
| Company Info. |
| COMI LIGHTING LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

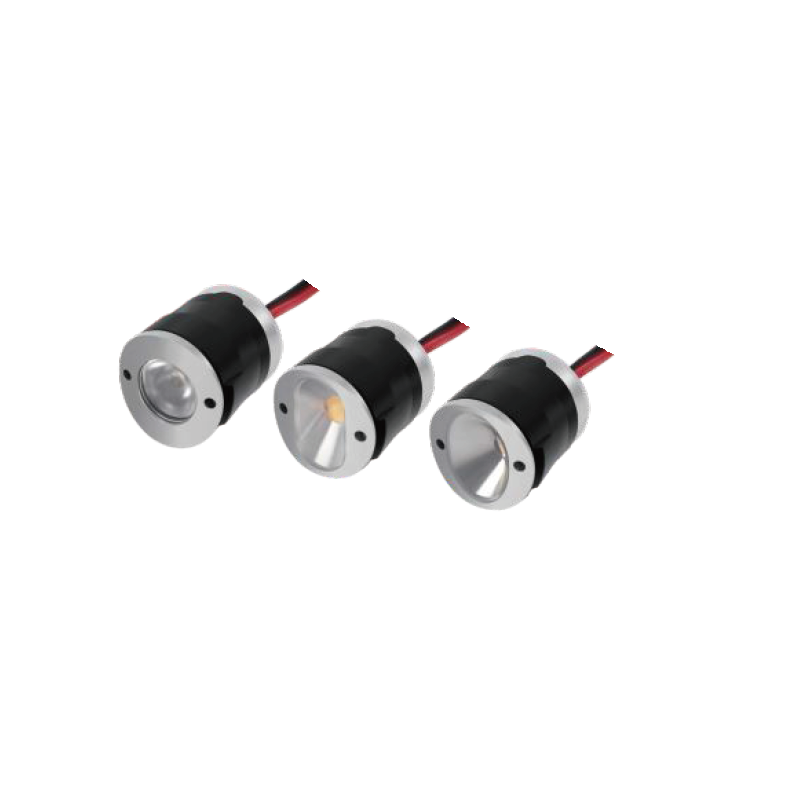

This miniature, high-performance spotlight is the ideal solution for integrated lighting in round handrail systems. Its precision design ensures easy installation and a perfect fit, providing a continuous band of light for architectural enhancement and safety.
Perfect Handrail Integration: Arc front ring designed for recessed mounting into round stainless steel or aluminum alloy handrails (Ø40~90mm, thickness ≥1.5mm). Cut-out requires only a Ø15mm M16 hole.
Superior Durability: 316 stainless steel housing offers exceptional corrosion resistance. IP67 rating ensures complete protection against dust and immersion in water, suitable for all weather conditions.
Architectural Lighting Flexibility: This outdoor handrail light Offers a wide selection of beam angles for options including Symmetrical (25°/35°/45°/65°), Asymmetrical (80°), and Elliptical (65°x90°) for precise light control and grazing effects.
High-Quality Light Output: This LED handrail spot lighting system Utilizes 1-2W Cree LEDs, delivering 100-155 lumens with excellent color rendering (Ra>80, CRI90+ available). Available in 2700K-6500K CCT and colored LEDs (Green, Blue, Amber).
Multiple Driver Options: This mini LED handrail spotlight is Compatible with constant voltage (24VDC/12VDC, 1.5W) or constant current (350mA, 3VDC, 1W; or 500mA 3VDC 1.5W) power supplies or LED driver. Maximum connected load for a single run is 100W.
Long-Lasting & Reliable: Rated for an average lifetime of 30,000 hours and backed by a 2-year warranty. Operates in ambient temperatures from -20℃ to +45℃.
| Item Number | Size (mm) | Cut Out (mm) | Control Mode | Light Color | Light Source | CRI (Ra) | Beam Angle | Input | Power Consumption (W) | Luminous Flux (LM) | IP Rate |
| 08M1618-S-101-CC | Ø16×H17 | Ø15mm | ON/OFF, PWM Dimming | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Symmetrical 25°, 35°, 45°, 65° | 3VDC, Constan Current 350mA or 500mA | 1W (@350mA) 1.5W (@500mA) | Cool white=155 Warm white=131 (@ 1.5W) | IP67 |
| 08M1618-A-101-CC | Ø16×H17 | Ø15mm | ON/OFF, PWM Dimming | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Asymmetrical 80° | 3VDC, Constan Current 350mA or 500mA | 1W (@350mA) 1.5W (@500mA) | Cool white=148 Warm white=125 (@ 1.5W) | IP67 |
| 08M1618-E-101-CC | Ø16×H17 | Ø15mm | ON/OFF, PWM Dimming | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Elliptical 65°×90° | 3VDC, Constan Current 350mA or 500mA | 1W (@350mA) 1.5W (@500mA) | Cool white=148 Warm white=125 (@ 1.5W) | IP67 |
| 08M1618-S-101-DC | Ø16×H17 | Ø15mm | ON/OFF | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Symmetrical 25°, 35°, 45°, 65° | Constant Voltage 24VDC | 1.5W | Cool white=155 Warm white=131 (@ 1.5W) | IP67 |
| 08M1618-A-101-DC | Ø16×H17 | Ø15mm | ON/OFF | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Asymmetrical 80° | Constant Voltage 24VDC | 1.5W | Cool white=148 Warm white=125 (@ 1.5W) | IP67 |
| 08M1618-E-101-DC | Ø16×H17 | Ø15mm | ON/OFF | Single Color | 1piece ×1.5W Cree SMD LED | Ra>80 | Elliptical 65°×90° | Constant Voltage 24VDC | 1.5W | Cool white=148 Warm white=125 (@ 1.5W) | IP67 |
Note: CCT(K) of single color:2700K, 3000K, 4000K, 5000K, 6000K, 6500K. Specifications are subjected to change without notice.
|
