Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU

Categories Fiber Optic Cable
Brand Name: DF/OEM/Nuetral
Model Number: TK-PC-48F-SC-OS2-50M
Certification: CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin: China, Shenzhen
MOQ: negotiable
Price: negotiable denpend on QTY
Payment Terms: Western Union, T/T, MoneyGram/Paypal
Supply Ability: 1000PCS/Day
Delivery Time: 5-9 working days depends on QTY
Packaging Details: Blister box+Carton
Product Name: Indoor Flat Duplex Optical Cable
Outside diameter (mm): 2-3.0mm
Fiber count: 2
Core reinforce: Aramid yarn
Material: Stainless steel
Diameter(±1µm): 125μm
Jacket Material: LSZH/PVC
Color: Yellow for single mode cable, Orange for multi mode cable or Customized
Wavelength: 1310nm, 1550nm
Length: 2000M or Customized
Operation Temperature: -20℃~70℃
Coating diameter(±5µm): 250μm
Fiber Brand: Corning, YOFC, OFS, Draka
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU

Indoor Flat Duplex Optical Cable 2000M LSZH/PVC/PU
Describtion
Flat duplex optical cable uses Φ600µm or Φ900µm compact fiber as the optical transmission medium. The compact fiber is wrapped in a layer of aramid yarn as the strength component unit, which is made of a layer of PVC or LSZH material, It is then made of a flat layer of polyvinyl chloride (PVC) or a low-smoke halogen-free material (LSZH low-smoke, halogen-free, flame retardant) jacket.
Fiber Optic Cable Applications
  • Flat Duplex (two basic units inside) moving connection jumper or tail fiber;
  • Indoor shaft stage and forced ventilation level wiring;
  • Interconnection of instruments and communication equipment.
Fiber Optic Cable Features
  • Adopt a tight sleeve optical fiber for easy stripping;
  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
  • Good performance of fame-retardant, low induced attenuation within the operating temperature range
Fiber Optic Cable Parameter and Properties

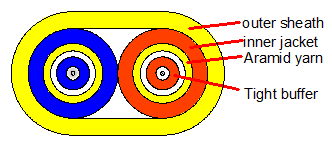

Fiber Optic Cable Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
TAKFLY Fiber Optic Pigtail Product
