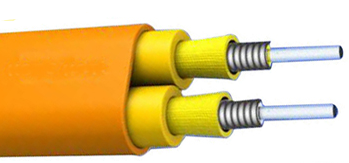

Flat Duplex Armored Optical Cable 2000M LSZH/PVC

Categories Fiber Optic Cable
Brand Name: DF/OEM/Nuetral
Model Number: TK-PC-48F-SC-OS2-50M
Certification: CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin: China, Shenzhen
MOQ: negotiable
Price: negotiable denpend on QTY
Payment Terms: Western Union, T/T, MoneyGram/Paypal
Supply Ability: 1000PCS/Day
Delivery Time: 5-9 working days depends on QTY
Packaging Details: Blister box+Carton
Product Name: Flat Duplex Armored Optical Cable
Intertion Loss: ≤0.3dB
Return Loss: UPC SM≥50dB, APC SM≥ 60 dB, PC MM ≥ 35 dB
Core reinforce: Aramid yarn
Material: Stainless steel
Connector Type: SC/UPC
Jacket Material: LSZH/PVC
Color: Blue or Customized
Wavelength: 1310nm, 1550nm
Length: 2000M or Customized
Operation Temperature: -20℃~70℃
Fiber Diameter: 50/125
Fiber Brand: Corning, YOFC, OFS, Draka
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Flat Duplex Armored Optical Cable 2000M LSZH/PVC

Flat Duplex Armored Optical Cable 2000M LSZH/PVC
Describtion
Flat Twin Duplex Indoor armored Cable use Φ600µm or Φ900µm flame-retardant tight buffer fiber as optical communication medium.The tight buffer fiber wrapped with a layer of steel wire , and aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as inner jacket.Then the cable is completed with a layer of flat PVC or LSZH(Low smoke,Zero halogen,Flame-retardant) jacket as out sheath.
Fiber Optic Cable Applications
  • Optical fiber active connection jumper or tail fiber;
  • Optical connections in optical communication equipment rooms and optical distribution frames;
  • Interconnection of instruments and communication equipment.
Fiber Optic Cable Features
  • Two single-fiber as basic unit.flat twin configuration;
  • Single-cable with Φ600µm or Φ900µm tight buffer. aramid yarn with steel armored;
  • Flexible or out sheath independent strength member;
  • Excellent mechanical and environmental performance;
  • Meet various requirements of market and clients
Fiber Optic Cable Parameter and Properties

Fiber Optic Cable Structure
Product Picture
Why choose TAKFLY?
Professional manufacturer:
  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experienced
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.
Quality Control:
  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping
Delivery:
  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request
If you're interested in our products or have any doubt, feel free to contact me at any time!
TAKFLY Fiber Optic Pigtail Product
