| Categories | Pressure Locked Steel Grating |
|---|---|
| Brand Name: | Gnee |
| Certification: | ISO9001 |
| MOQ: | 2PCS |
| Supply Ability: | 300000 Square Meter/Square Meters per Month |
| Delivery Time: | Shipped in 20 days after payment |
| Packaging Details: | Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container |
| Company Info. |
| Gnee Steel (tianjin) Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
HOT DIP GALVANIZED STEEL GRATING
Galvanized steel grating is steel bar according to a certain
distance and cross bar arranged and welded into the middle of a
square latice with an iron and steel products . It is mainly used
on the industrial platform,walking flooring,drainge cover, well
cover,oil platform,stair tread step etc.

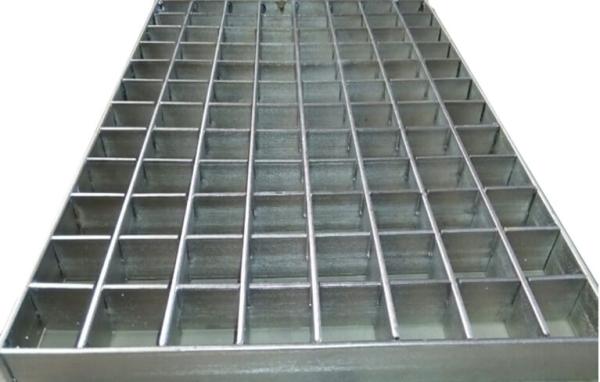

Press-locked steel bar grating made by fixed size flat steel
through slotted, pressure lock plug, finish, etc process. At the
intersection point of flat steel and horizontal pole, press
horizontal pole into loading flat steel, then fixed it. Sometimes
the horizontal pole also used flat steel.

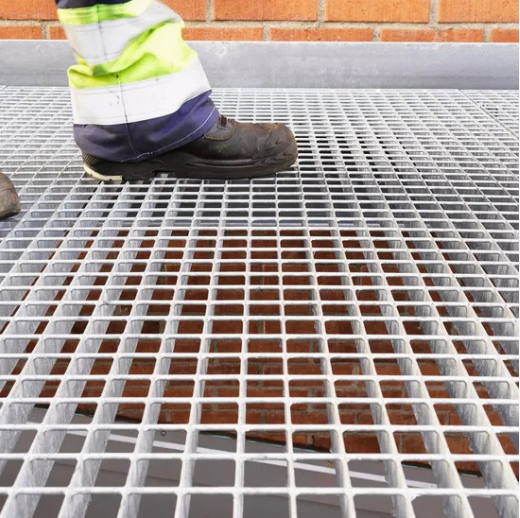

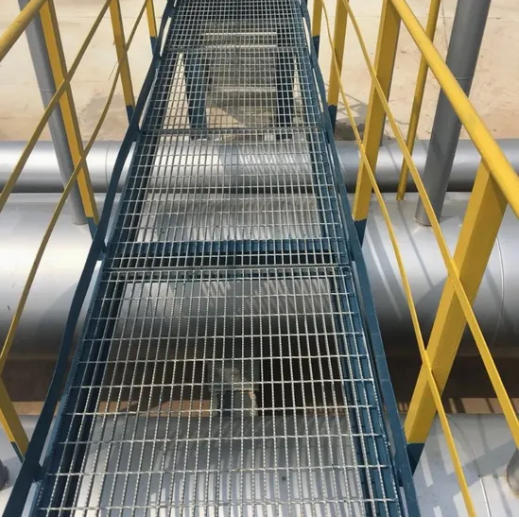

The grating is widely used for floor, catwalk, Mezzanines/decking,
stair tread, fencing; vault bin floor floor, ramp, dock/warehouse,
all kinds of trench cover, window and machinery safe guards, wash
rack, ventilation screen, storage rack, suspended ceiling, drainage
pit cover and etc.
| 1. Material | Carbon Steel, Stainless Steel |
| 2. Surface treatment | Black, self colour, hot dip galvanized, painted, spray coating |
3. Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
4. Length& Width | Customized |
| 5. Cross bar | 6mm 8mm |
| 6. Cross bar Spacing | 50mm 100mm |
| 7. Bearing bar Thinckness | 3mm 4mm 5mm |
| 8. Bearing bar depth | 25 30 32 35 40 45 50 60mm |
| Bearing bar pitch | Cross bar pitch | load steel size ( Width ×Thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | - | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 |
| Bearing bar pitch | Cross bar pitch | load steel size (Width ×Thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
|
