| Categories | Pressure Locked Steel Grating |
|---|---|
| Brand Name: | Gnee |
| Certification: | ISO9001 |
| MOQ: | 2PCS |
| Supply Ability: | 300000 Square Meter/Square Meters per Month |
| Delivery Time: | Shipped in 20 days after payment |
| Packaging Details: | Fix with metal belt Packing with pallet ,outside wrap with waterproof plastic film Finial in container |
| Company Info. |
| Gnee Steel (tianjin) Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

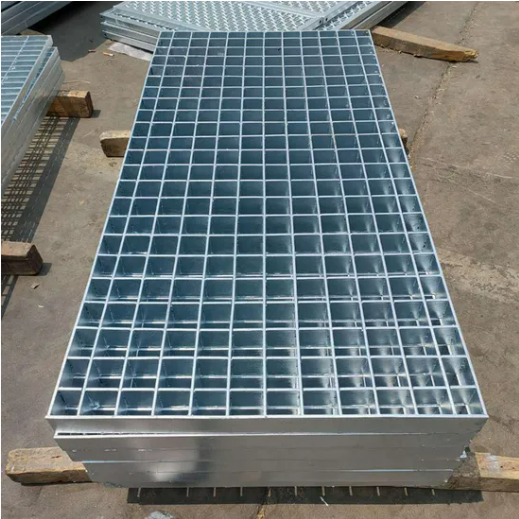

Pressure Locked Grating
Pressure Locked Grating is the workhorse of the industrial flooring market and has served industry for decades. Strong and durable with an exceptional strength-to-weight ratio, metal bar grating can be easily fabricated to nearly any configuration.
The high percentage of open area makes bar grating nearly maintenance free and all products are fully recyclable.
Manufactured by assembling a series of equally spaced metal bars to connecting cross members, bar grating is available in three popular materials; Mild carbon steel, 6000 series aluminum and 300 series stainless steels.
Methods of Manufacturing
Welded Grating
Economical design ideal for most industrial applications.
Manufactured by welding the bearing bar/cross bar intersection, typically with automated forge welding equipment.
Available in carbon steel and stainless steel.
Dovetail Pressure
Locked Grating
Assembled by inserting pre-punched bearing and cross bars into an "eggcrate" configuration and deforming the cross bars under intense hydraulic pressure.
Common sizes of platform steel grating plate :
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 20×3 | 25×3 | 32×3 | 40×3 | 20×5 | 25×5 | ||
| 30 | 100 | G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100 |
| 50 | G203/30/50 | G253/30/50 | G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50 | |
| 40 | 100 | G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100 |
| 50 | G203/40/50 | G253/40/50 | G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50 | |
| 60 | 50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50 | |
| Pitch of Bearing bar | Cross-bar Pitch | Specification of bearing bar load(width×thickness) | |||||
| 32×5 | 40×5 | 45×5 | 50×5 | 55×5 | 60×5 | ||
| 30 | 100 | G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100 |
| 50 | G325/30/50 | G405/30/50 | G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50 | |
| 40 | 100 | G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100 |
| 50 | G325/40/50 | G405/40/50 | G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50 | |
| 60 | 50 | G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50 |
|
