Hot-DIP Galvanized Steel Grating with 3mm-7mm Thickness and 30mm-40mm Pitch for Heavy Duty Applications

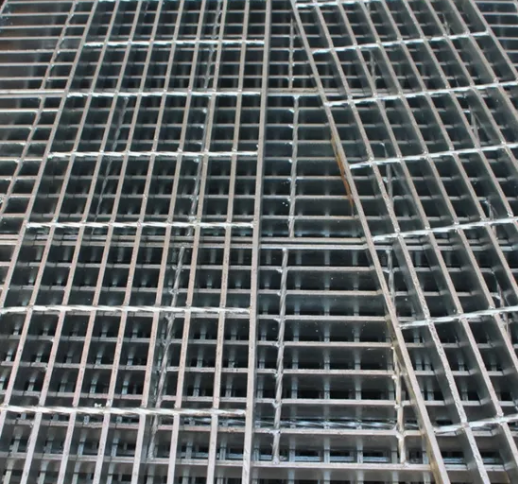

Welded Grating
The most commonly used and economical design suitablefor most industrial applications. Manufactured by weldingthe bearing bar and cross bar intersection, typically withautomated forge welding equipment or professional manualwelding.Available in carbon steel or stainless steel.
Dovetail Pressure Locked:
Insert the cross bar into the pre-punched bearing bar andhydraulically deform it to lock it in place. The cross bar hereis usually a straight plate shaped like a bearing bar.
Swaged Pressure Locked:
Assembled by inserting pre-punched bearing and cross barsinto an "egg-crate" configuration and deforming the crossbars under intense hydraulic pressure. Available in all mate-rials and ideal for architectural and ornamental applications
Welded Swaged Pressure Locked:
It is an upgraded version of the swaged pressure lockedEach intersection is manually welded once to make it stron-ger and can withstand more loads.

Surface Treatment
We provide four finishes for anti-corrosion treatment of carbon steel bar grating:
Black / Bare Steel: No finish, life is very short, but the price is the cheapest.
Painted Coat: The anti-rust effect is general and can be any color.
Electro-galvanized: A small amount of zinc coating, easy to cause slight corrosion in humid environment.
Hot-dip galvanized: The most commonly used method to provide the best anti-rust effect, strictly in accordance with ASTM A123 or GB/T 13912-2002.

GNEE STEEL ,Has dedicated in producing and exporting all types of steel gratings for more than 19 years,A Professional Steel Grating & Safety Grating Manufacturer for Projects Engineering.

Factory

Advanced Equipment

We have more than 30 production lines of welded steel gratings and press lock gratings. Advanced equipment, skilled workers contribute to low production loss, high production efficiency and low products costs.

Supervise Strict Testing

All steel gratings are supervised by strict QUALITY CONTROL System both in International standard and enterprise test flow. All products our customers received are qualified and best in performance and package.

Steel Gratings Types We Supply

GNEE Steel Grating Application

Steel grating are designed and manufactured for various industrial and civil constructions in city road, gardens, yard, airport, railway and industrial engineering.

• Hot dip galvanized steel grating is the best choice for steel platforms in airports. Grating with 30 × 3 mm thick load bearing bars with a pitch of 30 mm and traverse bars at 50 mm or 100 mm is the suitable one.
• Steel grating, with robust design and spanning abilities, is very strong and safe for the support of floors and elevated walkway. It can be used for ceiling, interior decoration, platform aisle, ventilation windows, (Wells), advertising plaque and other construction.
• Widely used in the petrochemical industry, power plants, waterworks, sewage treatment plants, municipal works, sanitation projects in areas such as platforms, corridors, bridge, ditch cover, covers, ladders, fences, rails, and so on.
