| Categories | Equipment Casters |
|---|---|
| Brand Name: | EDL |
| Model Number: | M433-16P |
| Certification: | ISO9001, ISO14001, RoHS |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiate |
| Payment Terms: | T/T |
| Supply Ability: | 30,000pcs/day |
| Delivery Time: | 3-15days |
| Packaging Details: | Carton |
| Name: | Equipment Casters |
| Wheel Diameter: | 3inch(75mm) |
| Tread Material: | PA |
| Mounting Type: | Rigid/Swivel/Brake |
| Dynamic Load: | 500kg |
| Mounting Height: | 100mm |
| Frame Material: | Cold-Rolled Plate |
| Plate Thickness: | 3mm |
| Bracket Thickness: | 3mm |
| Surface Treatment: | Electrophoretic |
| Bracket Width: | 46mm |
| Wheel width: | 40mm |
| Bearing: | Double ball bearings |
| Tread Color: | Black |
| Applicable Temperature: | -20℃～100℃ |
| Tread Hardness: | 67D |
| Company Info. |
| Guangzhou EDL Casters Co.,Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

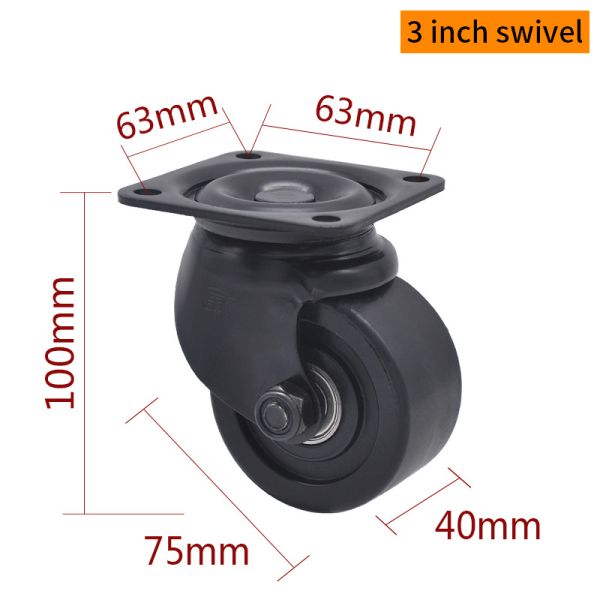

EDL Equipment Casters 3Inch PA E-coated Casters With Brake M433-16P 500Kg Road
The EDL Equipment Caster M433-16P is a 3-inch low-profile heavy-duty caster specifically engineered for industrial and mechanical equipment that requires maximum stability and load-bearing capacity. Constructed with a black PA (nylon) wheel, this caster combines high impact strength with excellent wear resistance, ensuring long-lasting performance in demanding environments. Each unit can carry up to 500 kg, providing reliable support for large machines, automation systems, and production equipment.
The E-coated steel bracket offers superior protection against corrosion, making it suitable for both indoor and semi-outdoor industrial applications. Its temperature tolerance from -20°C to 100°C guarantees dependable operation in extreme conditions, while the 67D hardness provides optimal balance between durability and rolling performance.
Equipped with a precision brake mechanism, the M433-16P allows operators to secure equipment firmly in place, improving safety and stability during operation. Designed for efficiency and endurance, this EDL caster delivers exceptional load control, smooth mobility, and long service life — an ideal solution for heavy-duty equipment, factory systems, and precision machinery requiring robust and stable mobility.
Wheel Item No. | Size | Wheel Diameter | Wheel Width | Bracket Width | Load Capacity | Core | Tread | Bearing | Applicable Temperature | Hardness |
| M433-16 | 3" | 75mm | 40mm | 46mm | 500Kg | / | PA | Double ball bearing 6001 | -20℃～100℃ | 67D |
FAQ:
Q: Are you manufacturer or trading company?
A: We are caster wheels manufacturer since 1987.
Q: Where is your factory? Can I visit ?
A: Our factory is at Taizhou, Zhejiang, China. 2 hours by car from
Yiwu. Welcome to visit.
Q: What is your delivery time?
A: Normally within 1 week. It's up to the order quantity.
Q: What is the term of payment?
A: Payment terms: 30%(it's stand product, for customized product
it's 50%) of deposit upon signing the PI and the rest will be
cleared by T/T before delivery.
Q: Are samples available?
A: Yes, sample is fine at any time, negotiable.
|
