Indoor Breakout Optical Cable 2000M LSZH/PVC/PU

Categories Fiber Optic Cable
Brand Name: DF/OEM/Nuetral
Model Number: TK-PC-48F-SC-OS2-50M
Certification: CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin: China, Shenzhen
MOQ: negotiable
Price: negotiable denpend on QTY
Payment Terms: Western Union, T/T, /Paypal
Supply Ability: 1000PCS/Day
Delivery Time: 5-9 working days depends on QTY
Packaging Details: Blister box+Carton
Product Name: Indoor Breakout Optical Cable
Outside diameter (mm): 3.0-12.5mm
Fiber count: 4-48
Core reinforce: Aramid yarn
Material: Stainless steel
Jacket Material: LSZH/PVC
Color: White or Customized
Wavelength: 1310nm, 1550nm
Diameter(±1µm): 125μm
Coating diameter(±5µm): 250μm
Operation Temperature: -20℃~70℃
Length: 2000M or Customized
Fiber Brand: Corning, YOFC, OFS, Draka
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Indoor Breakout Optical Cable 2000M LSZH/PVC/PU

Indoor Breakout Optical Cable 2000M LSZH/PVC/PU
Product Description

4-48 core branch optical cables (900ym compact buffer fiber, aramid yam is a reinforcement element, 2.0mm innelsheath) are used as a subunit. A fiber-reinforced plastic (FRP) is positioned at the center of the core as a non-metallic strengthening element. The subunit is surrounded by FRP, with a PVC or LSZH material sheath, and the final outer layer is polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant jacket).

Product Applications
  • Optical fiber active connection jumper or tail fiber
  • Indoor shaft stage and forced ventilation level wiring
  • Interconnection of instruments and communication equipment
Product Features
  • Adopt a tight sleeve optical fiber for easy stripping
  • Aramid yarn reinforced element makes the optical cable have excellent tensile resistance
  • Good performance of flame-retardant, low induced attenuation within the operating temperature range
  • Meet various requirements of market and clients
Optical Parameter and Properties
Optical fiber typeTest wavelengthDecayFull injection bandwidth (MHZ.km)Effective modal bandwidth (MHZ.km)Minimum bending radius(mm)
G652D1310/1550nm0.36/0.220.5/0.4...16
G657A11310/1550nm0.36/0.220.5/0.4...10
G657A21310/1550nm0.36/0.220.5/0.4...7.5
62.5/125850/1300nm3.0/1.03.5/1.5≥200/50030
50/125850/1300nm3.0/1.03.5/1.5≥500/50030
OM3850/1300nm3.0/1.03.5/1.5≥1500/5007.5
OM4850/1300nm3.0/1.03.5/1.5≥3500/5007.5
OM5850/953nm/1300nm3.0/.../1.03.5/.../1.5≥3500/1850/5007.5

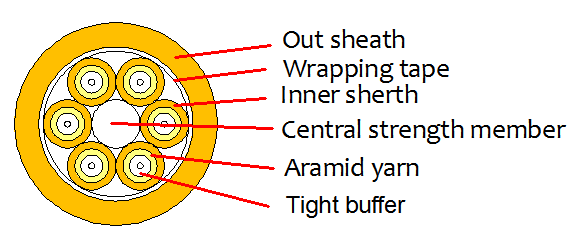

Product Structure
Indoor Breakout Optical Cable structure diagram
Product Picture
Indoor Breakout Optical Cable product photo
Why choose TAKFLY?

Professional manufacturer:

  • With more than 25 years manufacturing experience in Fiber optic products
  • More than 450 assembly workers with 3 years experience
  • More than 10 R&D Engineers
  • 16 Sets Germany imported Injection Machine and 16 Production Lines
  • More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strength tester, Crush Resistance tester, Power meter tester, light checker, etc.
  • OEM Brand is acceptable
  • Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.

Quality Control:

  • Spot check the raw material incoming inspection before production
  • Fully check after every individual process finished
  • Fully check production half done
  • Fully check the finished products before packing
  • Spot check before shipping

Delivery:

  • Samples: 1-3 working days
  • Mass Production Order: 3-7 working days
  • Packaging: Plastic Bag, Carton and Pallet are available according to your request

If you're interested in our products or have any doubt, feel free to contact me at any time!
