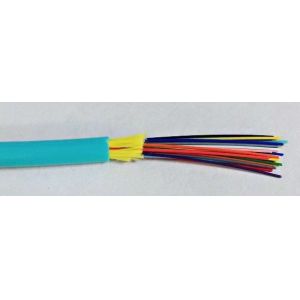

Indoor Bundle Optical Cable 2000M LSZH/PVC/PU

Categories	Fiber Optic Cable
Brand Name:	DF/OEM/Nuetral
Model Number:	TK-PC-48F-SC-OS2-50M
Certification:	CE/ROHS/REACH/ISO9001/ISO14001
Place of Origin:	China, Shenzhen
MOQ:	negotiable
Price:	negotiable denpend on QTY
Payment Terms:	Western Union, T/T, MoneyGram/Paypal
Supply Ability:	1000PCS/Day
Delivery Time:	5-9 working days depends on QTY
Packaging Details:	Blister box+Carton
Product Name:	Indoor Bundle Optical Cable
Outside diameter (mm):	3.0-12.5mm
Fiber count:	2-48
Core reinforce:	Aramid yarn
Material:	Stainless steel
Jacket Material:	LSZH/PVC
Color:	White&Blue or Customized
Wavelength:	1310nm, 1550nm
Diameter(±1µm):	125μm
Coating diameter(±5µm):	250μm
Operation Temperature:	-20℃~70℃
Length:	2000M or Customized
Fiber Brand:	Corning, YOFC, OFS, Draka

Contact Now

Add to Cart

Company Info.

TAKFLY COMMUNICATIONS CO., LTD.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Indoor Bundle Optical Cable 2000M LSZH/PVC/PU

Product Description

2-48 core beam optical cable uses Φ900μm compact fiber as the optical transmission medium, and the coated aramid yarn is used as a force strengthening unit. The outermost layer of polyvinyl chloride (PVC) or low-smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant) jacket.

Product Applications

Optical fiber active connection jumper or tail fiber
Indoor shaft stage and forced ventilation level wiring;
Interconnection of instruments and communication equipment

Product Features

Adopt a tight sleeve optical fiber for easy stripping;
Aramid yarn reinforced element makes the optical cable have excellent tensile resistance;
Multi-core number and small outer diameter, non-metal center strengthening structure;
Good performance of flame-retardant,low induced attenuation within the operating temperature range.
Meet various requirements of market and clients

Optical Parameter and Properties

Optical fiber type	Test wavelength	Decay		Full injection bandwidth (MHZ.km)	Effective modal bandwidth (MHZ.km)	Minimum bending radius(mm)
Optical fiber type	Test wavelength	Typical (dB/km)	Maximum (dB/km)	Full injection bandwidth (MHZ.km)	Effective modal bandwidth (MHZ.km)	Minimum bending radius(mm)
G652D	1310/1550nm	0.36/0.22	0.5/0.4	...	...	16
G657A1		0.36/0.22	0.5/0.4	...	...	10
G657A2		0.36/0.22	0.5/0.4	...	...	7.5
62.5/125	850/1300nm	3.0/1.0	3.5/1.5	≥200/500	...	30
50/125		3.0/1.0	3.5/1.5	≥500/500	...	30
OM3		3.0/1.0	3.5/1.5	≥1500/500	≥2000/...	7.5
OM4		3.0/1.0	3.5/1.5	≥3500/500	≥4700/...	7.5
OM5	850/953nm/1300nm	3.0/.../1.0	3.5/.../1.5	≥3500/1850/500	≥4700/2470/...	7.5

Product Structure

Fiber count		2-48
Optical fiber	Diameter(±1µm)	125µm
Optical fiber	Coating diameter(±5µm)	250µm
Tight buffer	Diameter(±50µm)	900µm
	Sheath materiall	PVC/LSZH
	Color	White or Other colors available upon request
Strength member	Core reinforce	Aramid yarn
Outer sheath	Sheath material	PVC/LSZH
Outer sheath	Color	Yellow for single mode cable, Orange for multi mode cable; Or other colors available upon request
Cable	Fiber count	Outside diameter(mm)	Cable weight (kg/km)	Max tensile force(N)	Crush resistance (N/100mm)	Min bend radius(D)	Running temperature
	Fiber count	Outside diameter(mm)	Cable weight (kg/km)	Long-term/ short-term	Short-term	Dynamic/ static	-20 ℃ ~+70 ℃
	2	3.0	9	60/120	1000	20/10
	4	4.8	22	80/150	1000	20/10
	6	5.2	25	80/150	1000	20/10
	8	5.5	27	100/300	1000	20/10
	10	5.6	30	150/450	1000	20/10
	12	6.0	35	200/600	1000	20/10
	24	8.0	60	250/700	1000	20/10
	36	10.0	90	300/800	1000	20/10
	48	12.5	120	500/1200	1000	20/10

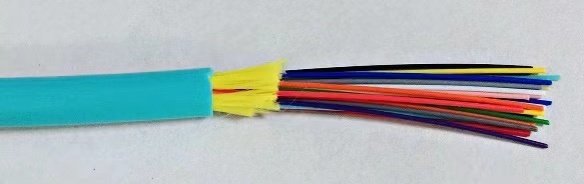

Product Picture

Why choose TAKFLY?

Professional manufacturer:

With more than 25 years manufacturing experience in Fiber optic products
More than 450 assembly workers with 3 years experienced
More than 10 R&D Engineers
16 Sets Germany imported Injection Machine and 16 Production Lines
More than 30 sets of Testing Machines: OTDR,3D,VFL,IL&RL test instrument; tension strenth tester, Crush Resistance tester, Power meter tester, light checker, etc.
OEM Brand is acceptable
Exhibition: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Soure Electronic Exhibition, etc.

Quality Control:

Spot check the raw material incoming inspection before production
Fully check after every individual process finished
Fully check production half done
Fully check the finished products before packing
Spot check before shipping

Delivery:

Samples: 1-3 working days
Mass Production Order: 3-7 working days
Packaging: Plastic Bag, Carton and Pallet are available according to your request
