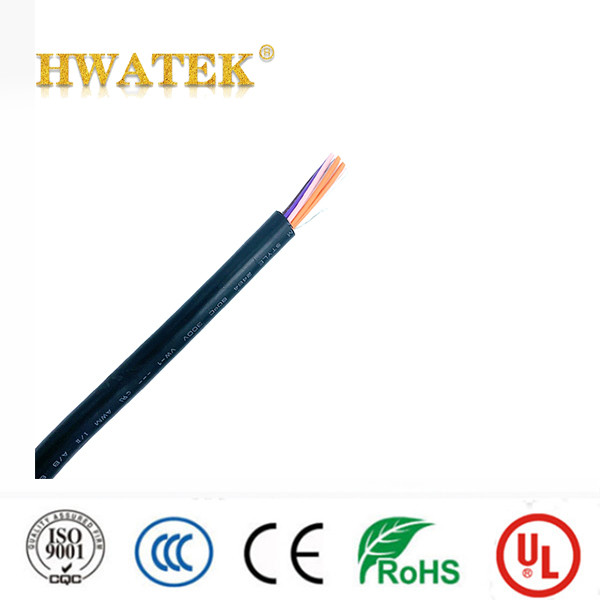

Tinned Copper Stranded Cable SR PVC Insulated PVC Jacket UL2661 7C 28AWG 300V cable

UL2661 7C × 28AWG ( 7/0.127T ) Tinned Copper stranded SR-PVC Insulated 86007CY equivalent Cable

Product Description

Product Description
ITEM7C×28AWG(7/0.127T)
CONDUCTORMaterialTinned copper stranded
Size7/0.127±0.008mm
O.D.(Ref)0.38mm
INSULATIONMaterialSR-PVC
Min.average thickness0.23mm
Min.thickness at any point0.18mm
O.D.0.85±0.05mm
CABLINGMaterialNonwoven tape (25% overlap min.)
MaterialAl-mylar (face out, 25% overlap min.)
Assembly7C×28AWG(7/0.127T)
Pitch9.6 Twists/foot (min)
DRAINMaterialTinned copper stranded
Size7/0.16±0.008mm
SPIRALMaterialTinned copper
Size64±3/0.12mm(Coverage:90% min.)
WRAPPEDMaterialPaper (25% overlap min.)
JACKETMaterialPVC
Min.average thickness1.00mm
Min.thickness at any point0.80mm
O.D.5.60±0.30mm

Construction
Conductor :Tinned copper stranded
Insulation:SR-PVC

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL2661
RoHS,REACH Compliant,

Technical data
Rated voltage:300V
Rated Temperature:-10～105℃
Flame: FT1
Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance

Extensively oil resistant
Flexible
