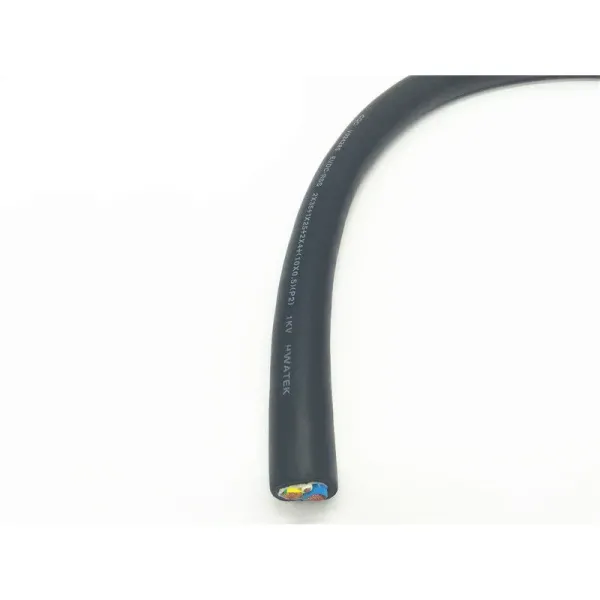

3C×10AWG+2C×18AWG 600V 105ºC EV Charging Cable with TPE Insulation and Bare Copper Stranded

3C×10AWG+2C×18AWG 600V 105ºC EV Charging Cable with TPE Insulation and Bare Copper Stranded

3C×10AWG+2C×18AWG 600V 105ºC EV Charging Cable with TPE Insulation and Bare Copper Stranded
3C×10AWG+2C×18AWG 600V 105ºC EV Charging Cable with TPE Insulation and Bare Copper Stranded
Categories EV Charging Cable
Certification: ISO9001, CE, CCC, RoHS
MOQ: 50 Meters
Conductor Material: Copper
Sheath Material: TPE
Insulation Material: TPE
Material Shape: Round Wire
Conductor Size: 105/0.254±0.008mm, 65/0.127±0.008mm
Pitch: 59mm Max., 32mm Max.
O.D.: 3.00mm, 1.18mm
Insulation Thickness: 1.14mm, 0.76mm
Min. Thickness: 1.02mm, 0.68mm
Insulation O.D.: 5.40±0.20mm, 2.80±0.10mm
Rated Temperature: -40 ~ +105°C
Rated Voltage: 600V
Bending Radius: 5xOD
Flammability Test: IEC60332-1
Transport Package: 300m/Reel
Contact Now
Company Info.
NANTONG HWATEK WIRES AND CABLE CO.,LTD.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

3C×10AWG+2C×18AWG 600V 105ºC EV Charging Cable with TPE Insulation and Bare Copper Stranded

Product Description
Basic Info.


ITEM Unit A:3C×10AWG Unit B:2C×18AWG
CONDUCTOR
Material Bare Copper Stranded
Size 105/0.254±0.008mm 65/0.127±0.008mm
Pitch(Ref) 59mm Max. 32mm Max.
O.D.(Ref) 3.00mm 1.18mm
INSULATION
Material TPE
Min.average thickness 1.14mm 0.76mm
Min.thickness at any point 1.02mm 0.68mm
O.D. 5.40±0.20mm 2.80±0.10mm
Eve 3c5.0mm2and2c*0.8mm2 Cabble

General Administration of Quality Supervision, Inspection and Quarantine

Certificate No.Product Types
E473281 (UL) EVE 3×10AWG(5.0mm2)+2×18AWG(0.8mm2) 600V 105ºC
FT2 HWATEK

Structure Diagram:

Eve 3c5.0mm2and2c*0.8mm2 Cabble

Reference standard:IEC 62893, IEC 62893-4-1

Product Category:

Product Category:

AC:EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90-450/750V 1.0-70(2-5C)+0.5-0.75(P/P2)(1-10C)

Construction:

Rated temperature:-40 ~ +105°C

Rated voltage:600V


conductor:Bare copper stranded

Insulation material:TPE

Sheath material:TPE

Flexible Construction, Resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress, IEC60332-1 flammability test, minimum bending radius 5xOD, easily installation

Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.

Structural parameter table:

Eve 3c5.0mm2and2c*0.8mm2 Cabble

1. The detailed dimensions are subject to the product specifications.

2. Other specifications can be designed and manufactured according to customer requirements.

3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.

Eve 3c5.0mm2and2c*0.8mm2 CabbleEve 3c5.0mm2and2c*0.8mm2 Cabble
Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Eve 3c5.0mm2and2c*0.8mm2 CabbleEve 3c5.0mm2and2c*0.8mm2 Cabble
Certificates
Eve 3c5.0mm2and2c*0.8mm2 Cabble
Production Progress
Eve 3c5.0mm2and2c*0.8mm2 CabbleShipping
Eve 3c5.0mm2and2c*0.8mm2 CabbleFAQ
1.Q:What can you supply?
   A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2.Q: What are the certificates do you get?
   A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3.Q:Can we get samples before ordering?
   A:Yes, we are willing to arrange samples for you.
4.Q: What's your lead time?
   A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5.Q. How can you guarantee the product quality?
   A: Always a pre-production sample before mass production and final Inspection before shipment.
Major Customers
Eve 3c5.0mm2and2c*0.8mm2 Cabble
