High Voltage Flame Retardant EV Charging Cable with PVC Sheath and Round Wire for Medical Equipment

Categories	EV Charging Cable
Certification:	ISO9001, CCC, RoHS
MOQ:	3,000 Meters
Price:	US $0.5-1 / Meter
Conductor Material:	Copper
Sheath Material:	PVC
Insulation Material:	TPE
Material Shape:	Round Wire
Rated Temperature:	80ºC-105ºC
Rated Voltage:	300V, 600V
Conductor Resistance:	Max. Cond. Resistance(20ºC)Ω/km
AWG Size:	18, 16, 14, 12, 10, 8, 6
Conductor Construction:	41/0.16, 26/0.254, 65/0.16, 41/0.254, 65/0.254, 105/0.254, 133/0.29, 133/0.36
Nominal Thickness:	0.76mm, 1.14mm, 1.52mm, 2.03mm, 2.41mm, 2.79mm, 3.17mm, 3.56mm, 3.94mm, 4.32mm, 4.83mm
Core Diameter:	2.8mm, 3.1mm, 3.4mm, 3.9mm, 4.3mm, 4.7mm, 5.7mm, 7.4mm, 8.5mm
Outer Diameter:	0-12.0mm, 11.18-15.0mm, 14.54-20.0mm, 18.16-30.0mm, 27.82-40.0mm, 37.38-45.0mm, 44.54-60.0mm, 0-20.0mm, 17.62-25.0mm, 24.78-35.0mm, 31.84-46.0mm, 45.32-60.0mm, 26.22-35.0mm, 33.38-45.0mm, 40.44-50.0mm, 47.86-55.0mm
Shielding:	Tinned copper braid
Low Temperature Resistance:	-40ºC
Quantity per Roll:	305m, 610m

Contact Now

Add to Cart

Company Info.

NANTONG HWATEK WIRES AND CABLE CO.,LTD.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

High Voltage Flame Retardant EV Charging Cable with PVC Sheath and Round Wire for Medical Equipment

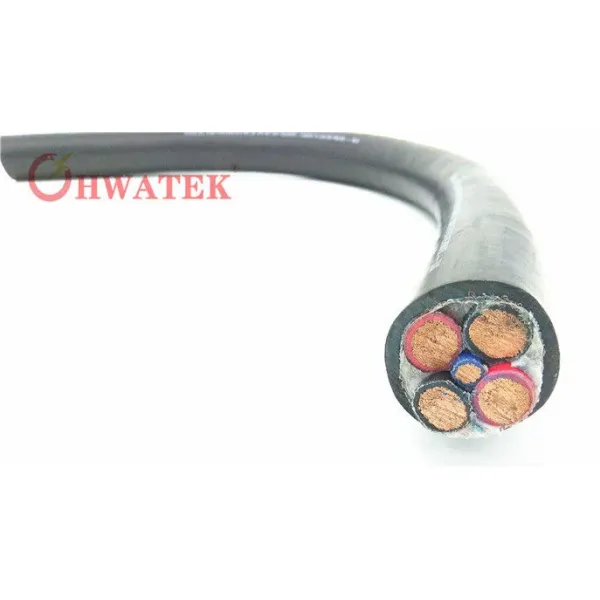

Eve, Evjt High Voltage Flame Retardant Power Charging Copper Wire Cable

Type	Conductor			Insulation		Jacket Max. Cond. Resistance(20ºC)Ω/km
Type	AWG	No.	Construction	Nom. Thickness mm	Diameter	Core Diameter	Nom. Thickness	Outer Diameter
EVJE EVJT(300V)	18	2-6C	41/0.16	0.76	2.8	0-8.89	0.76	0-12.0
	18	2-6C	41/0.16	0.76	2.8	8.9-11.4	1.14	11.18-15.0
	16	2-6C	26/0.254, 65/0.16	0.76	3.1	11.5-14.0	1.52	14.54-20.0
	16	2-6C	26/0.254, 65/0.16	0.76	3.1	14.1-22.9	2.03	18.16-30.0
	14	2-6C	41/0.254	0.76	3.4	23.0-31.7	2.41	27.82-40.0
	14	2-6C	41/0.254	0.76	3.4	31.8-38.1	2.79	37.38-45.0
	12	2-6C	65/0.254	0.76	3.9	38.2-50.8	3.17	44.54-60.0
EVE EVT(600V)	18	2C or more	41/0.16	0.76	2.8	0-12.7	2.03	0-20.0
	16	2C or more	36/0.254,65/0.16	0.76	3.1	12.8-19.1	2.41	17.62-25.0
	14	2C or more	41/0.254	1.14	4.3	19.2-25.4	2.79	24.78-35.0
	12	2C or more	65/0.254	1.14	4.7	25.5-38.1	3.17	31.84-46.0
	10	2C or more	105/0.254	1.14	5.7	38.2-50.8	3.56	45.32-60.0
	8	2C or more	133/0.29	1.52	7.4	19.1-25.4	3.56	26.22-35.0
	8	2C or more	133/0.29	1.52	7.4	25.5-31.7	3.94	33.38-45.0
	6	2C or more	133/0.36	1.52	8.5	31.8-38.1	4.32	40.44-50.0
	6	2C or more	133/0.36	1.52	8.5	38.2-44.4	4.83	47.86-55.0

Application: connection wire between EV charging equipment and EV, like varity of EV, charging station, charging pile.
Application standard: UL62
Product character:
Cable flexible and easily install, good resistant oil, pressure, abrasion and -40ºC low temperature.
Product structure:
Tinned or bare stranded copper conductor.
TPE or PVC insulation
Tinned copper braid shielding
PVC or TPE jacket
Technical Parameter:
Rated temperature: 80ºC-105ºC
Rated Voltage: 300V(EVJE, EVJT)
600V (EVE,EVT)
