Hydraulic Cold Pressing Equipment 3000×1250mm Plywood Pressing Machine Customizable

Categories	Cold Press Machine
Brand Name:	Henrriet
Model Number:	HLY-50T
Certification:	CE
Place of Origin:	China
MOQ:	1
Price:	Online/offline communication
Payment Terms:	T/T,MoneyGram
Delivery Time:	10-15Work days
Packaging Details:	Film with Foam
Name:	Cold Pressing Equipment
Work plate size:	3500*1250mm
Max pressure:	50T
Slide Stroke:	1000mm/1300mm/1500mm
Power:	5.5Kw
Oil Cylinder size:	125*3pcs
Warranty:	1 Year
Weight:	2700Kg

Contact Now

Add to Cart

Company Info.

Foshan Henglihao Machinery Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

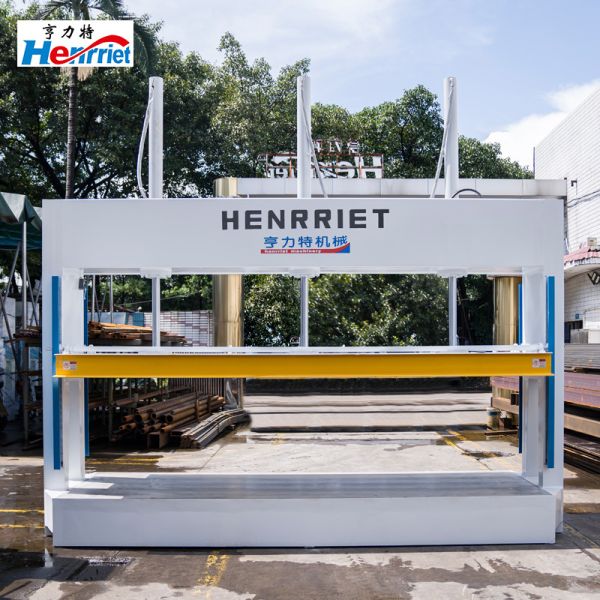

Hydraulic Cold Pressing Equipment 3000×1250mm Plywood Pressing Machine Customizable

3000 × 1250mm 50T hydraulic cold pressing equipment for shaping plywood composite boards

Product Description:

The hydraulic cold press is an industrial-grade machine that utilizes a hydraulic power system to apply consistent pressure through oil transmission, effectively bonding sheets or workpieces. It is extensively employed in furniture manufacturing, wooden door production, sheet metal pressing, metal forming, and various other industrial applications. Key benefits include stable pressure output, user-friendly operation, high efficiency, and compatibility with workpieces of diverse dimensions.

The functional advantages of the machine

Hydraulic transmission ensures continuous and stable pressure, maintained within ±1% tolerance, guaranteeing uniform lamination quality.The servo drive system achieves fast lifting and lowering of 350mm/s, with a rated power of only 5.5-6kW, reducing energy consumption by more than 30% compared to traditional equipment; Fully automatic travel control+dual pressure holding technology, one person on duty can operate, reducing labor costs by 60%.

Enhanced Safety & Reliability
Integrated automatic overpressure control and oil shut-off protection prevent motor overload and damage.
Multi-layered electrical safeguards and an emergency stop button ensure operator and equipment safety.

Broad Compatibility
Adjustable positioning mechanism accommodates various workpiece sizes. Suitable for furniture panels, wooden doors, aluminum-plastic composites, and multi-layer boards.
Modular design allows for quick mold changes, supporting both high-volume and small-batch production.

Low Maintenance & High Uptime
Sealed hydraulic system minimizes leakage risks; hydraulic oil requires only annual replacement.
Automatic fault alerts and one-touch reset functions reduce downtime and enhance operational efficiency.

Machine parameters

Maximum Pressure	50 T (customizable)
Worktable Sizes	3500mm*1250mm (customizable)
Maximum Processing Thickness	1000mm, 1300mm, 1500mm
Power supply	380V/50Hz, three-phase
Power	5.5kW (customizable)
Dwell time	0-99.99 hours (Adjustable)
Platen lift speed	10-12mm/s
Pressure accuracy	±1% (ISO-compliant)
Size	1900mm × 1250mm × 2550mm
Weight	2700KG

Service Support

Warranty: 1 year

Packaging: Film with foam

24-hour customer service hotline, respond to repair needs within 48 hours.

Free video training for operators and provision of process guidance manuals.

Lifetime technical support and software upgrade services.
