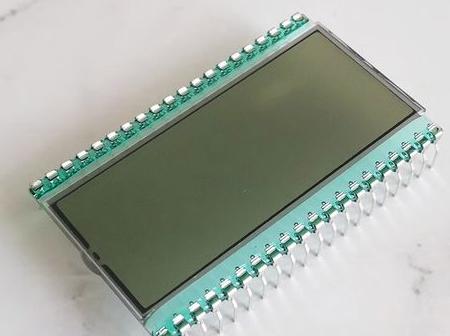

TN Positive Reflective Monochrome Black Digits Custom Segment LCD Display
Detail Information
| LCD Type: | TN, Positive |
| Viewing Angle: | 6 O'clock |
| Operating Temperature: | -30~+70℃ |
| Connector: | PIN, 16 Numbers |
| Voltage: | 3.0V |
Product Description
A TN reflective LCD is a Twisted Nematic display that uses a reflective layer instead of a backlight, making it highly power-efficient and sunlight-readable. These displays work best in bright environments, using ambient light to make the screen visible.
Detailed Parameters:
| NO. | ITEM | SPECIFICATIONS |
| 1 | Model Number | BBI256T |
| 2 | LCD Type | TN positive, reflective |
| 3 | Viewing Angle | 6 O'clock |
| 4 | Drive Method | 1/8 Duty, 1/4 Bias, 3.0V |
| 5 | Operating Temperature | -30~+70℃ |
| 6 | Storage Temperature | -40~+80℃ |
| 7 | Connector | PIN, 16 numbers |
| 8 | LED Backlight | Without |
| 9 | Outline Dimension | 34.0(W)* 26.0(H)* 2.8(T) mm |
| 10 | LCD View Area | 31(W)* 19(H) mm |
|
