| Categories | Low Speed High Torque Hydraulic Motor |
|---|---|
| Brand Name: | HANJIU |
| Model Number: | BMM |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 50 Pieces |
| Price: | Negotiable |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,Payple |
| Supply Ability: | 70000 pieces per year |
| Delivery Time: | 10 - 15 work days |
| Packaging Details: | 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP |
| Type: | Gerotor Hydraulic Motor |
| max torque: | cont.25n.m/int35n.m |
| max speed: | cont814rpm/int.1000rpm |
| material: | cast iron |
| max flow: | cont.20l/min int.25l/min |
| max.output: | cont.2.4kw/int.3.2kw |
| Company Info. |
| Shijiazhuang Hanjiu Technology Co.,Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

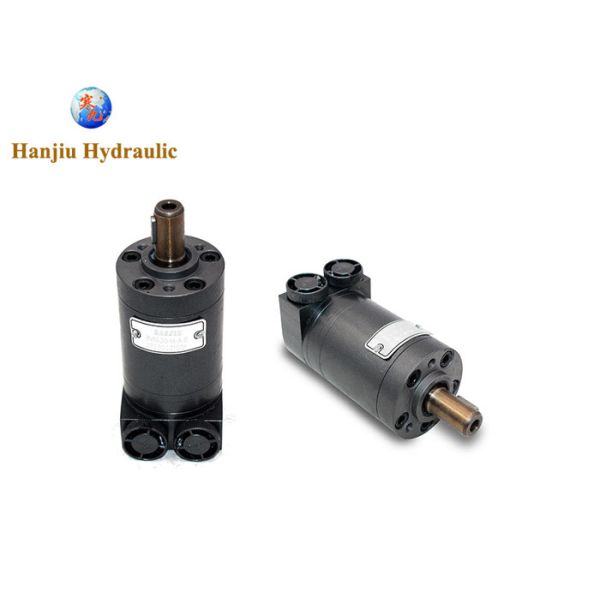

Product Details:
Brand:Hanjiu
type:OMM20/BMM20
shaft:key shaft
ports:side ports
or end ports
Main Specifications:
| type | BMM8 | BMM12 | BMM20 | BMM32 | BMM40 | BMM50 | |
| displacement | 8.2 | 12.9 | 19.9 | 31.6 | 39.8 | 50.3 | |
| Max speed(rpm) | rated | 1537 | 1256 | 814 | 513 | 452 | 358 |
| Cont. | 1950 | 1550 | 1000 | 630 | 500 | 400 | |
| int. | 2450 | 1940 | 1250 | 800 | 630 | 500 | |
| Max Torque (N*M) | rated | 8 | 13 | 19 | 31 | 37 | 33 |
| Cont. | 11 | 16 | 25 | 40 | 45 | 46 | |
| int. | 15 | 23 | 35 | 57 | 70 | 88 | |
| peak | 21 | 33 | 51 | 64 | 82 | 100 | |
| Max speed (kw) | rated | 1.3 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 |
| Cont. | 1.8 | 2.4 | 2.4 | 2.4 | 2.2 | 1.8 | |
| int. | 2.6 | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | |
| Max pressure drop(MPa) | rated | 9 | 9 | 9 | 9 | 8.5 | 6 |
| Cont. | 10 | 10 | 10 | 10 | 9 | 7 | |
| int. | 14 | 14 | 14 | 14 | 14 | 14 | |
| peak | 20 | 20 | 20 | 16 | 16 | 16 | |
| Max flow(L/min) | rated | 14 | 18 | 18 | 18 | 20 | 20 |
| Cont. | 18 | 20 | 20 | 20 | 20 | 20 | |
| int. | 20 | 25 | 25 | 25 | 25 | 25 | |
| Weight(kg) | 1.9 | 2 | 2.1 | 2.2 | 2.3 | 2.4 | |
| Type | Max.inlet pressure | |
| BMM8-50 | Cont. | 17.5 |
| (Mpa) | Int. | 22.5 |

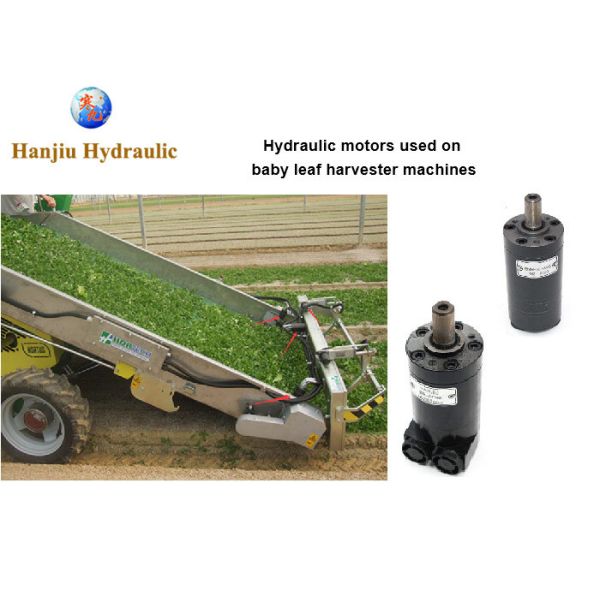

HANJIU Technology designs and produces hydraulic orbit motors for
soil preparation, transplanting and harvest of vegetables.
It has a almost 20 – year experience in the hydraulic products
field and it aspires to constantly renew, always taking new
challenges and developing new markets.
Today it is present at more than 60 countries. The innovation technology is the company main goal: it has been always concentrating in the research of new high quality, innovative and eco-friendly products, able to assure a relevant reliability. Hanjiu technology always invests part of its resources in projects of R&D. The attention and support to the client is really relevant. The specialized and skilled workforce always guarantees a prompt and excellent after sale service.

|
