ProCal Stationary Energy Meter Test Bench

Categories Stationary Meter Test Equipment
Brand Name: GENY
Model Number: YC1893D
Certification: ISO, CE
Place of Origin: CHINA
MOQ: 1PCS
Price: negotiation
Payment Terms: L/C,T/T,D/P
Supply Ability: 30pcs per month
Delivery Time: 30 days after order confirmed
Packaging Details: plywood case
Test voltage output (Phase-Neutral): 3× (24V – 500V) or customized
Test current output: 3× (1mA – 120A)
Resolution: Better than 0.01% of full scale value of range
Setting accuracy: Better than 0.05% at the final range value
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

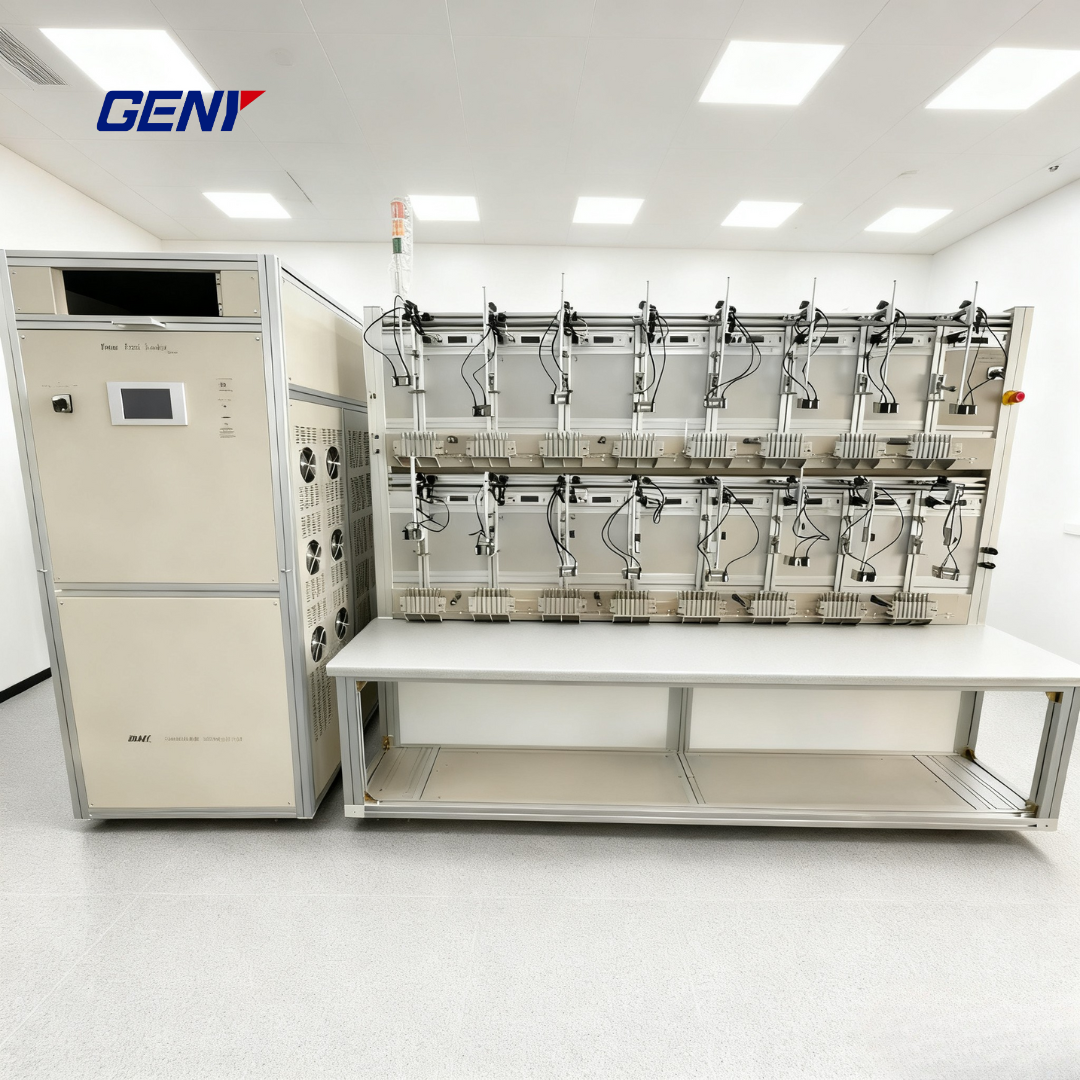

ProCal Stationary Energy Meter Test Bench

ProCal Stationary Energy Meter Test Bench


GENY Electric, a national high-tech enterprise established in 2002, focuses on the field of high-precision electric energy testing, owns 18 patents, including 8 invention patents, and is a Guangzhou contract-abiding and trustworthy enterprise and a taxpayer with A-level tax credit. The company's main products include single-phase electric energy meter verification device, three-phase electric energy meter verification device, standard power electric energy meter, portable verification instrument, etc., which are widely used in electric power, railway, medical, water treatment and other industries.

Tests Supported


  • Accuracy / Error Testing (Active, Reactive, Apparent)

  • Starting Current Test

  • No‑Load / Creeping Test

  • Dial / Register Test

  • Repeatability / Stability Test

  • Influence Quantity Testing: voltage variation, frequency change, phase-sequence reversal, voltage unbalance

  • Harmonic Influence (programmable 2nd–21st) and Sub-harmonic Effects

  • Tamper / Fraud Simulation

  • Pre‑warming and Conditioning


Operating Modes


  • Manual Mode: Full operator control for parameter tuning and custom tests

  • Automatic Mode: Predefined test plans with automatic execution, data logging, and report generation

Components of the Test Bench


  • Three-Phase Voltage Source: 24–500 V per phase, high accuracy, programmable harmonics

  • Three-Phase Current Source: 1 mA–120 A per phase, high resolution and stable output

  • Reference Standard Meter: High-precision standard with ±0.02% accuracy for reliable calibration

  • Meter Rack / Suspension System: Configurable positions for single-phase and three-phase meters, optional scanning heads or pulse detection

  • Control System & Software: Windows-based PC, automated test sequencing, database storage, result search, and report generation

  • Optional Accessories: Isolating current transformers, additional meter positions, extended harmonics module, communication interfaces
