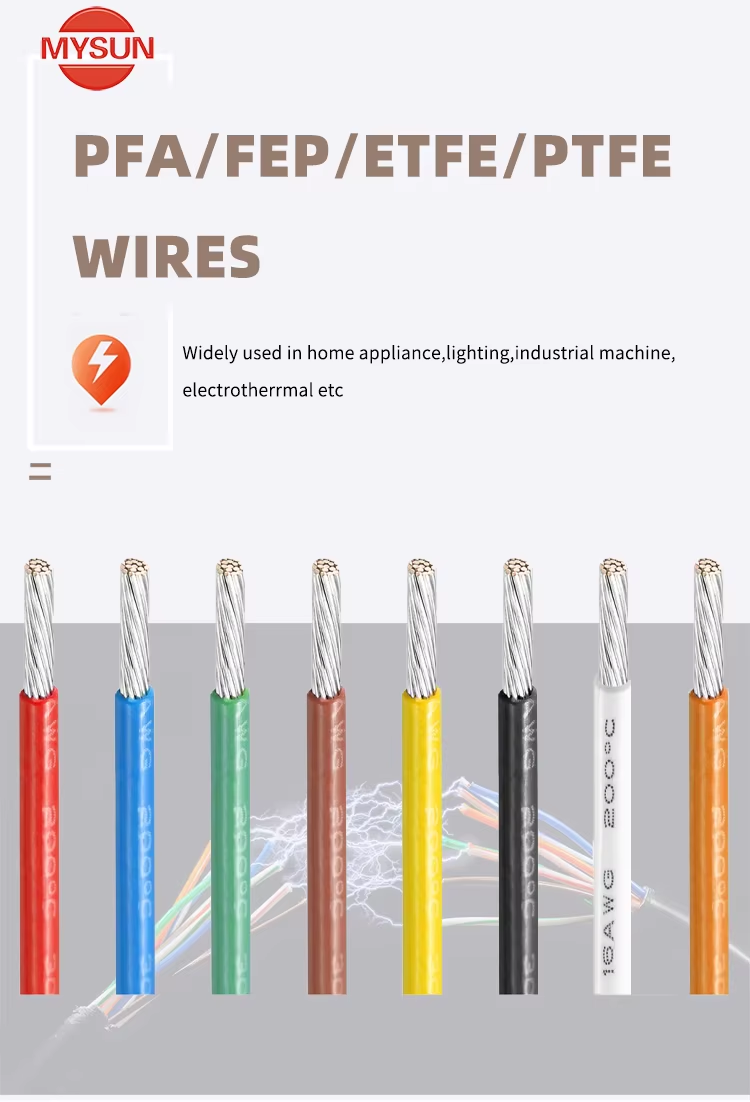

Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications

Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications

Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications
Categories PFA Insulated Wire
Model Number: V048486 CQC20011252316 E(z)-200/TX/FEP
Brand Name: MYSUN
Place of Origin: Guangdong, China
MOQ: 3050
Conductor Material: Tinned Copper
Diameter: 0.051mm2, 0.08mm2, 0.13mm2, 0.21mm2, 0.32mm2, 0.40mm2, 0.52mm2, 0.75mm2, 0.82mm2, 1.00mm2, 1.31mm2, 1.50mm2, 2.08mm2, 2.50mm2, 3.31mm2, 4.00mm2, 5.26mm2, 6.00mm2, 8.37mm2, 10mm2, 13.30mm2, 16.00mm2
Insulation Material: FEP
Rated Voltage: 300 V
Conductor Type: Solid
Shape: Round
Temperature Range: 150C, 200℃
Type: Insulated
Unit Length: 305/1000
Max Conductor Resistance: 381 Ω/KM, 239 Ω/KM, 150 Ω/KM, 94.2 Ω/KM, 59.4 Ω/KM, 46.6 Ω/KM, 37.4 Ω/KM, 24.8 Ω/KM, 23.5 Ω/KM, 18.7 Ω/KM, 14.7 Ω/KM, 12.5 Ω/KM, 9.22 Ω/KM, 7.47 Ω/KM, 5.75 Ω/KM, 4.68 Ω/KM, 3.62 Ω/KM, 3.12 Ω/KM, 2.23 Ω/KM, 1.87 Ω/KM, 1.41 Ω/KM, 1.17 Ω/KM
Nominal Thickness: 0.230mm, 0.380mm, 0.510mm
Insulation Diameter: 0.80mm, 0.85mm, 0.95mm, 1.10mm, 1.20mm, 1.35mm, 1.50mm, 1.60mm, 1.95mm, 2.15mm, 2.30mm, 2.40mm, 2.70mm, 2.90mm, 3.20mm, 3.50mm, 3.80mm, 4.00mm, 4.95mm, 5.35mm, 6.25mm, 6.65mm
Conductor Diameter: 0.30mm, 0.38mm, 0.48mm, 0.60mm, 0.78mm, 0.85mm, 0.96mm, 1.12mm, 1.17mm, 1.35mm, 1.52mm, 1.60mm, 1.89mm, 2.08mm, 2.39mm, 2.70mm, 3.00mm, 3.25mm, 3.90mm, 4.30mm, 5.20mm, 5.60mm
Construction: 7/0.10, 7/0.127, 7/0.16, 19/0.12, 19/0.15, 19/0.17, 19/0.19, 19/0.225, 19/0.235, 19/0.26, 19/0.30, 19/0.32, 19/0.375, 19/0.41, 19/0.475, 19/0.52, 19/0.60, 19/0.64, 68/0.40, 37/0.59, 133/0.36, 133/0.393
Contact Now
Company Info.
Shenzhen Mysun Insulation Materials Co., Ltd.
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Flame Retardant FEP Wire with Nickel Plated Copper for UAV Robot Generator and High-Temperature Applications

Specification
V048486 CQC20011252316 E(z)-200/TX/FEP Wire
UL1330
Conductor


Insulation

Max.Cond Resistance（Ω/KM）
Unit length
（M）（Ft）
Size
（AWG）
Construction
（No.mm）
Diameter（mm）
Nominal thickness
（mm）
Diameter（mm）


0.051
7/0.10
0.30
0.230
0.80
381
610/2000
0.08
7/0.127
0.38
0.230
0.85
239
610/2000
0.13
7/0.16
0.48
0.230
0.95
150
305/1000
0.21
19/0.12
0.60
0.230
1.10
94.2
305/1000
0.32
19/0.15
0.78
0.230
1.20
59.4
305/1000
0.40
19/0.17
0.85
0.230
1.35
46.6
305/1000
0.52
19/0.19
0.96
0.230
1.50
37.4
305/1000
0.75
19/0.225
1.12
0.230
1.60
24.8
305/1000
0.82
19/0.235
1.17
0.380
1.95
23.5
305/1000
1.00
19/0.26
1.35
0.380
2.15
18.7
305/1000
1.31
19/0.30
1.52
0.380
2.30
14.7
305/1000
1.50
19/0.32
1.60
0.380
2.40
12.5
305/1000
2.08
19/0.375
1.89
0.380
2.70
9.22
305/1000
2.50
19/0.41
2.08
0.380
2.90
7.47
305/1000
3.31
19/0.475
2.39
0.380
3.20
5.75
100/328
4.00
19/0.52
2.70
0.380
3.50
4.68
100/328
5.26
19/0.60
3.00
0.380
3.80
3.62
100/328
6.00
19/0.64
3.25
0.380
4.00
3.12
100/328
8.37
68/0.40
3.90
0.510
4.95
2.23
100/328
10.00
37/0.59
4.30
0.510
5.35
1.87
100/328
13.30
133/0.36
5.20
0.510
6.25
1.41
100/328
16.00
133/0.393
5.60
0.510
6.65
1.17
100/328
Click Contact us Get the Best Quote
Company profile
Our Products
Application
Our Overseas Clients
Exhibition
Certifications
FAQ
1. Who Are We? We Are A Professional Manufacturer Of High-temperature Wires And Cables With 26 Years Of Electric Wire Experience. Our Headquarter Is Located In Shenzhen, Guangdong, China, And Our Two Production Bases Are Located In Dongguan, Guangdong, China And Jingzhou, Hubei, China. 2. What Can We Provide? We Can Provide High-temperature Wires And Cables, Silicone Tubing – Including Silicone Rubber Wire, XLPE, FEP/PFA/ETFE/PTFE Wire, New Energy Cable, Wiring Harnesses. 3. Why Choose Us? A.Free Sample. B.Competitive Price. C.High Quality Standard. D.Customized Service. 4. What Certifications Do We Have？ We Have UL, cUL, VDE, Reach, CE, ROHS, CCC, CQC Certification. 5.What Services Can We Provide? Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU: Accepted Payment Currency: USD, EUR, CNY. Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
