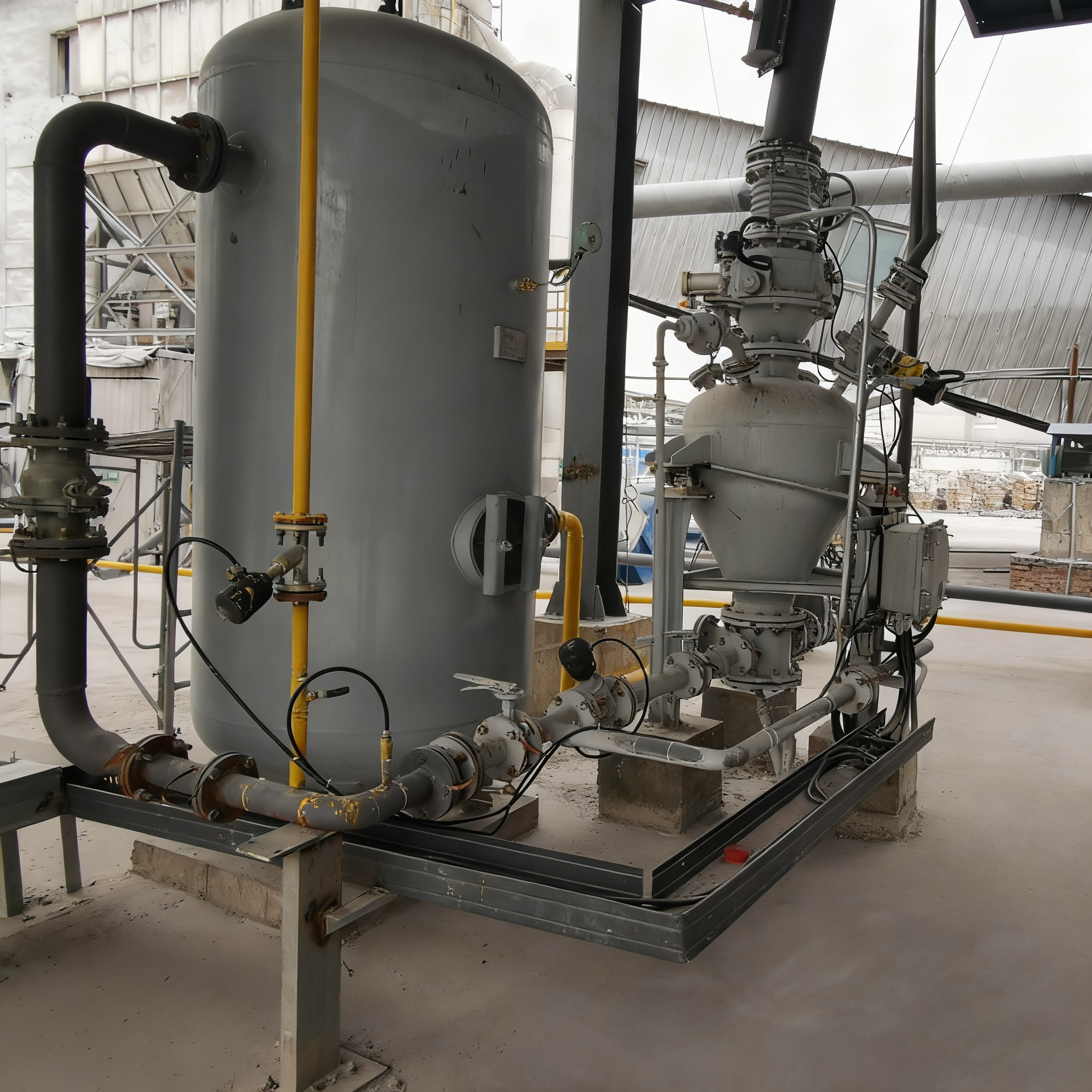

Dense Phase Pneumatic Conveying Bin Pump - Industrial Material Handling Equipment

Categories Pneumatic Conveying Pump
Brand Name: Hengcheng
Model Number: PCD24/H PCD26/H PCD28/H PCD30/H
Certification: ISO CE
Place of Origin: China,Hefei
MOQ: 1 set
Price: Negotiable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 5 sets\month
Delivery Time: 90 days
Packaging Details: Standard shipping packaging
Name: Cone pump
Type: PCD
Vessel Material: Standard carbon steel, optional stainless steel, supports customized anti-corrosion coating
Air - Material Ratio: ≥ 30kg (ash)/Kg (gas)
Performance: Dense Phase Positive Pressure Conveying
Applications: Power plant fly ash, cement, raw materials, mineral powder, etc
Transport medium: powder
Application: Power plant fly ash, metallurgy, mining, chemical industry, etc
Purpose: Transporting powdered materials
Valve Configuration: The feed valve uses a conical valve, and the discharge valve uses a wear-resistant ball valve or dome valve, including an exhaust valve/pressure relief valve
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Dense Phase Pneumatic Conveying Bin Pump - Industrial Material Handling Equipment

Dense Phase Pneumatic Conveying Vessel Pump: Tailored for High-Precision Material Handling

Product Overview

Engineered with industry-specific demands in mind, our Dense Phase Pneumatic Conveying Vessel Pump delivers gentle, high-capacity powder transfer—optimized for minimal air consumption and zero material degradation. It’s the go-to solution for sectors requiring strict process control:✔ Cement Plants: Effortlessly handles cement, raw meal, and fly ash with anti-caking design✔ Power Stations: Specialized for fly ash and limestone powder conveying, adapting to boiler operation rhythms✔ Mining & Minerals: Built to transfer silica, alumina, bentonite, and other abrasive powders✔ Food & Pharma: Food-grade compliant for sugar, starch, and powdered additives—meeting GMP standards

Key Advantages Over Mechanical & Dilute Phase Conveyors:

→ 80% lower energy consumption vs dilute phase systems, slashing operational costs→ <0.1% material breakage rate—preserves particle integrity for consistent product quality→ Fully sealed, dust-free system—eliminates contamination risks and meets environmental regulations


Large Capacity Pneumatic Conveying Bin Pump Parameter Table

Conveying MaterialBulk Density (t/)ModelPCD24/HPCD26/HPCD28/HPCD30/HConveying Distance
Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
Pulverized Coal0.5Delivery Volume (t/h)50~8060~9065~11080~13020020
Fly Ash0.7575~12585~13095~160125~19020020
Limestone Powder/Mineral Powder0.880~13090~140100~170130~20020020
Cement/Raw Meal1100~150115~175130~215165~26020020


Long-distance Pneumatic Conveying Bin Pump Parameter Table

Conveying MaterialBulk Density (t/m3)ModelPCD24/LPCD26/LPCD28/LPCD30/LConveying Distance
Specification16~20m318~22m320~27m326~32m3Level (m)Level (m)
Pulverized Coal0.5Delivery Volume (t/h)20~4025~4530~5545~65100025
Fly Ash0.7535~6045~6545~8065~95100025
Limestone Powder/Mineral Powder0.840~6545~7050~8570~100100025
Cement/Raw Meal150~8055~9065~11090~120100025

Conventional Grid Pneumatic Conveying Bin Pump Parameter Table

Conveying MaterialBulk Density(t/)ModelPCD18/NPCD20/NPCD20/NReference Conveying Distance
Specification5.0~6.77.0~10.010.0~15.0m³Level (m)Vertical (m)
Pulverized Coal0.5Delivery Volume (t/h)12~2016~3225~5050030
Fly Ash0.7518~3225~4835~7050
Limestone Powder/Mineral Powder0.820~3526~5138~7550030
Cement/Raw Meal1.024~4232~6548~9550030
Silicon Powder1.228~5040~7555~11550030

Parameter Table Of Small Size Pneumatic Conveying Bunker Pump

MaterialBulk Density(t/)ModelPCD08/MPCD10/MPCD12/MPCD14/MReference Conveying Distance
Specification0.2~0.50.6~1.61.5~2.52.5~5.0Level (m)Vertical (m)
Pulverized Coal0.5Delivery Volume (t/h)0.5~1.81.5~5.55.0~9.08.0~18.010020
Fly Ash0.750.9~2.82.5~8.57.0~14.012.0~27.010020
Limestone Powder/Mineral Powder0.81.0~3.03.0~9.08.0~15.012.0~28.010020
Cement/Raw Meal1.01.2~3.53.5~11.510.0~18.016.0~36.010020
Silicon Powder1.21.5~4.04.5~13.512.0~20.019.0~43.010020

Material Options (Tailored to Material Properties)
▸ Carbon steel (standard choice for general non-corrosive, non-abrasive materials)▸ 304/316L stainless steel (optimized for corrosive materials like chemicals, food, or pharmaceuticals)▸ Ceramic-lined (specialized for highly abrasive materials—minimizes wear and extends service life)


Why Choose Our System?
Superior Reliability Backed by Innovation
• Patented pressure vessel structure – delivers 20% longer service life than industry counterparts
• Intelligent auto pressure regulation – ensures consistent material flow without pulsation or blockages
Intuitive & Connected Smart Operation
• PLC + touchscreen control panel – pre-storable recipes for quick switching between different materials
• 24/7 remote monitoring – real-time performance tracking and data analysis via mobile app or PC platform
Compliant & Trusted for ASEAN Markets
• CE & ATEX dual certification – fully meets regional safety and environmental standards
• Localized technical support – tailored to ASEAN industrial requirements and regulations


Streamlined 4-Step Order & Implementation Process
Detailed Consultation – Share your material specifications, throughput, and on-site constraints
Custom Solution Design – Receive personalized drawing layouts, technical proposals, and transparent quotes
Factory Acceptance Test (FAT) – Witness and verify equipment performance before shipment
Comprehensive Installation Support – Choose between on-site guidance or remote debugging assistance
