Euro Hot Dip Galvanized Metal Steel Palisade Fence Panels W Panel

Categories Steel Palisade Fencing
Brand Name: YUANHAI
Model Number: YH-PF
Certification: ISO9001
Place of Origin: CHINA
MOQ: 10Sets
Price: $5.5-13.6/㎡
Payment Terms: T/T,L/C
Supply Ability: 5000Sets Per Month
Delivery Time: 5-8 work days
Packaging Details: Powder Coated Frame Finishing And Fencing Trellis & Gates Type Palisade Fence Water Proof Paper+Pallet.Custom Packaging Is Also Available According To Your Details
Product Name: Steel Palisade Fencing
Key Work: Tubular Fence
Weave Technique: Stamping
Pales: 70mm
Installation Method: concrete fixed
Frame Material: Hot dipped galvanized steel pipe
Pale Thickness: 3.0mm
Application: school
Width: 2.75m
Zinc Coating: 65-80μm
Panel Sizes: 2.35mx2.75m
Advantage: brightly
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Euro Hot Dip Galvanized Metal Steel Palisade Fence Panels W Panel

Euro Hot Dip Galvanized Metal Steel Palisade Fence Panels W Panel

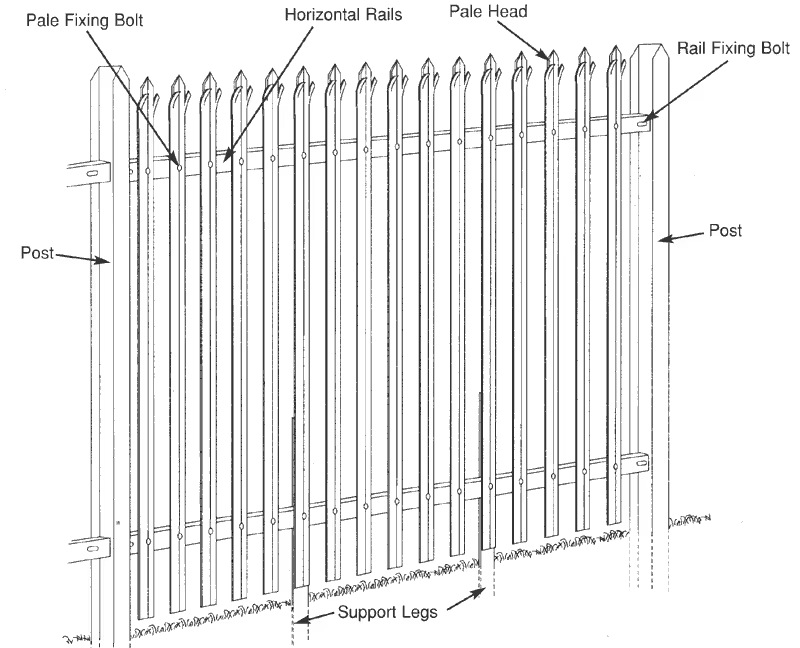

Steel Palisade Fence Description

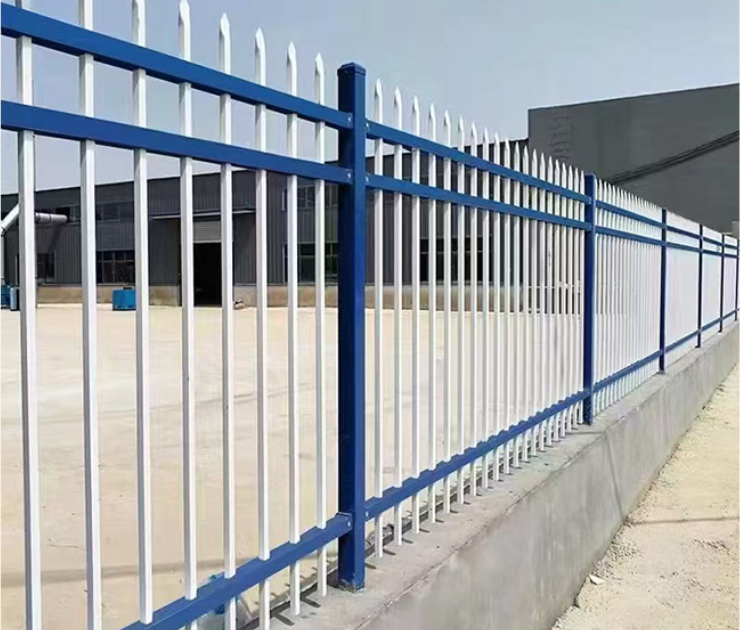

Tubular Fence is also known as picket welded fence, ornamental fence, steel security fence.
The panels are manufactured using the highest-strength steel pickets and rails, and are available in a wide range of sizes and styles.
Panels are attached with high-strength steel brackets to galvanized and powder-coated square tubular steel posts.
The fence is easy to handle and install, so it is widely used in gardens, schools, factories, pools, residential, industrial and commercial security projects.


Steel Palisade Fence Specifications


Fence panel height
1m-6m
Fence panel width
1m-3m
Pale height
0.5m-6m
Pale width
W pale 65-75mm d pale 65-70mm
Pale thickness
1.5-3.0mm
Angle rail
40mmx40mm 50mmx50mm 63mmx63mm
Angle rail thickness
3mm-6mm
RSJ post
100mmx55mm 100mmx68mm 150mmx75mm
Square post
50mmx50mm 60mmx60mm 75mmx75mm 80mmx80mm
Square post thickness
1.5mm-4.0mm
Straight fishplates or post clamps
30mmx150mmx7mm 40mmx180mmx7mm
Bolts and nuts
M8XNo.34 for pale fixing M12xNo.4 for rail fixing

Steel Palisade Fence Pales-"W" section



Most useful vertical type of pales for palisade fencing, which is always the customers' first choice for pales.



Width
Thickness
Surface Treatment
Head
Height
68mm-70mm
2.0mm
Galvanized and electrostatic polyester coated
or Hot dipped galvanized
Single point
Triple point
1200mm-3000mm
2.5mm
3.0mm



Steel Palisade Fence Pales-"D" section


Compared with "W" profile pales, "D" profile is more economical.


Width



Thickness



Surface Treatment



Head



Height



60mm



2.0mm



Galvanized and electrostatic polyester coated
or Hot dipped galvanized



Single point
Triple point



1200mm-3000mm



2.5mm



3.0mm



Steel Palisade Fence Pale-Angle iron


Its cost is similar with "D" profile, but its structure is simpler than "D" profile.


Width
Thickness
Surface Treatment
Head
Height
40*40
2.0mm
3.0mm
Galvanized and electrostatic polyester coated or Hot dipped galvanized
Single point
Triple point
1200mm-3000mm


Steel Palisade Fence Application


Steel fence: All of the fence panels, posts, mounting hardware and gates are dipped in electracoat rust inhibitor after final assembly to prevent corrosion and are then powder coated for a premium finished product. Standard fences are in stock and shipping is more affordable than you think! wrought iron fencing systems will not only beef up the security of your residential or commercial property but will improve the appearance as well.

Palisade fences are used in highways, railways, utilities, commercial and industrial sites, airports, docks, waste recycling centers, schools, sports fields and leisure facilities.
