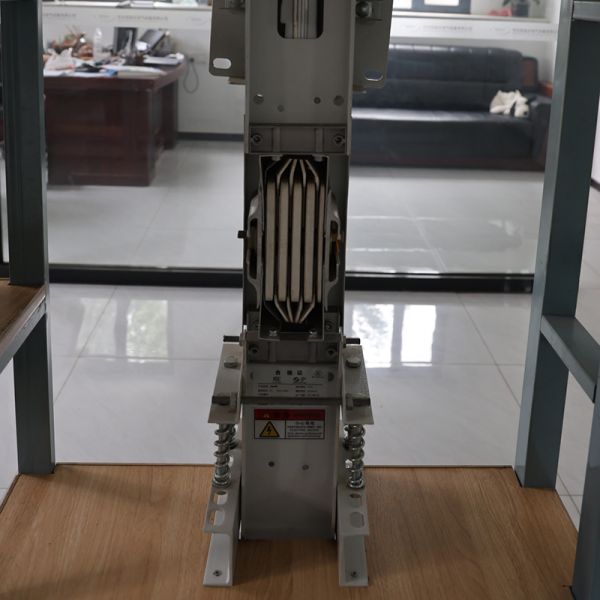

Closed Compact Electrical Copper Aluminum Busway & Cable System Bus Duct Trunking System

Closed Compact Electrical Copper Aluminum Busway & Cable System Bus Duct Trunking System

Closed Compact Electrical Copper Aluminum Busway & Cable System Bus Duct Trunking System
Closed Compact Electrical Copper Aluminum Busway & Cable System Bus Duct Trunking System
Categories Busway System
Certification: ISO9001
Place of Origin: Langfang, Hebei, China
Rated Current: 200 - 6300 A
Material: Aluminum, copper
Application: Outdoor, Industrial, Electric Power Transmission
Surface treatment: Housing aluminum alloy/conductor TMY copper
Conductor material: Copper or aluminum
Frequency: 50-60Hz
Degree of protection: IP54/IP66
Rated Voltage: 690 V, 1000V
Working Temperature: -40℃~+80℃
Type: Power Busways
Rated frequency: 50Hz--60Hz
Brand Name: BZIDA
MOQ: 50 meters
Packaging Details: Export standard compliant
Delivery Time: 30 days
Payment Terms: 30% prepayment, full payment upon delivery
Supply Ability: 3000 meters per month
Contact Now
Company Info.
Hebei Baizida Electrical Equipment Co., Ltd
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Closed Compact Electrical Copper Aluminum Busway & Cable System Bus Duct Trunking System

Compact Electrical Copper Aluminum Busway & Cable System Bus Duct & Busbar Trunking Premium Quality Busway

Product Description:

Closed busbar duct is a busbar system composed of metal plates (steel plates or aluminum plates) as protective shells, conductive bars, insulation materials, and related accessories. It can be made into a plug-in type enclosed bus duct with plug-in junction boxes at regular intervals, or a feeding type enclosed bus duct without a junction box in the middle. In the power supply system of high-rise buildings, the power and lighting lines are often set separately, and the bus duct is installed vertically along the wall in the electrical shaft as the main power supply line.

Features:

1. Bus ducts use copper or aluminum as conductors, which have extremely high conductivity and can efficiently transmit large currents, meeting the needs of large-scale power transmission.

2. The bus duct is protected by a metal shell, which has good mechanical strength and electromagnetic shielding performance. At the same time, the internal conductors are wrapped with high-quality insulation materials, effectively preventing safety hazards such as short circuits and leakage.

3. The bus duct adopts modular design, which is easy to install, disassemble and expand. Its connection method is flexible and versatile, and can be customized and adjusted according to actual needs.

4. The bus duct has a compact structure and small volume, which can provide higher transmission capacity in limited space. Greatly saving installation space and reducing the cost of electrical engineering.

5. The maintenance of bus ducts is relatively simple and convenient. The connection part adopts bolt fastening or plug-in design, which is easy to disassemble and replace.

Technical Parameters:

Implementation Standard
IEC/EN 60 439-6, GB7251.1
System
Three-phase three-wire, Three-phase four-wire, Three-phase five-wire (with separate PE busbar), Three-phase five-wire (with casing
as PE)
Ambient Temperature
-25/+40/+35 (Outdoor Type -40/+40/+35)
Altitude
≤2000m
Relative Humidity
No more than 50% at a maximum temperature of 40℃,
and no more than 90% at 20℃.
Ingress Protection (IP) Rating
IP54, IP66, IP68
Rated Insulation Voltage (Ui)
AC/ DC 1000V/800V
Rated Operating Voltage (Ue)
AC1000V/690V
Rated Frequency
50/60Hz
Enclosure Material/Surface Treatment
Aluminum Alloy / Powder Coating
Conductor Material
Tin-Plated Copper or/Tin-Plated Copper-Clad Aluminum/Aluminum
Voltage Category / Pollution Degree
III/3
Horizontal Mounting Spacing
≤ 2m

FAQ:

1.Are you a trade company or a manufacturer?

Baizida Electrical Equipment Co., Ltd is a production and sales-oriented enterprise focusing on the production of power equipment, integrating design, research and development, manufacturing and technical services.

2.What are the main products of your company?

Our company specializes in the production and sales of high-quality power equipment, including power distribution equipment, electrical products, generators, charging piles, frequency converters, etc. It is widely used in residential, commercial and industrial fields.

3.How do you ensure the quality of your products?

We strictly adhere to international standards and quality management systems. All products undergo rigorous testing and inspection before leaving the factory. We also offer a product quality guarantee period to ensure that the products you purchase meet your expected performance.

4.Do you offer customization services?

Yes, we can provide customized services according to the specific needs of our customers. Whether it's product specifications, design, or functionality, our technical team can work with you to develop solutions that meet your requirements.

5.Can you print our brand on the product?

Yes, of course, we also do OEM to print client’s brand on the product
