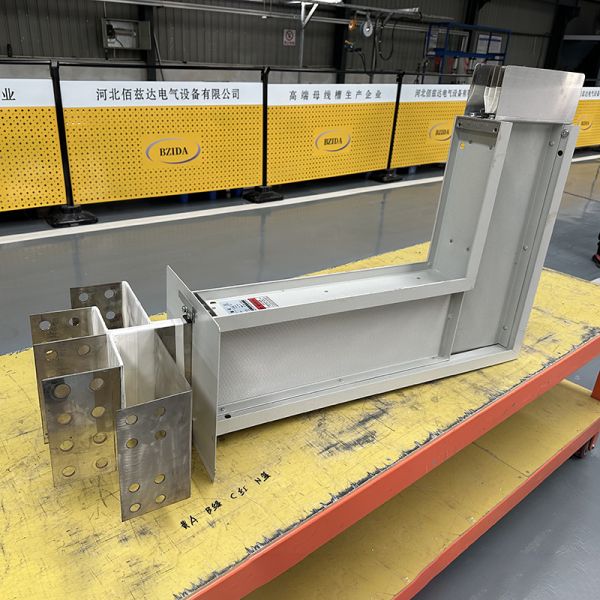

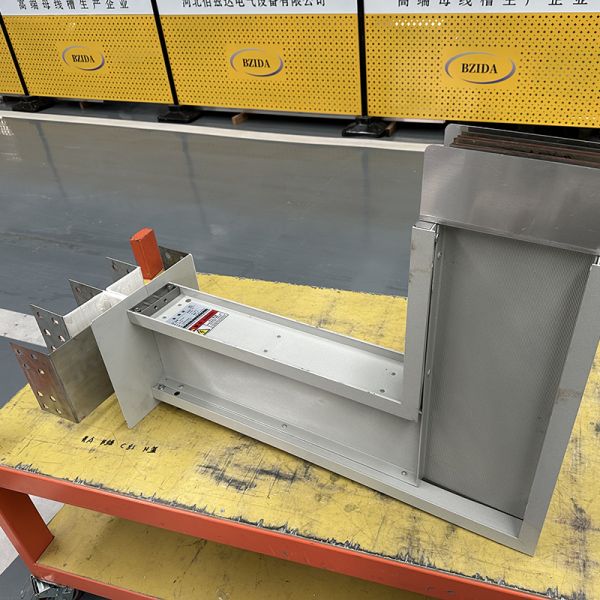

Aluminum Alloy Shell Copper Powerduct Busway Plug In IP54 Air Insulated Bus Duct 160A-5000A

Aluminum Alloy Shell Copper Busbar Air-Insulated Busway Plug-In Connector IP54 Rated 160A-5000A 50-60Hz Product-Type

Product Description:

Dense bus duct is a conductor device used for transporting electrical energy. The core structure is to tightly arrange multiple conductive bars together and directly stack them with insulating materials, ensuring reliable insulation between the conductive bars of each phase and between the conductive bars and the grounding shell. This tightly arranged design results in almost no air gaps inside the bus duct, hence the name "dense type". From the appearance, it is usually a rectangular metal shell that encapsulates insulated conductive bars inside. Compared with traditional cable or air insulated bus ducts, dense bus ducts have smaller volume, higher mechanical strength, and better heat dissipation performance.

Features:

1. The bus duct adopts a rectangular conductor structure and achieves higher current carrying capacity per unit cross-sectional area through optimized cross-sectional design. Compared to traditional cables, its conductor heat dissipation efficiency is improved by more than 30%. At a rated current of 4000A (common specification), the temperature rise is controlled within a reasonable range, effectively reducing electrical energy loss.

2. The enclosure of the bus duct is usually designed with an IP65 protection level, which can completely prevent dust intrusion and low-pressure water jet. It is suitable for humid, dusty or chemically corrosive environments (such as hospital operating rooms and chemical workshops). Its insulation voltage reaches 660V, and with the tin plating process, it further enhances the corrosion resistance of the conductor and extends its service life.

3. The bus duct supports hanging installation method, which achieves fast splicing through standard connectors, and the installation efficiency is increased by more than 50% compared to cable wiring. Its external dimensions and cross-sectional form can be customized according to site requirements, adapting to complex spatial layouts such as data center cabinet arrangement and commercial complex floor power distribution.

Technical Parameters:

FAQ:

Baizda Electrical Equipment Co., Ltd. is located in Hebei Province, an important industrial base in China. We are a modern busbar trunking professional manufacturing enterprise that integrates research and development, production, sales, and service. Since its establishment, we have always focused on technological innovation and quality improvement of busbar trunking systems, committed to providing safe, efficient, and reliable power distribution solutions for global customers.

We are deeply involved in the industry, mainly producing and customizing various types of dense busbar trunking, fireproof and fire-resistant busbar trunking, Cast Resin Busway and air busbar trunking products with stable performance and competitive prices, which are widely used in various power distribution projects. We adhere to the concept of "safety first, quality as the soul", aiming to provide customers with reliable products and high-quality services.

The company relies on the unique geographical advantages and industrial chain resources of Hebei to establish a high standard production base, and has introduced internationally advanced fully automatic production lines, CNC punching machines, bending machines, and a complete set of testing equipment. We strictly follow the ISO9001 international quality management system to ensure excellence in every aspect from raw material procurement to finished product delivery.
