3.0mm Round Indoor/Outdoor Optical Fiber Drop Cable G657A2 LSZH Jacket

Categories	Bulk Fiber Optic Cable
Brand Name:	Unifiber or OEM
Model Number:	FTTx Optical Fiber Cable
Certification:	ROHS
Place of Origin:	CHINA
MOQ:	10
Price:	Negotiable
Payment Terms:	L/C, T/T
Supply Ability:	1000KM/day
Delivery Time:	5~8days
Packaging Details:	Carton
Product:	FTTx Optical Fiber Cable
Cable Diameter:	3.0mm Round
Fiber Type:	G657A2
Jacket:	Lszh
Application:	Fttx

Contact Now

Add to Cart

Company Info.

Shenzhen Unifiber Technology Co.,Ltd

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

3.0mm Round Indoor/Outdoor Optical Fiber Drop Cable G657A2 LSZH Jacket

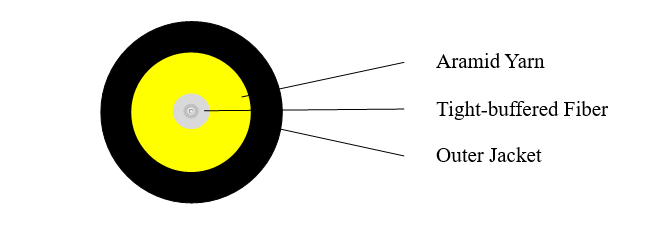

This drop cable made with tight Buffer 900um and wrapped with a layer of aramid yarn as strength member ,then completed with a layer of TPU/LSZH outer sheath, it is widely used for FTTx application

Specification

Item	Technical parameter
Fiber type	9/125 G657A2
Tight buffer color	White (or Depend on customer's request)
Tight buffer diameter (mm)	0.85±0.05
Strength member	Aramid yarns
Jacket color	Black (or Depend on customer's request)
Jacket material	TPU or LSZH
Jacket thickness (mm)	0.7±0.1mm
Cable diameter (mm)	3.0±0.1
Cable weight (kg/km)	7.8±10%
Min. bending radius (mm)	(Static) 10 times of the cable shorter diameter (Dynamic) 20 times of the cable shorter diameter
Attenuation (dB/km)	≤ 0.4 at 1310nm, ≤ 0.3 at 1550nm
Long/Short term tensile (N)	300/500
Long/Short crush resistance (N/100 mm)	200/1000
Operation temperature (ºC)	-20~+70
