| Categories | 3D Printed Linear Rails |
|---|---|
| Brand Name: | HIMIN |
| Model Number: | MGW12H |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 10 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Series: | MGW-Enlarged width type |
| Model Size(mm): | 12mm |
| No. of Blocks per Rail: | 1 |
| Rail Mounting Type: | R- Mounting From Top |
| Rail Length(mm): | Max 2000mm |
| Preload Class: | Z0- Very Light Preload , ZF- Light Clearancer |
| Material: | Std- Carbon Steel , M- Stainless Steel |
| Dust Protection: | SS-standard |
| Y -Symmetrical (E1＝E2) First hole dimension: | Y= Symmetrical （E1=E2) |
| Installation: | Easy |
| Application: | CNC Machines, 3D printer |
| Smoothness: | Smooth |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

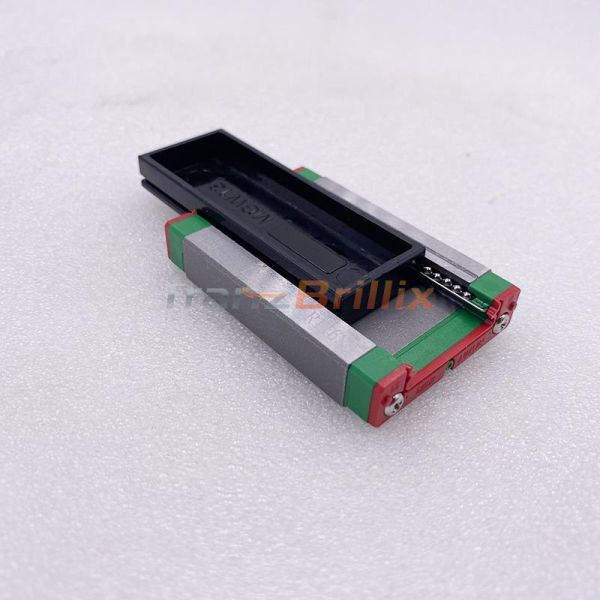

As a proud product of HIWIN's world-class manufacturing in Taiwan, the MGW12H Miniature Linear Guideway sets new benchmarks in precision sliding rail systems for demanding industrial applications. This exceptional motion solution embodies HIWIN's decades of engineering mastery, delivering unparalleled smoothness and reliability in a compact 12mm profile.
The MGW12H incorporates HIWIN's proprietary precision bearing technology, ensuring vibration-free operation that's critical for high-end automation and sensitive manufacturing processes. Its robust construction features HIWIN's signature multi-stage sealing system, offering superior protection against industrial contaminants while maintaining buttery-smooth motion characteristics.
Designed for semiconductor equipment, advanced robotics, and precision instrumentation, this sliding rail system showcases HIWIN's commitment to innovation. The thermal-optimized design ensures consistent performance, while the maintenance-friendly architecture reflects HIWIN's user-centric engineering philosophy.
Trusted by global manufacturers, the MGW12H delivers HIWIN's trademark combination of durability and precision. With immediate availability from our worldwide stock, it's the go-to choice for engineers who demand nothing less than HIWIN quality in their motion control systems.
Note:1.The bottom seal is available for MGN & MGW 9, 12,14.15.
1.Rolling circulation system: Block, rail, ball, end cap and
retainer [except size 2).
2.Lubrication system: Grease nipple is available for MGW14, 15,
lubricated by grease gun.
3.MGW3, 7, 9, 12 are lubricated by the hole at the side of the end
cap.
4.Dust protection system: End seal (except size2), bottom seal
(optional size 9,12,14,15], cap (size12,14,15).
| Model No. | Block length(mm) | Preload classes | Bolt size | Weight(kg) |
| MGW7C | 31.2 | Z0/ZF/Z1 | 4-M3x3 | 0.02 |
| MGW7H | 41 | Z0/ZF/Z1 | 4-M3x3 | 0.029 |
| MGW9C | 39.3 | Z0/ZF/Z1 | 4-M3x3 | 0.04 |
| MGW9H | 50.7 | Z0/ZF/Z1 | 4-M3x3 | 0.057 |
| MGW12C | 46.1 | Z0/ZF/Z1 | 4-M3x3.6 | 0.071 |
| MGW12H | 60.4 | Z0/ZF/Z1 | 4-M3x3.6 | 0.103 |
| MGW15C | 54.8 | Z0/ZF/Z1 | 4-M4x4.2 | 0.143 |
| MGW15H | 73.8 | Z0/ZF/Z1 | 4-M4x4.2 | 0.215 |
|
