| Categories | Ball Screw |
|---|---|
| Brand Name: | TBI |
| Model Number: | SFA1620-1.8 |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 1 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Series: | SFA |
| Diameter: | 16mm |
| Lead(mm）: | 20mm |
| Accuracy Grade: | C3,C5,C7 |
| Overall Length of shaft(mm): | Max 4000mm |
| Preload Grade: | P0 |
| Material: | Screw: S55C Nut: SCM415H Ball: SUJ2 |
| Threading Direction: | right |
| Flange type: | double cutting |
| Proudct code: | F: rolled |
| Application: | delicate application in industrial application, machine tool and automation application |
| Installation: | Easy |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The TBI SFA1620 16mm Ball Screw Support Bearing delivers precision motion control specifically optimized for high-performance 3D printing applications, where consistent layer alignment and smooth axis movement are critical for print quality. This specialized bearing assembly provides the stable rotational support needed for ball screw-driven Z-axis systems in industrial-grade 3D printers, ensuring precise vertical movement during the additive manufacturing process. The bearing's low-friction design minimizes vibration and unwanted resonance that could affect surface finish quality, while its rigid construction maintains precise screw alignment for accurate material deposition. Engineered for the continuous operation demands of professional 3D printing systems, the SFA1620 demonstrates exceptional durability through thousands of printing cycles without performance degradation. The thermal-stable materials resist deformation from the temperature variations common in enclosed printing environments, preventing Z-axis drift during long-duration prints. TBI's precision manufacturing ensures smooth rotation with minimal backlash, contributing to the dimensional accuracy of printed parts across multiple layers. The compact design integrates seamlessly with various 3D printer configurations while providing reliable support for high-torque stepper or servo motors. From rapid prototyping to production-grade additive manufacturing, this support bearing enhances 3D printer performance by delivering the stable, repeatable motion required for complex geometries and fine details, reflecting TBI's commitment to advancing motion control solutions for next-generation manufacturing technologies.

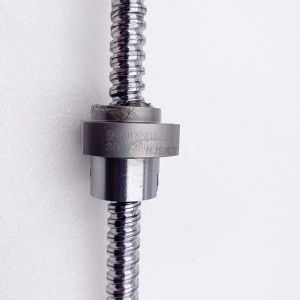

⑥Actual product photo
|
