| Categories | Ball Screw |
|---|---|
| Brand Name: | TBI |

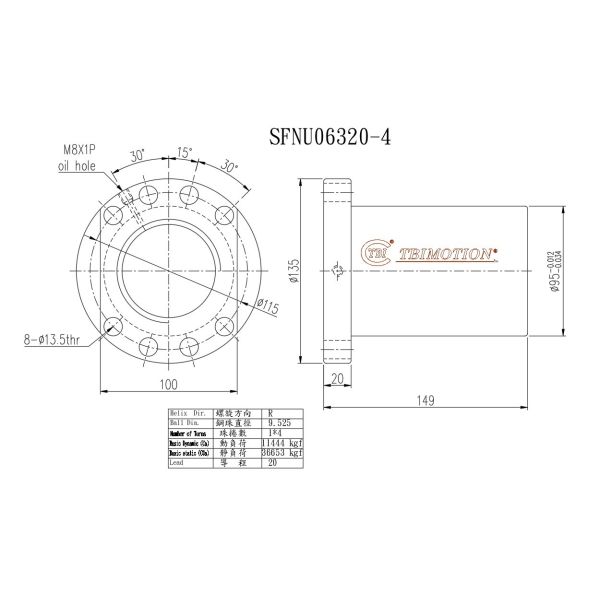

| Model Number: | SFNU06320-4 |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 1 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Series: | SFNU |
| Diameter: | 63mm |
| Lead(mm）: | 20mm |
| Accuracy Grade: | C3,C5,C7 |
| Overall Length of shaft(mm): | Max 4000mm |
| Preload Grade: | P0 |
| Material: | Screw: S55C Nut: SCM415H Ball: SUJ2 |
| Threading Direction: | right |
| Flange type: | double cutting |
| Proudct code: | F: rolled |
| Application: | delicate application in industrial application, machine tool and automation application |
| Installation: | Easy |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The TBI SFNU06320 Ball Screw and Nut assembly delivers precision motion control specifically engineered for hydraulic valve actuator applications where reliability and accuracy are paramount. Designed to operate in demanding fluid power systems, this robust assembly provides the smooth, responsive linear motion required for precise valve positioning in industrial process control, power generation, and offshore equipment. The screw's optimized ball recirculation system ensures consistent performance under the variable loads and pressures characteristic of hydraulic systems, while specialized seals protect internal components from fluid contamination that could compromise operation. Its thermal-stable construction maintains precise positioning accuracy despite temperature fluctuations common in hydraulic applications, preventing drift during critical valve adjustments. The assembly's vibration-damping characteristics prove particularly valuable in high-pressure systems where smooth operation extends component life and reduces maintenance requirements. Engineered for continuous duty cycles, the SFNU06320 withstands the challenging environments of oil and gas applications, water treatment plants, and industrial automation systems where hydraulic actuators perform essential control functions. TBI's expertise in motion technology is evident in this ball screw's ability to translate rotational input into precise linear displacement with minimal backlash, ensuring accurate valve modulation for process optimization. From power plant throttle controls to marine hydraulic systems, this robust assembly provides the dependable performance that keeps critical fluid systems operating at peak efficiency.
⑥Actual product photo
|
