| Categories | Ball Screw |
|---|---|
| Brand Name: | TBI |
| Model Number: | SFNU04010-4 |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 1 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Series: | SFNU |
| Diameter: | 40mm |
| Lead(mm）: | 10mm |
| Accuracy Grade: | C3,C5,C7 |
| Overall Length of shaft(mm): | Max 4000mm |
| Preload Grade: | P0 |
| Material: | Screw: S55C Nut: SCM415H Ball: SUJ2 |
| Threading Direction: | right |
| Flange type: | double cutting |
| Proudct code: | F: rolled |
| Application: | delicate application in industrial application, machine tool and automation application |
| Installation: | Easy |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The TBI SFNU04010 40mm Ball Screw Spline Shaft represents precision engineering excellence from TBI Motion, combining the company's renowned ball screw technology with integrated spline functionality for sophisticated motion control applications. This high-performance component demonstrates TBI's commitment to innovative linear motion solutions, delivering both rotational torque transmission and precise axial movement in a single robust package. Engineered for complex automation systems requiring multi-directional force handling, the SFNU04010 incorporates TBI's specialized manufacturing expertise to ensure smooth operation under combined loads while maintaining positioning accuracy. The precision-ground spline and ball screw surfaces work in harmony to provide reliable performance in demanding industrial environments, from heavy machinery to advanced robotic systems. TBI's attention to detail is evident in the component's balanced design, which optimizes load distribution across both the screw and spline elements for extended service life. The thermal-stable construction maintains consistent performance across operating temperatures, while specialized hardening treatments enhance durability in continuous operation. Designed for applications requiring synchronized rotary and linear motion, this integrated solution reduces system complexity compared to separate components while delivering the precision and reliability expected from TBI products. With its combination of robust construction and refined motion characteristics, the SFNU04010 exemplifies TBI's ability to develop advanced mechanical solutions that address challenging motion control requirements across various industries.

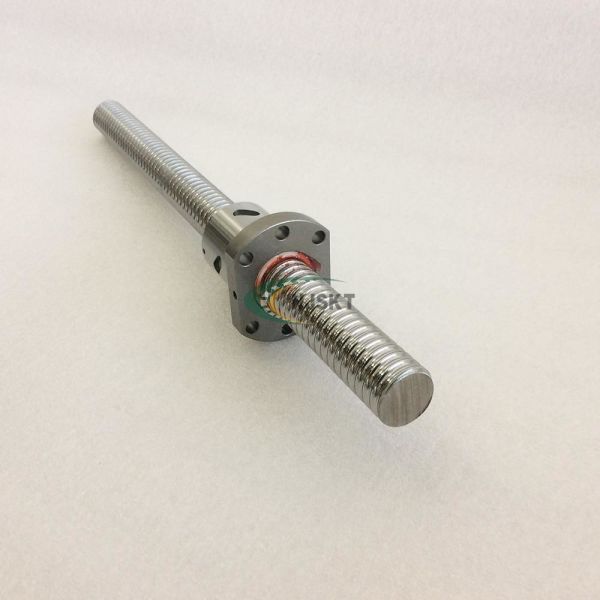

⑥Actual product photo
|
