| Categories | Ball Screw |
|---|---|
| Brand Name: | TBI |
| Model Number: | SFNU08010-4 |
| Certification: | DE1924083895474 |
| Place of Origin: | CHINA TAIWAN |
| MOQ: | 1 |
| Price: | 1-100 USD |
| Payment Terms: | T/T,L/C,D/A,D/P,Western Union |
| Supply Ability: | 100000 pcs / per month |
| Delivery Time: | 1-7 work days |
| Packaging Details: | Small or with carton box, Bulk order with Wooden box |
| Series: | SFNU |
| Diameter: | 80mm |
| Lead(mm）: | 10mm |
| Accuracy Grade: | C3,C5,C7 |
| Overall Length of shaft(mm): | Max 4000mm |
| Preload Grade: | P0 |
| Material: | Screw: S55C Nut: SCM415H Ball: SUJ2 |
| Threading Direction: | right |
| Flange type: | double cutting |
| Proudct code: | F: rolled |
| Application: | delicate application in industrial application, machine tool and automation application |
| Installation: | Easy |
| Company Info. |
| NanJing TranzBrillix Linear Motion Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
The TBI SFNU08010 Ball Screw Coupling represents a premium motion control solution from TBI Motion, designed specifically to enhance the performance of CNC machinery through superior power transmission and precision alignment. This high-capacity ball screw assembly demonstrates TBI's engineering excellence in creating components that bridge the gap between rotational motors and linear motion systems with exceptional efficiency. The SFNU08010 incorporates TBI's proprietary manufacturing techniques to deliver smooth, backlash-free operation critical for maintaining machining accuracy in CNC routers, milling centers, and other precision equipment. Its robust construction handles the demanding torque requirements of modern CNC operations while minimizing vibration transfer that could affect surface finish quality. The precision-ground surfaces and optimized ball circulation ensure consistent performance through millions of cycles, reflecting TBI's commitment to durability in industrial applications. Engineered for easy integration with various CNC configurations, this coupling solution simplifies machine assembly while providing the rigidity needed for heavy cutting operations. TBI's attention to thermal stability prevents performance variations during extended production runs, ensuring dimensional accuracy remains uncompromised. The corrosion-resistant treatments and protective features extend service life in challenging workshop environments. With its combination of high torque capacity and precise motion characteristics, the SFNU08010 exemplifies TBI's ability to develop mechanical components that elevate CNC machine performance while reducing maintenance requirements, making it a trusted choice for equipment manufacturers seeking reliable, long-lasting motion solutions.

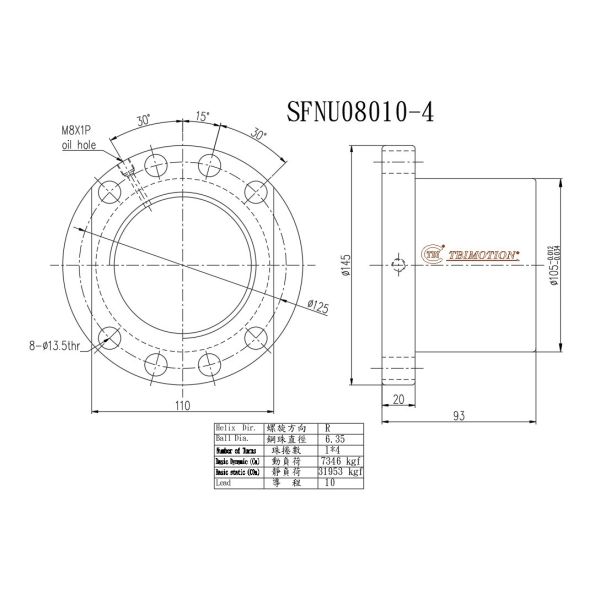

⑥Actual product photo
|
